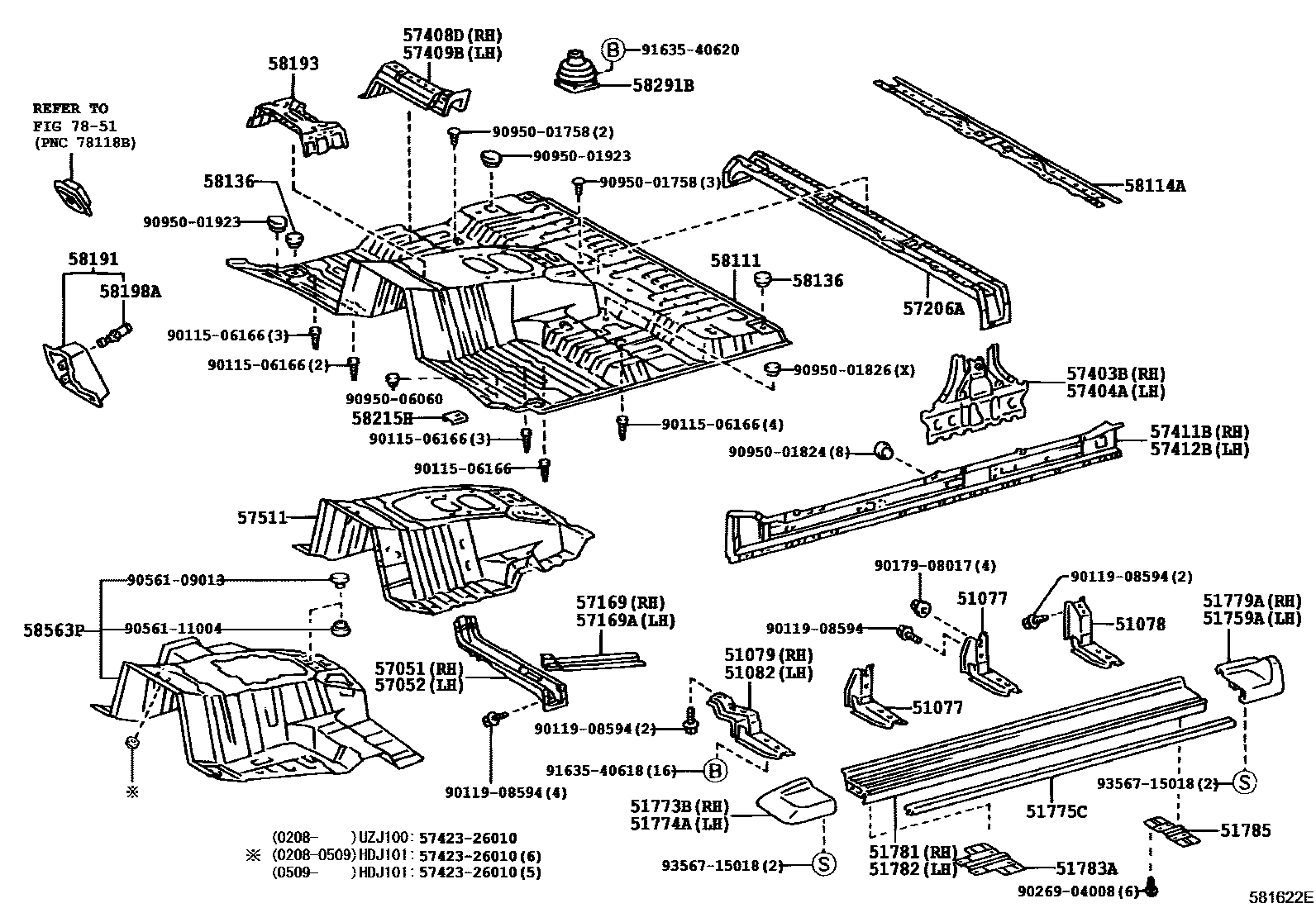

FRONT FLOOR PANEL & FRONT FLOOR MEMBER
51077BRACKET SUB-ASSY, SIDE STEP, NO.2
51078BRACKET SUB-ASSY, SIDE STEP, NO.3
51079BRACKET SUB-ASSY, SIDE STEP
51082STAY SUB-ASSY, SIDE STEP, NO.1 LH
51759ACOVER, SIDE DOOR STEP PLATE, REAR LH
51773BCOVER, SIDE DOOR STEP PLATE, FRONT RH
51774ACOVER, SIDE DOOR STEP PLATE, FRONT LH
51779ACOVER, SIDE DOOR STEP PLATE, REAR RH
51781PANEL, STEP, RH
51782PANEL, STEP, LH
51783AGUSSET, SIDE STEP EXTENSION
51785GUSSET, STEP BRACKET, NO.2
57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57169MEMBER, FRONT FLOOR, FRONT RH
57169AMEMBER, FRONT FLOOR, FRONT LH
57206AMEMBER SUB-ASSY, FRONT FLOOR CROSS, NO.2
57403BREINFORCE SUB-ASSY, FLOOR SIDE, INNER RH
57404AREINFORCE SUB-ASSY, FLOOR SIDE, INNER LH
57408DMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57409BMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57411BMEMBER, FLOOR SIDE, INNER RH
57412BMEMBER, FLOOR SIDE, INNER LH
57511REINFORCEMENT, FRONT FLOOR, CENTER
58111PAN, FRONT FLOOR
CHINA SPEC
58114AREINFORCEMENT, FRONT FLOOR PANEL
58136COVER, FRONT FLOOR HOLE
58191FOOTREST, FRONT FLOOR
58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58198ACLIP, FOOTREST, NO.1
58291BBOOT, TRANSFER SHIFT LEVER
7851
5742326010BRACKET, FRONT FLOOR REINFORCEMENT, RH
main57423-26010
9011506166
main90115-06166
9011908594
main90119-08594
9017908017
main90179-08017
9026904008
main90269-04008
9056109013
main90561-09013
9056111004
main90561-11004
9095001758
main90950-01758
9095001824
main90950-01824
9095001826
main90950-01826
9095001923
main90950-01923
9095006060
main90950-06060
9163540618
main91635-40618
9163540620
main91635-40620
9356715018
main93567-15018
50 parts on this diagram · 1 diagram in section
