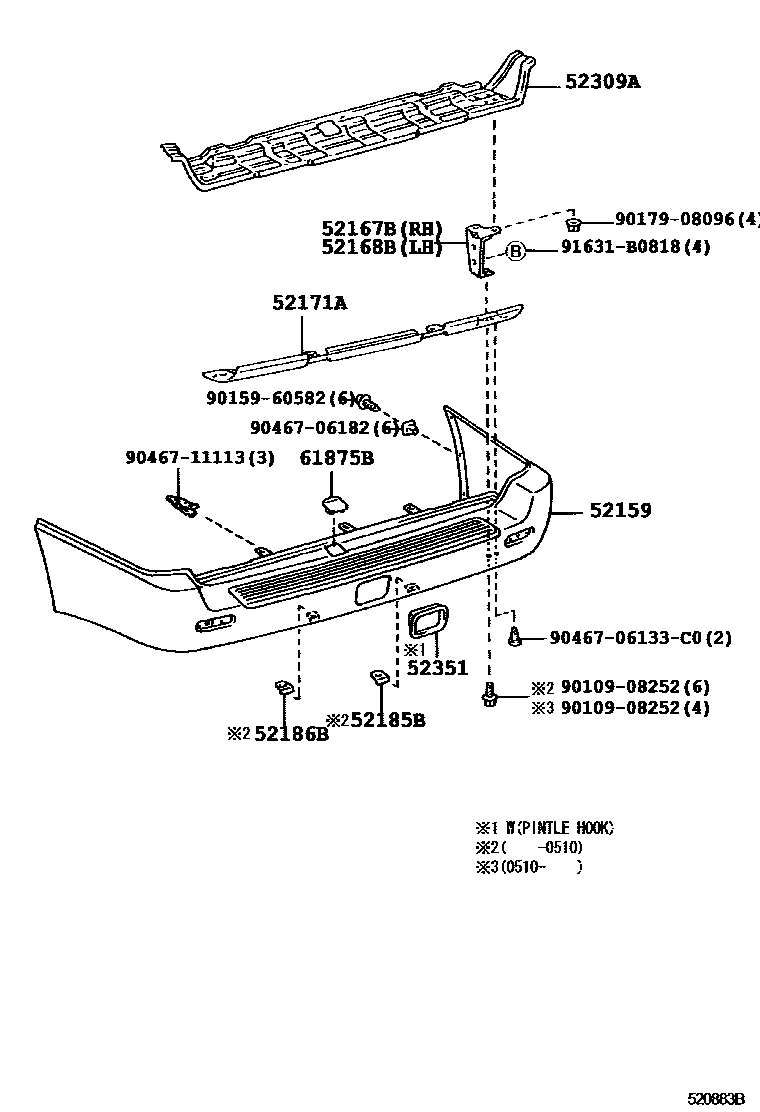

REAR BUMPER & BUMPER STAY

52159COVER, REAR BUMPER

main52159-60907iUZJ100200208-200708

PAINT REQ.

sub52159-6A914

main52159-60909iUZJ100200505-200708

PAINT REQ.,W(PINTLE HOOK)

sub52159-6A916

52167BBRACKET, REAR BUMPER EXTENSION MOUNTING, RH

main52167-60030iUZJ100200208-200505

52168BBRACKET, REAR BUMPER EXTENSION MOUNTING, LH

main52168-60030iUZJ100200208-200505

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52171-60010iUZJ100200208-200510

main52171-60070iUZJ100200510

52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH

main52185-60080iUZJ100200208-200510

52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH

main52185-60080iUZJ100200208-200510

52309AREINFORCEMENT SUB-ASSY, BACK STEP

main52309-60010iUZJ100200208-200505

52351STEP, REAR BUMPER

main51775-60040iUZJ100200505

61875BLID, SPARE WHEEL CARRIER, NO.1

main61875-60020-A2iUZJ100200208-200505

WHITE PEARL CS.,070

sub61875-60020

main61875-60020-A3iUZJ100200505-200708

WHITE PEARL CS.,062

sub61875-60020

main61875-60020-B2iUZJ100200505-200708

SILVER ME.,1F7

sub61875-60020

main61875-60020-D0iUZJ100200208-200708

DK. GRAY M.,202

sub61875-60020

main61875-60020-E2iUZJ100200208-200708

BEIGE PEARL CS.,4R2

sub61875-60020

main61875-60020-G0iUZJ100200505-200708

OLIVE M.M.,6T7

sub61875-60020

9010908252

main90109-08252

9015960582

main90159-60582

9017908096

main90179-08096

9046706133C0

main90467-06133C0

9046706182

main90467-06182

9046711113

main90467-11113

91631B0818

main91631-B0818

16 parts on this diagram · 1 diagram in section
