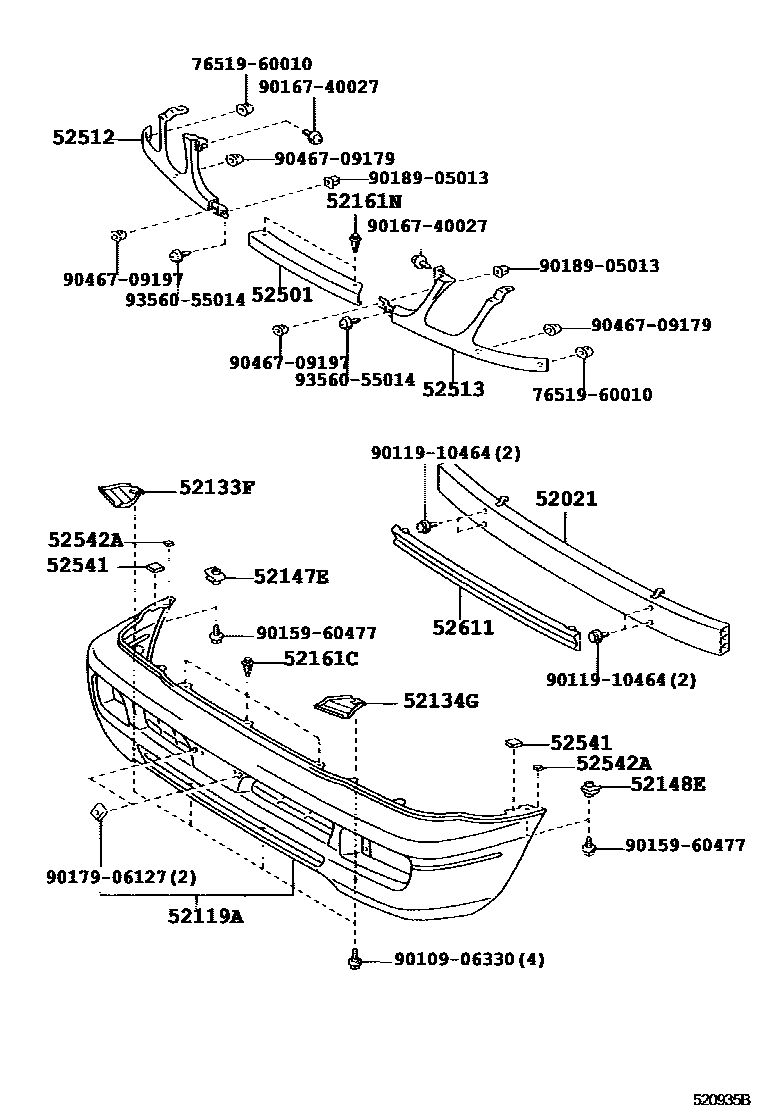

FRONT BUMPER & BUMPER STAY
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52119ACOVER, FRONT BUMPER
PAINT REQ.
52133FBRACKET, FRONT BUMPER, RH
52134GBRACKET, FRONT BUMPER, LH
52147EBRACKET, FRONT BUMPER MOUNTING, RH
52148EBRACKET, FRONT BUMPER MOUNTING, LH
52161CPIECE, FRONT BUMPER
sub52161-0K040
52161NPIECE, FILLER SUB-ASSY, FRONT BUMPER
sub52161-0K040
52501FILLER SUB-ASSY, FRONT BUMPER
52512FILLER, FRONT BUMPER, RH
52513FILLER, FRONT BUMPER, LH
52541PROTECTOR, FRONT BUMPER
52542APROTECTOR, FRONT BUMPER, NO.2
52611ABSORBER, FRONT BUMPER ENERGY
7651960010CLIP, FRONT END PANEL MOULDING, LH
main76519-60010
9010906330
main90109-06330
9011910464
main90119-10464
9015960477
main90159-60477
9016740027
main90167-40027
9017906127
main90179-06127
9018905013
main90189-05013
9046709179
main90467-09179
9046709197
main90467-09197
9356055014
main93560-55014
24 parts on this diagram · 1 diagram in section
