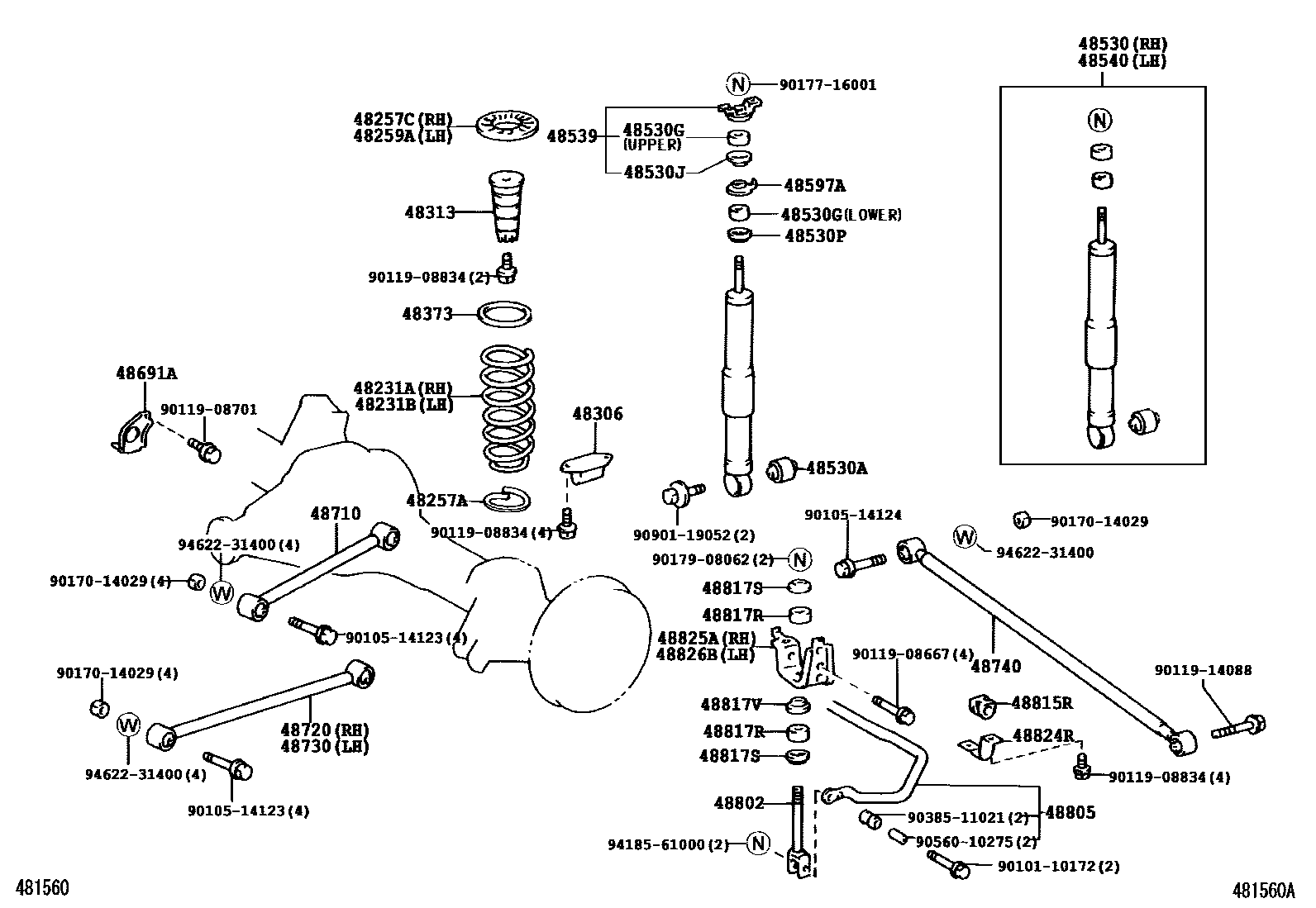

REAR SPRING & SHOCK ABSORBER
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48257AINSULATOR, REAR COIL SPRING, LOWER
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48306BUMPER SUB-ASSY, REAR SPRING
48313SPRING, HOLLOW(FOR REAR SUSPENSION)
48373SPACER, REAR SPRING
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-60052
48530ABUSH(FOR REAR SHOCK ABSORBER)
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
UPPER
LOWER
48530JRETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER)
48530PRETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER)
48539BRACKET, ACTUATOR SUPPORT, RR
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-60052
48597ARETAINER, REAR SHOCK ABSORBER CUSHION
48691AINSULATOR, UPPER ARM BUSH, HEAT
48710ARM ASSY, UPPER CONTROL
RH
LH
48720ARM ASSY, LOWER CONTROL, RH
48730ARM ASSY, LOWER CONTROL, LH
48740ROD ASSY, REAR LATERAL CONTROL
48802LINK SUB-ASSY, STABILIZER
48805BAR SUB-ASSY, REAR STABILIZER
48815RBUSH, STABILIZER(FOR REAR)
48817RCUSHION, STABILIZER(FOR REAR)
48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
48817VRETAINER, CUSHION, NO.2(FOR STABILIZER REAR BAR)
48824RBRACKET, STABILIZER(FOR REAR)
48825ABRACKET, REAR STABILIZER END
48826BPROTECTOR, REAR STABILIZER BAR
9010110172
main90101-10172
9010514123
main90105-14123
9010514124
main90105-14124
9011908667
main90119-08667
9011908701
main90119-08701
9011908834
main90119-08834
9011914088
main90119-14088
9017014029
main90170-14029
9017716001
main90177-16001
9017908062
main90179-08062
9038511021
main90385-11021
9056010275
main90560-10275
9090119052
main90901-19052
9418561000
main94185-61000
9462231400
main94622-31400
45 parts on this diagram · 1 diagram in section
