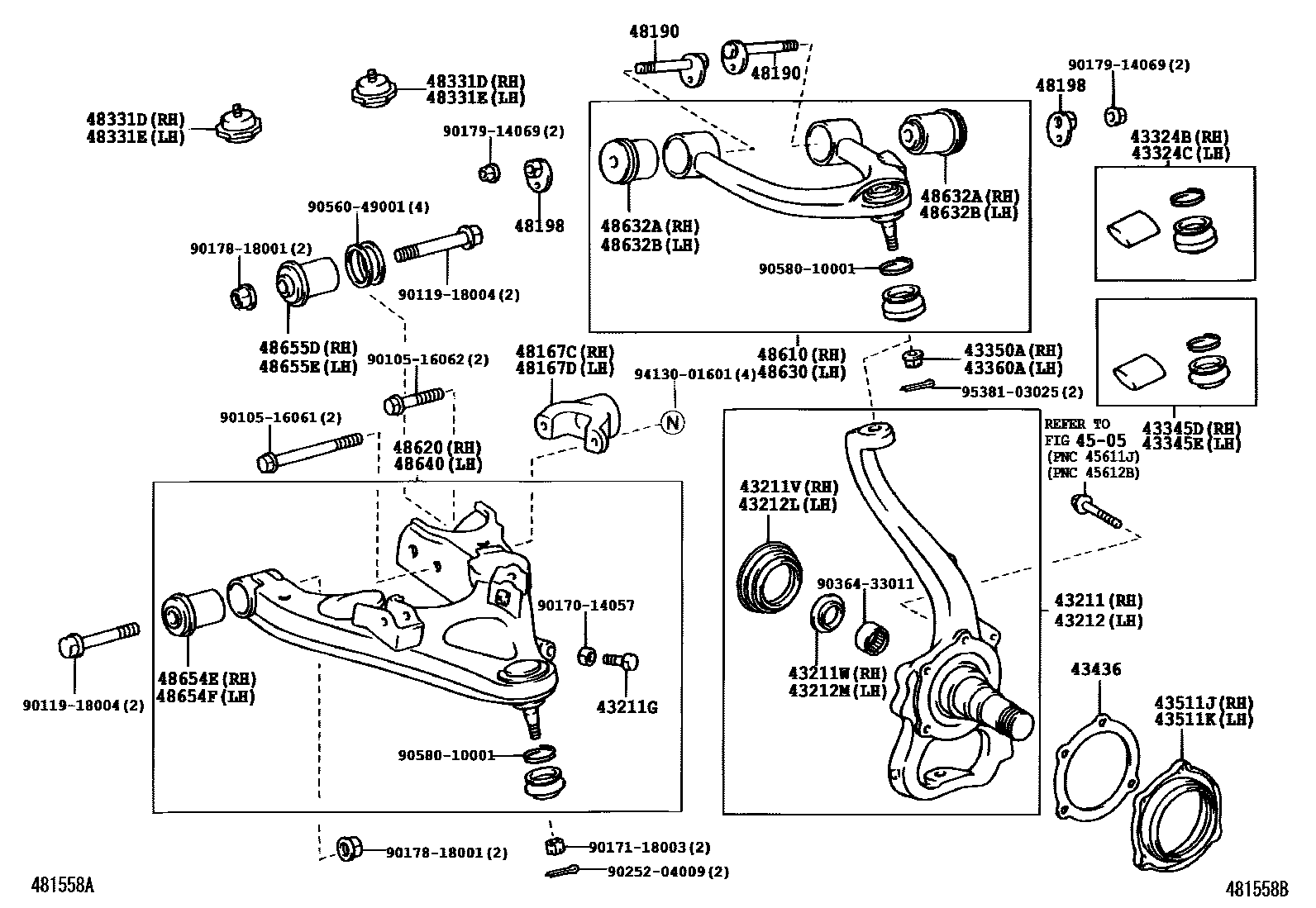

FRONT AXLE ARM & STEERING KNUCKLE
43211KNUCKLE, STEERING, RH
43211GBOLT, ROUND HEXAGON (FOR STEERING KNUCKLE STOPPER)
43211VSEAL, OIL (FOR STEERING KNUCKLE RH)
43211WBUSH (FOR STEERING KNUCKLE RH)
43212KNUCKLE, STEERING, LH
43212LSEAL, OIL (FOR STEERING KNUCKLE LH)
43212MBUSH (FOR STEERING KNUCKLE LH)
43350ANUT (FOR FRONT UPPER BALL JOINT RH)
43360ANUT (FOR FRONT UPPER BALL JOINT LH)
43436GASKET, KNUCKLE SPINDLE OIL RETAINER
43511JSEAL, DUST(FOR FRONT AXLE HUB RH)
43511KSEAL, DUST(FOR FRONT AXLE HUB LH)
4505
48167CARM, FRONT SUSPENSION TORQUE, RH
48167DARM, FRONT SUSPENSION TORQUE, LH
48190CAM ASSY, CAMBER ADJUST
48198CAM, CAMBER ADJUST, NO.2
48331DBUMPER, FRONT SPRING, NO.1 RH
48331EBUMPER, FRONT SPRING, NO.1 LH
48610ARM ASSY, FRONT SUSPENSION UPPER, RH
48620ARM ASSY, FRONT SUSPENSION, LOWER RH
48630ARM ASSY, FRONT SUSPENSION, UPPER LH
48632ABUSH, FRONT SUSPENSION UPPER ARM, RH
48632BBUSH, FRONT SUSPENSION UPPER ARM, LH
48640ARM ASSY, FRONT SUSPENSION LOWER, LH
48654EBUSH, FRONT LOWER ARM, NO.1 RH
48654FBUSH, FRONT LOWER ARM, NO.1 LH
48655DBUSH, FRONT LOWER ARM, NO.2 RH
48655EBUSH, FRONT LOWER ARM, NO.2 LH
9010516061
main90105-16061
9010516062
main90105-16062
9011918004
main90119-18004
9017014057
main90170-14057
9017118003
main90171-18003
9017818001
main90178-18001
9017914069
main90179-14069
9025204009
main90252-04009
9036433011
main90364-33011
9056049001
main90560-49001
9058010001
main90580-10001
9413001601
main94130-01601
9538103025
main95381-03025
46 parts on this diagram · 1 diagram in section
