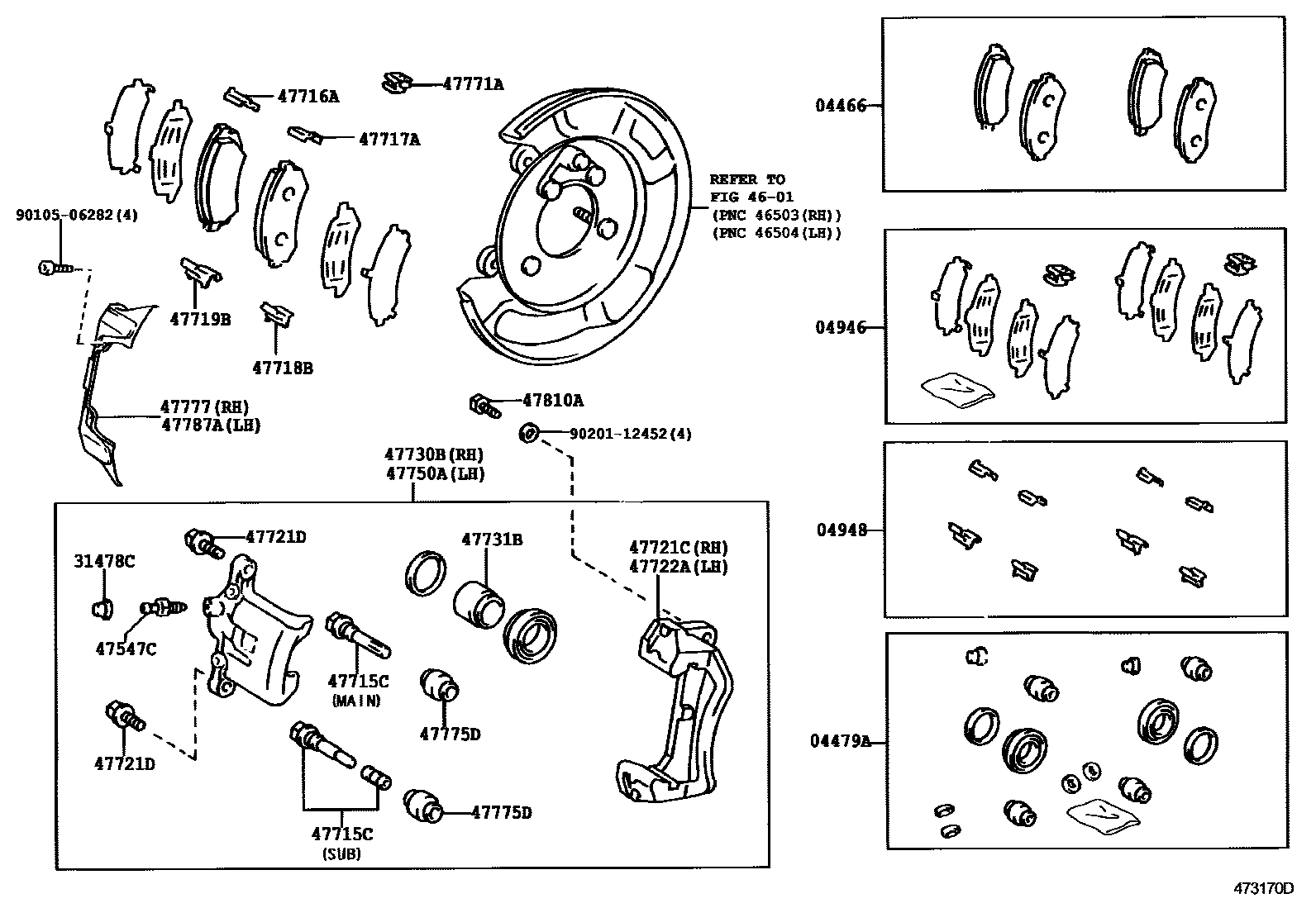

REAR DISC BRAKE CALIPER & DUST COVER
04466PAD KIT, DISC BRAKE, REAR
MARK AK PA511
04479ACYLINDER KIT, DISC BRAKE, REAR
04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04948FITTING KIT, DISC BRAKE, REAR
31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
4601
47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)
47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)
MAIN PIN SIDE
SUB PIN SIDE
47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)
47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)
47718BPLATE, PAD SUPPORT, NO.3(FOR REAR DISK BRAKE)
47719BPLATE, PAD SUPPORT, NO.4(FOR REAR DISK BRAKE)
47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH
47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
*8-1.00PX20-9
47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH
47730BCYLINDER ASSY, REAR DISC BRAKE, RH
47731BPISTON, REAR DISC BRAKE
47750ACYLINDER ASSY, DISC BRAKE, REAR LH
47771APLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)
47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)
47777PROTECTOR, DUST BOOT, RH
47787APROTECTOR, DUST BOOT, LH
47810ABOLT, HEXAGON(FOR REAR CALIPER)
9010506282
9020112452
25 parts on this diagram · 1 diagram in section
