PARKING BRAKE & CABLE

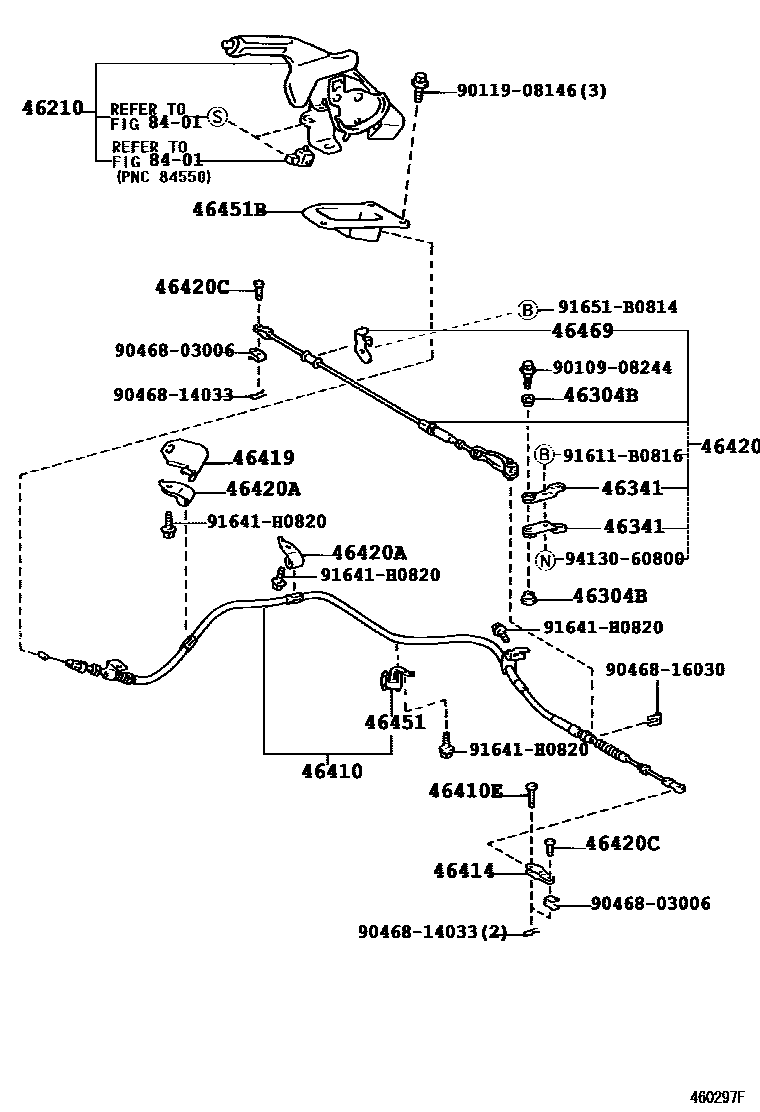

Parts diagram
46210LEVER ASSY, PARKING BRAKE
main46210-60212-C0i200208-200708
BLACK,TRIM0#,1#
46304BBUSH(FOR PARKING BRAKE EQUALIZER)
main90385-12012i200208-200505
46341EQUALIZER, PARKING BRAKE
main46341-35030i200208-200505
46410CABLE ASSY, PARKING BRAKE, NO.1
main46410-60711i200208-200505
46410EPIN, W/HOLE(FOR PARKING BRAKE CABLE NO.1)
main90240-08061i200208-200505
46414CLEVIS, PARKING CABLE
main46414-60010i200208-200505
46419PROTECTOR, PARKING BRAKE CABLE DIFFERENTIAL
main46419-60020i200208-200505
46420CABLE ASSY, PARKING BRAKE, NO.2
main46420-60011i200208-200505
46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)
main90949-01B47i200208-200505
46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)
main90240-08059i200208-200505
46451BRACKET, CABLE SUPPORT
main46451-60190i200208-200505
46451BBRACKET, PARKING BRAKE CABLE SUPPORT
main46452-60090i200208-200505
46469LEVER, CABLE GUIDE SUPPORT
main46469-60040i200208-200505
8401
9010908244
9011908146
9046803006
9046814033
9046816030
91611B0816
91641H0820
91651B0814
9413060800

23 parts on this diagram · 2 diagrams in section
