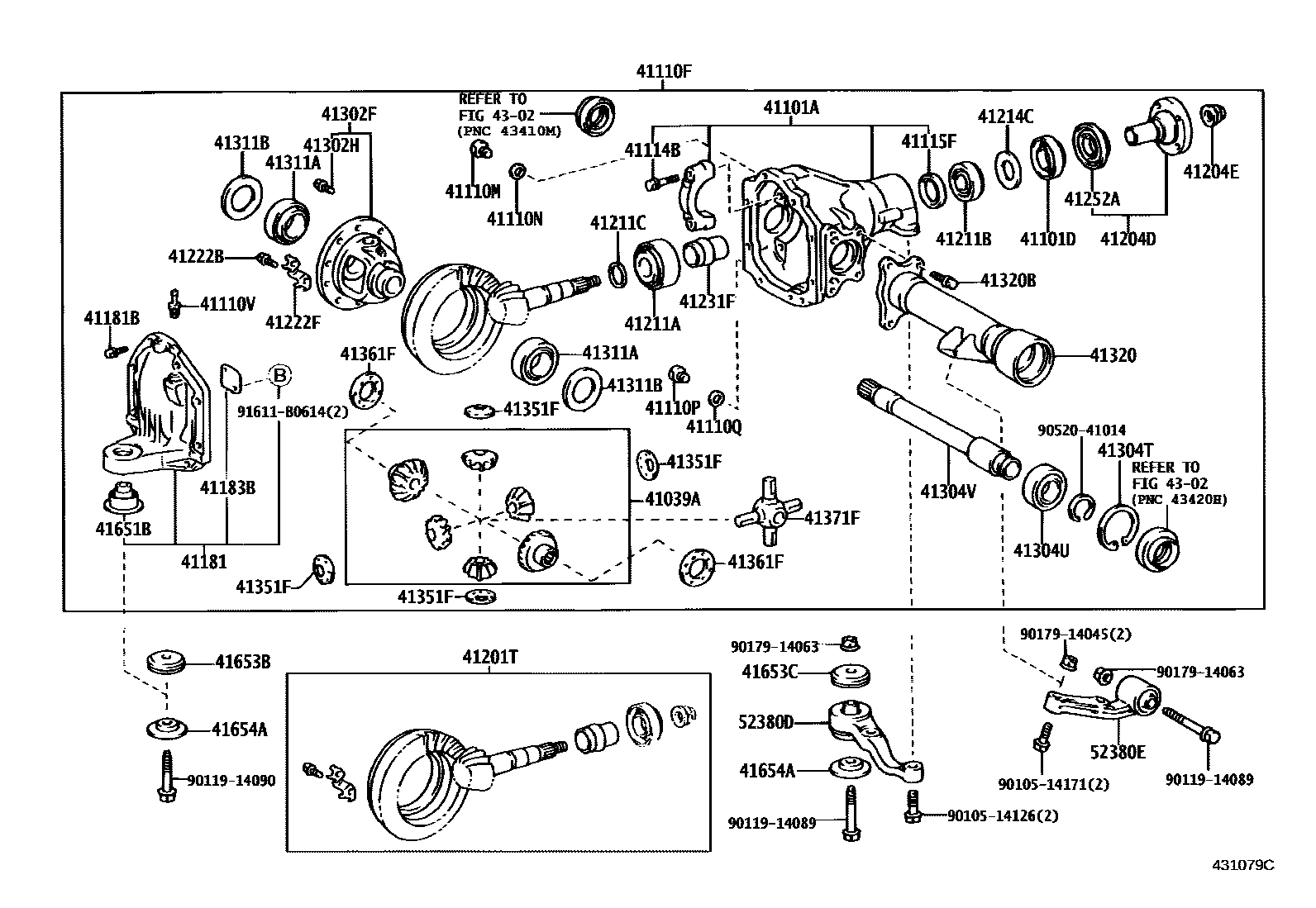

FRONT AXLE HOUSING & DIFFERENTIAL
41039AGEAR KIT, DIFFERENTIAL
41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT
41101DSEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER)
41110FCARRIER ASSY, DIFFERENTIAL, FRONT
*FGR=41:10=4.100
41110MPLUG, FRONT DIFFERENTIAL FILLER
41110NGASKET, FRONT DIFFERENTIAL FILLER PLUG
41110PPLUG, FRONT DIFFERENTIAL DRAIN
41110QGASKET, FRONT DIFFERENTIAL DRAIN PLUG
41110VUNION (FOR FRONT DIFFERENTIAL)
41114BBOLT, FRONT DIFFERENTIAL BEARING CAP
41115FRING, FRONT DIFFERENTIAL OIL STORAGE
41181BBOLT (FOR FRONT DIFFERENTIAL CARRIER COVER SETTING)
*10-1.25PX40-30
*10-1.25PX26-17
41183BDEFLECTOR, FRONT DIFFERENTIAL SIDE BEARING RETAINER
41201TFINAL GEAR KIT, DIFFERENTIAL, FRONT
*FGR=41:10=4.100
41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT
41204ENUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT)
41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
41211CGEAR, DIFFERENTIAL RING
OD=47,T=1.70
OD=47,T=1.73
OD=47,T=1.76
OD=47,T=1.79
OD=47,T=1.82
OD=47,T=1.85
OD=47,T=1.88
OD=47,T=1.91
OD=47,T=1.94
OD=47,T=1.97
OD=47,T=2.00
OD=47,T=2.03
OD=47,T=2.06
OD=47,T=2.09
OD=47,T=2.12
OD=47,T=2.15
OD=47,T=2.18
OD=47,T=2.21
OD=47,T=2.24,MARK 01
OD=47,T=2.27,MARK 02
OD=47,T=2.30,MARK 03
OD=47,T=2.33,MARK 04
41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK
41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING
41252ADEFLECTOR, DUST (FOR FRONT DIFFERENTIAL)
41302FCASE SUB-ASSY, FRONT DIFFERENTIAL
41302HBOLT(FOR FRONT DIFFERENTIAL CASE)
sub90105-10570
41304TRING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT LH)
41304UBEARING (FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT LH)
41304VSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, LH
41311ABEARING (FOR FRONT DIFFERENTIAL CASE)
41311BWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE)
T=2.58,MARK 01
T=2.64,MARK 03
T=2.70,MARK 05
T=2.76,MARK 07
T=2.82,MARK 09
T=2.88,MARK 11
T=2.94,MARK 13
T=3.00,MARK 15
T=3.06,MARK 17
T=3.12,MARK 19
T=3.18,MARK 21
T=3.24,MARK 23
T=3.30,MARK 25
T=3.36,MARK 27
T=3.42,MARK 29
T=3.48,MARK 31
T=2.60,MARK 32
T=2.62,MARK 33
T=2.66,MARK 34
T=2.68,MARK 35
T=2.72,MARK 36
T=2.74,MARK 37
T=2.78,MARK 38
T=2.80,MARK 39
T=2.84,MARK 40
T=2.86,MARK 41
T=2.90,MARK 42
T=2.92,MARK 43
T=2.96,MARK 44
T=2.98,MARK 45
T=3.02,MARK 46
T=3.04,MARK 47
T=3.08,MARK 48
T=3.10,MARK 49
T=3.14,MARK 50
T=3.16,MARK 51
T=3.20,MARK 52
T=3.22,MARK 53
T=3.26,MARK 54
T=3.28,MARK 55
T=3.32,MARK 56
T=3.34,MARK 57
T=3.38,MARK 58
T=3.40,MARK 59
T=3.44,MARK 60
T=3.46,MARK 61
T=2.42,MARK 62
T=2.44,MARK 63
T=2.46,MARK 64
T=2.48,MARK 65
T=2.50,MARK 66
T=2.52,MARK 67
T=2.54,MARK 68
T=2.56,MARK 69
41320TUBE ASSY, FRONT DIFFERENTIAL
41320BBOLT (FOR FRONT DIFFERENTIAL TUBE)
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=0.875
T=0.900
T=0.925
T=0.950
T=0.975
T=1.000
T=1.025
T=1.050
T=1.075
T=1.100
T=1.125
T=1.150
T=1.175
T=1.200
T=1.225
T=1.250
T=1.275
T=1.300
T=1.325
41371FSPIDER, FRONT DIFFERENTIAL
41651BCUSHION, FRONT DIFFERENTIAL MOUNT, NO.1
41653BSTOPPER, DIFFERENTIAL MOUNT, UPPER
41653CSTOPPER, FRONT DIFFERENTIAL MOUNT, UPPER
41654ASTOPPER, DIFFERENTIAL MOUNT, LOWER
4302
52380DSUPPORT ASSY, FRONT DIFFERENTIAL
52380ESUPPORT ASSY, DIFFERENTIAL
9010514126
main90105-14126
9010514171
main90105-14171
9011914089
main90119-14089
9011914090
main90119-14090
9017914045
main90179-14045
9017914063
main90179-14063
9052041014
main90520-41014
91611B0614
main91611-B0614
52 parts on this diagram · 2 diagrams in section
