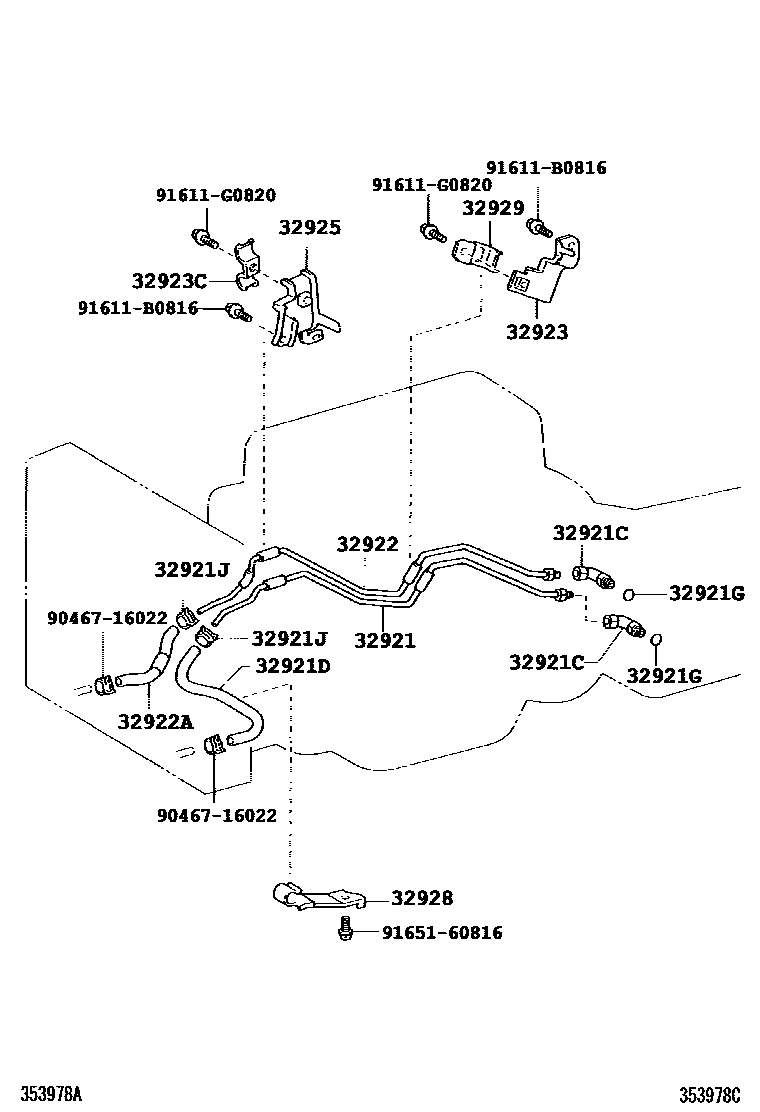

OIL COOLER & TUBE (ATM)

0001 1A750F 0002 1AIR COOLING OIL COOLER

32921TUBE, OIL COOLER INLET, NO.1

main32921-60370iUZJ100200208-200209

main32921-60371iUZJ100200209-200505

sub32921-60351

32921CUNION(FOR OIL COOLER TUBE)

main90407-16009×2iUZJ100200208-200209

main90407-16037×2iUZJ100200209-200505

32921DHOSE(FOR OIL COOLER INLET)

main32941-60290iUZJ100200208-200505

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11006×2iUZJ100200208-200505

32921JCLIP(FOR OIL COOLER HOSE)

main90467-16013×2iUZJ100200208-200505

main90467-16022×2iUZJ100200505

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-60400iUZJ100200208-200209

main32922-60401iUZJ100200209-200505

sub32922-60371

32922AHOSE(FOR OIL COOLER OUTLET)

main32942-60290iUZJ100200505

AIR COOLING OIL COOLER

main32942-60330iUZJ100200208-200505

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-60120iUZJ100200208-200505

32923CCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4

main90462-12076iUZJ100200208-200505

32925CLAMP, OIL COOLER TUBE, NO.3

main32925-60190iUZJ100200505

32928CLAMP, FLEXIBLE HOSE, NO.1

main32928-60130iUZJ100200208-200505

main32928-60150iUZJ100200706

32929CLAMP, FLEXIBLE HOSE, NO.2

main32929-24060iUZJ100200208-200505

9046716022

main90467-16022

91611B0816

main91611-B0816

91611G0820

main91611-G0820

9165160816

main91651-60816

16 parts on this diagram · 2 diagrams in section
