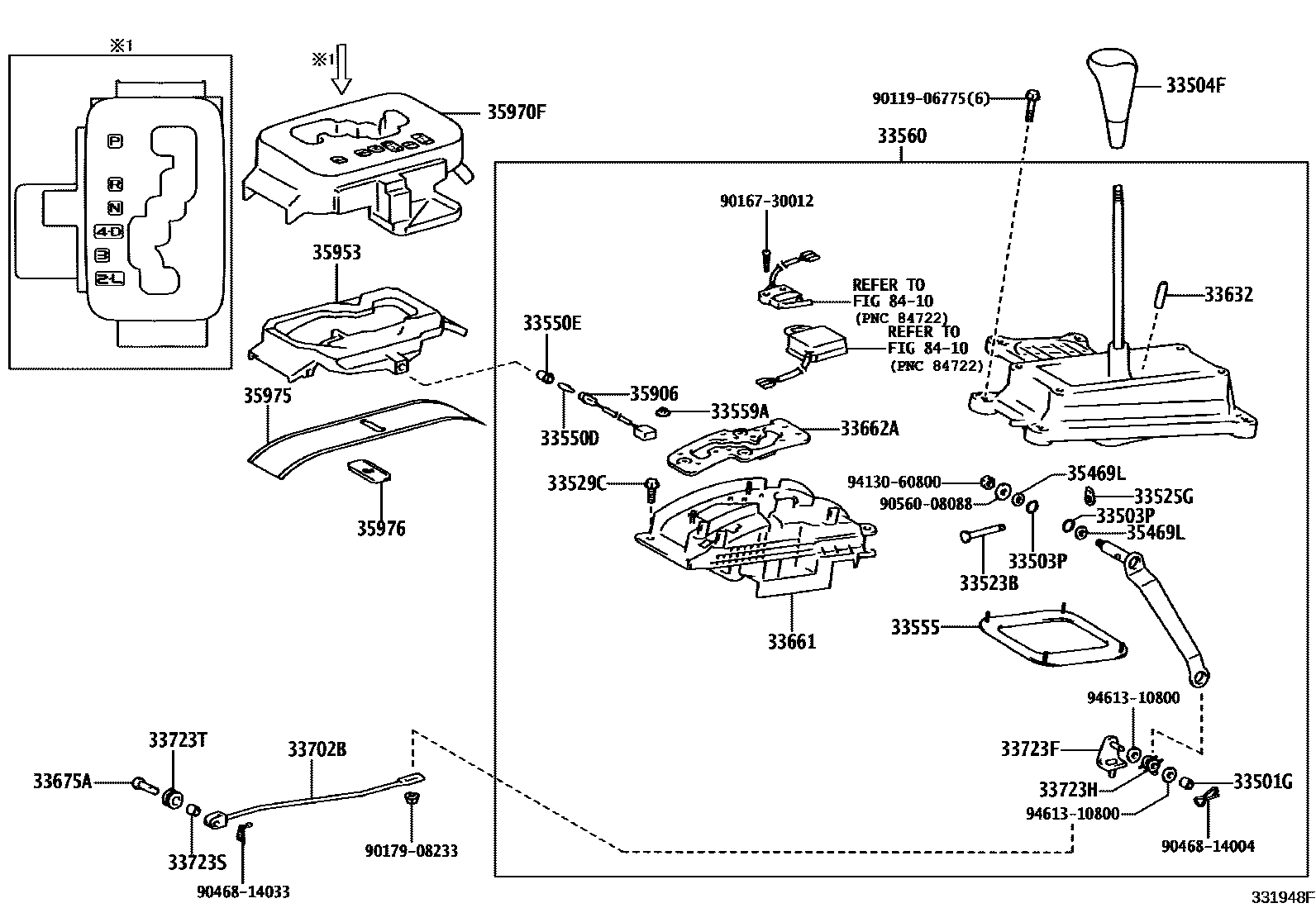

SHIFT LEVER & RETAINER
33501GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)
33503PRING, O(FOR SHIFT LEVER)
33504FKNOB SUB-ASSY, SHIFT LEVER
BLACK,TRIM0#,1#
33523BPIN, SHIFT LEVER (FOR FLOOR SHIFT)
33525GRING, SHIFT LEVER
33529CBOLT, SHIFT LEVER
33550DBULB, POSITION INDICATOR LAMP
12V 1.2W W/O SOCKET
33550ECAP, POSITION INDICATOR LAMP
33555BOOT, SHIFT LEVER
33559ANUT, SHIFT LEVER, NO.1
33560UNIT ASSY, SHIFT LOCK CONTROL
33632ROD, DETENT, NO.2
33661HOUSING, SHIFT LEVER GUIDE
33662ACUSHION, SHIFT LEVER GUIDE
33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)
33702BROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)
33723FSWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)
33723HGROMMET (FOR FLOOR SHIFT CONTROL SHAFT)
33723SBUSH (FOR CONNECTING ROD SWIVEL)
33723TGROMMET (FOR CONNECTING ROD SWIVEL)
35469LSPACER, SHIFT LEVER
35906WIRE SUB-ASSY, INDICATOR LAMP
35953GUIDE, POSITION INDICATOR LIGHT
35970FHOUSING ASSY, POSITION INDICATOR
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
8410
9011906775
main90119-06775
9016730012
main90167-30012
9017908233
main90179-08233
9046814004
main90468-14004
9046814033
main90468-14033
9056008088
main90560-08088
9413060800
main94130-60800
9461310800
main94613-10800
35 parts on this diagram · 3 diagrams in section
