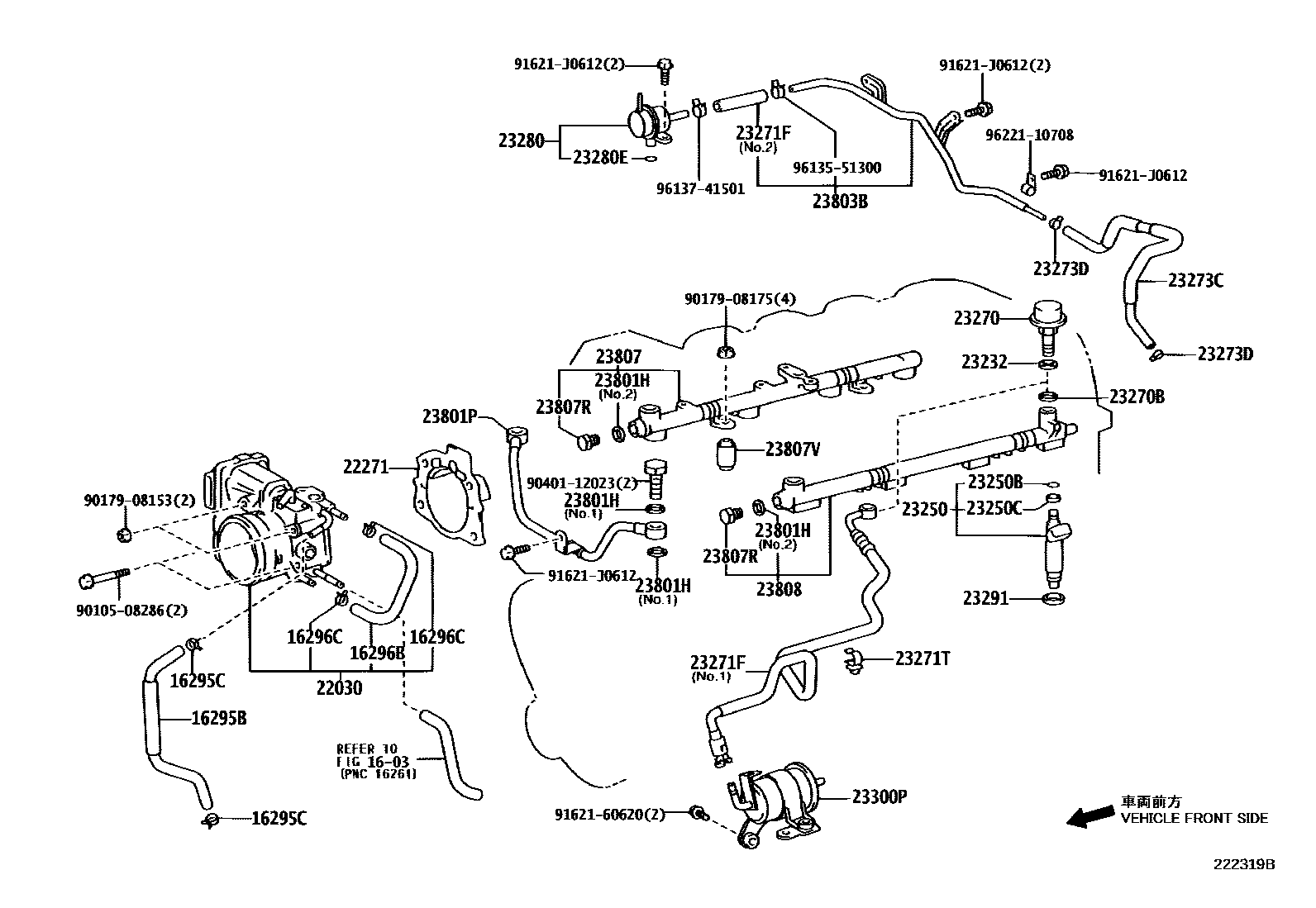

FUEL INJECTION SYSTEM
1603
16295BHOSE, WATER BY-PASS, NO.7
16295CCLIP(FOR WATER BY-PASS HOSE NO.7)
16296BHOSE, WATER BY-PASS, NO.8
16296CCLIP(FOR WATER BY-PASS HOSE NO.8)
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22271GASKET, THROTTLE BODY
23232GASKET(FOR FUEL PUMP HOSE)
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23270DAMPER ASSY, FUEL PRESSURE PULSATION
23270BGASKET(FOR PULSATION DAMPER HOSE)
23271FHOSE, FUEL
NO.1
NO.2
23271TCLAMP OR CLIP(FOR FUEL HOSE)
23273CHOSE, FUEL, NO.2
23273DCLIP(FOR FUEL HOSE NO.2)
23280REGULATOR ASSY, FUEL PRESSURE
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
23291INSULATOR, INJECTOR VIBRATION
23300PFILTER, FUEL(FOR EFI)
23801HGASKET(FOR FUEL PIPE)
NO.1
NO.2
23801PPIPE SUB-ASSY, FUEL, NO.1
23803BPIPE SUB-ASSY, FUEL, NO.3
23807PIPE SUB-ASSY, FUEL DELIVERY
23807RPLUG, FUEL DELIVARY PIPE
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23808PIPE SUB-ASSY, FUEL DELIVERY, NO.2
9010508286
9017908153
9017908175
9040112023
9162160620
91621J0612
9613551300
9613741501
9622110708
37 parts on this diagram · 2 diagrams in section
