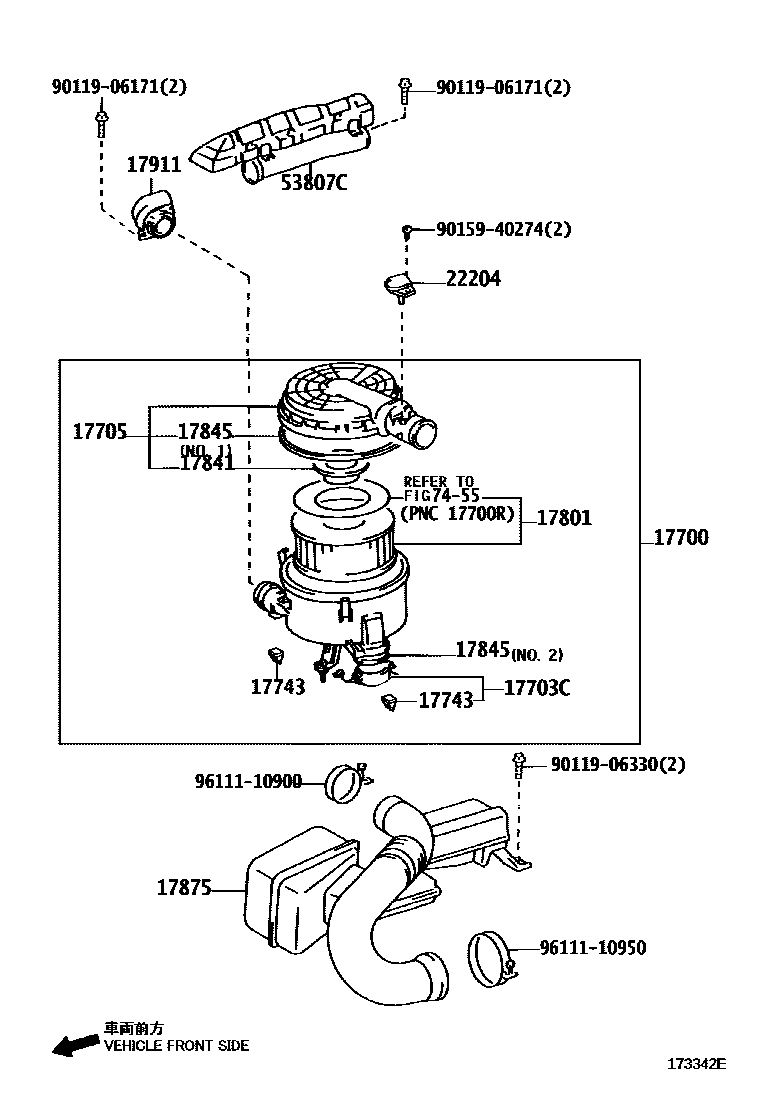

AIR CLEANER

17700CLEANER ASSY, AIR

main17700-50182i2UZFE..UZJ100200208-200505

17703CCAP SUB-ASSY, DUST

main17703-50020i2UZFE..UZJ100200208-200505

17705CAP SUB-ASSY, AIR CLEANER

main17705-50091i2UZFE..UZJ100200208-200505

17743VALVE, DUST RELIEF

main17743-50010i2UZFE..UZJ100200208-200505

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-17020i2UZFE..UZJ100200208-200505

17841GASKET, FILTER ELEMENT

main17841-50010i2UZFE..UZJ100200208-200505

17845GASKET, AIR CLEANER CAP

main17845-50010i2UZFE..UZJ100200208-200505

NO.1

main17845-50020i2UZFE..UZJ100200208-200505

NO.2

17875PIPE, INTAKE AIR CONNECTOR

main17875-50280i2UZFE..UZJ100200208-200505

17911DUCT, COOL AIR INTAKE, NO.1

main52810-60010i2UZFE..UZJ100200208-200505

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-75020i2UZFE..UZJ100200208-200505

53807CDUCT SUB-ASSY, FRONT FENDER AIR, RH

main53807-60050iUZJ100200208-200505

7455

9011906171

main90119-06171

9011906330

main90119-06330

9015940274

main90159-40274

9611110900

main96111-10900

9611110950

main96111-10950

17 parts on this diagram · 1 diagram in section
