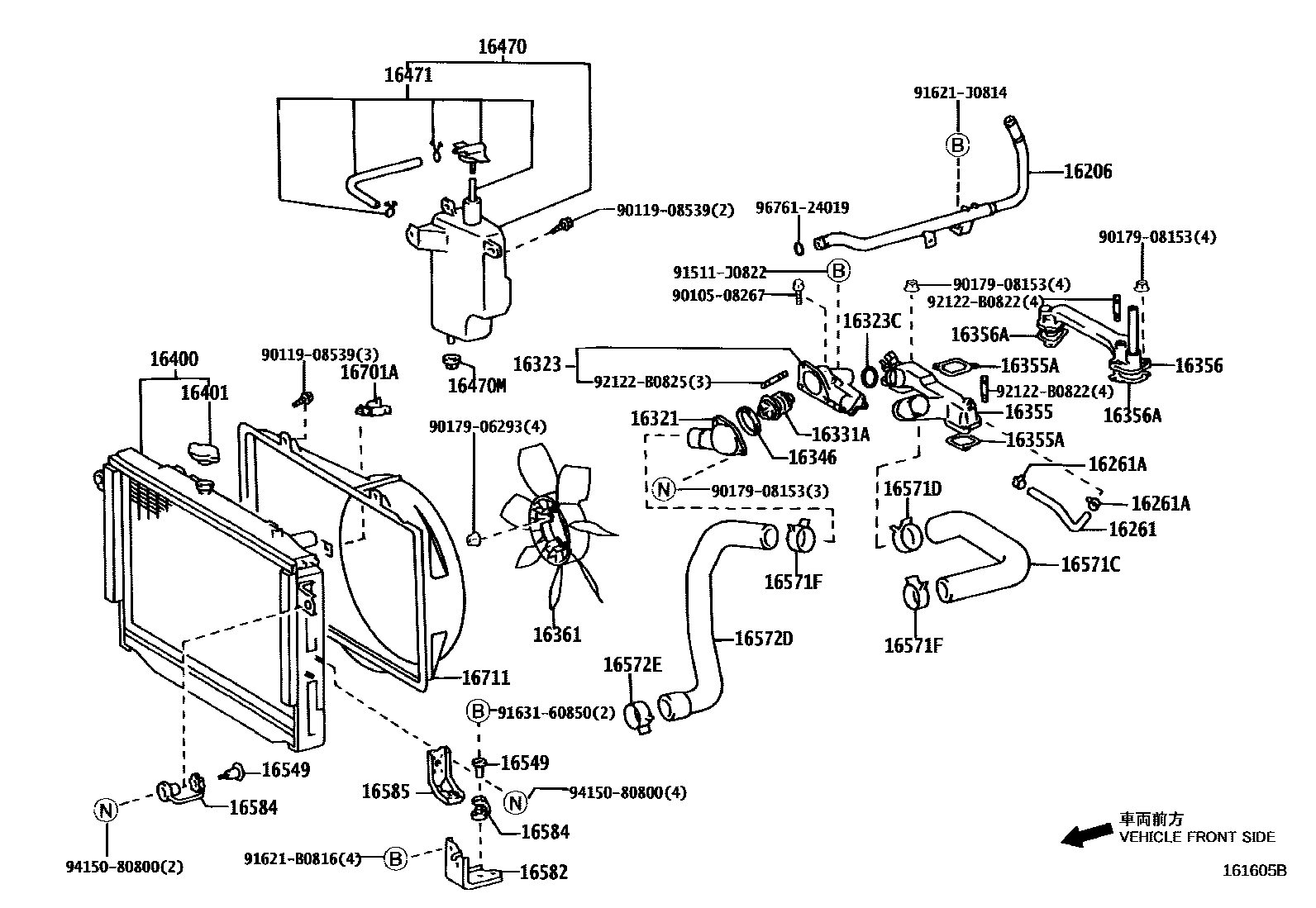

RADIATOR & WATER OUTLET
16206PIPE SUB-ASSY, WATER BY-PASS
16261HOSE, WATER BY-PASS
16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16321INLET, WATER
16323HOUSING, WATER INLET
16323CRING, O(FOR WATER INLET HOUSING)
16331ATHERMOSTAT
*WAX 82-95
*WAX 82-95
16346GASKET, THERMOSTAT
16355JOINT, WATER BY-PASS, FRONT
16355AGASKET(FOR WATER BY-PASS JOINT FRONT)
16356JOINT, WATER BY-PASS, REAR
16356AGASKET(WATER BY-PASS JOINT, REAR)
16361FAN
16470TANK ASSY, RADIATOR RESERVE
16470MGROMMET
16471CAP SUB-ASSY, RESERVE TANK
16549COLLAR, RADIATOR SUPPORT, NO.2
UPPER BRACKET SIDE
LOWER
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
sub90466-41008
16571FCLAMP OR CLIP(FOR WATER HOSE)
sub90466-41008
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
16582BRACKET, RADIATOR, NO.1
16584INSULATOR, RADIATOR MOUNTING
LOWER
UPPER BRACKET SIDE
16585BRACKET, RADIATOR, NO.3
16701ACLIP(FOR FAN SHROUD)
16711SHROUD, FAN
9010508267
main90105-08267
9011908539
main90119-08539
9017906293
main90179-06293
9017908153
main90179-08153
91511J0822
main91511-J0822
91621B0816
main91621-B0816
91621J0814
main91621-J0814
9163160850
main91631-60850
92122B0822
main92122-B0822
92122B0825
main92122-B0825
9415080800
main94150-80800
9676124019
main96761-24019
41 parts on this diagram · 2 diagrams in section
