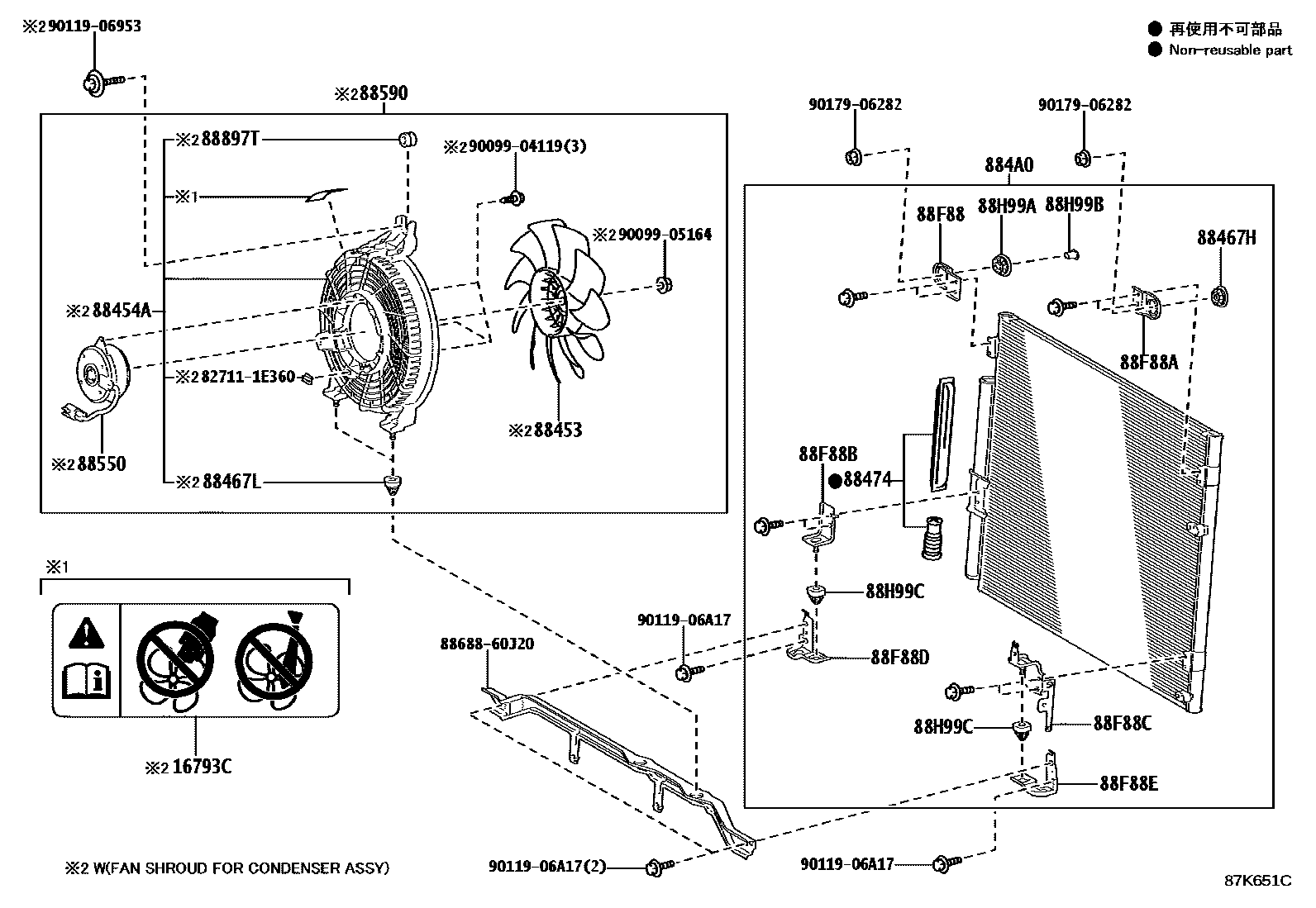

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1CONDENSER & FUN SHROUD 0002 1CONDENSER & FUN SHROUD 0003 1FRONT 0004 1FRONT 0005 1FRONT 0006 1FRONT 0007 1FRONT 0008 1FRONT 0009 1REAR,W(COOL BOX) 0010 1REAR,W/O(COOL BOX) 0011 1REAR,W/O(COOL BOX) 0012 1REAR,W(COOL BOX)

16793CLABEL, COOLING FAN CAUTION

main16793-31070iV35AFTS..VJA310..EUR202112-202411

MEXICO SPEC

main16793-31070iF33AFTV,V35AFTS..FJA310,VJA310,VJH310..ARL,CHI,GCC202411

88453FAN, COOLING (FOR CONDENSER)

main16361-70100iVJH310202411

main88453-26040iVJA310..EUR202112-202411

MEXICO SPEC

main88453-26040iFJA310,VJA310..ARL,GCC202411

88454ASHROUD, FAN

main88454-01030iVJH310202411

main88454-60111iVJA310..EUR202112-202411

MEXICO SPEC

main88454-60111iFJA310,VJA310..ARL,GCC202411

88467HCUSHION, CONDENSER BRACKET, NO.1

main88467-35040iFJA310,VJA310202112-202411

88467LCUSHION, COOLER, NO.1

main88467-60010iFJA310,VJA310,VJH310..ARL,CHI,GCC202411

main88467-60010iFJA310,VJA310..GCC202112-202411

MEXICO SPEC

88474DRYER, COOLER

main88474-12010iFJA310,VJA310202112-202411

884A0CONDENSER ASSY, COOLER

main884A0-60030iFJA310..ARL202411

INDONESIA SPEC

main884A0-60030iFJA310..ARL202411

BRUNEI SPEC

main884A0-60030iFJA310..ARL202411

INDIA SPEC

main884A0-60030iFJA310..ARL202411

THAI SPEC

main884A0-60030iFJA310,VJA310..ARL,EUR202112-202411

main884A0-60050iFJA310,VJA310..GCC202112-202411

MEXICO SPEC

main884A0-60050iFJA310,VJA310..GCC202411

main884A0-60060iFJA310,VJA310..ARL202411

main884A0-60140iVJH310202411

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-60130iFJA310,VJA310..ARL,GCC202411

main88550-60130iFJA310,VJA310..GCC202112-202411

MEXICO SPEC

88590BLOWER ASSY, W/SHROUD

main88590-60111iFJA310,VJA310..GCC202112-202411

MEXICO SPEC

main88590-60111iFJA310,VJA310..ARL,GCC202411

main88590-60140iVJH310202411

88897TGROMMET, COOLER

main88897-60210iFJA310,VJA310,VJH310..ARL,CHI,GCC202411

main88897-60210iFJA310,VJA310..GCC202112-202411

MEXICO SPEC

88F88BRACKET, CONDENSER, NO.1

main88688-60C40iFJA310..ARL202411

INDONESIA SPEC

main88688-60C40iFJA310,VJA310..EUR202411

BRUNEI SPEC

main88688-60C40iFJA310,VJA310..EUR202411

INDIA SPEC

main88688-60C40iFJA310,VJA310..EUR202411

THAI SPEC

main88688-60C40iFJA310,VJA310..ARL,EUR202112-202411

main88688-60D00iVJA310..EUR202112-202411

MEXICO SPEC

main88688-60D00iFJA310,VJA310..ARL,GCC202411

main88688-60J10iVJH310202411

88F88ABRACKET, CONDENSER, NO.2

main88688-60C50iFJA310,VJA310..EUR202411

INDONESIA SPEC

main88688-60C50iFJA310,VJA310..EUR202411

BRUNEI SPEC

main88688-60C50iFJA310,VJA310..EUR202411

INDIA SPEC

main88688-60C50iFJA310,VJA310..EUR202411

THAI SPEC

main88688-60C50iFJA310,VJA310..ARL,EUR202112-202411

main88688-60D10iVJA310..EUR202112-202411

MEXICO SPEC

main88688-60D10iFJA310,VJA310..ARL,GCC202411

main88688-60J00iVJH310202411

88F88BBRACKET, CONDENSER, NO.3

main88688-60C60iFJA310..ARL202411

INDIA SPEC

main88688-60C60iFJA310,VJA310..EUR202411

INDONESIA SPEC

main88688-60C60iFJA310,VJA310..EUR202411

BRUNEI SPEC

main88688-60C60iFJA310,VJA310..EUR202411

THAI SPEC

main88688-60C60iFJA310,VJA310..ARL,EUR202112-202411

main88688-60D20iFJA310,VJA310,VJH310..ARL,CHI,GCC202411

main88688-60D20iFJA310,VJA310..GCC202112-202411

MEXICO SPEC

88F88CBRACKET, CONDENSER, NO.4

main88688-60C70iFJA310,VJA310..EUR202411

INDIA SPEC

main88688-60C70iFJA310,VJA310..EUR202411

THAI SPEC

main88688-60C70iVJA310..ARL202411

INDONESIA SPEC

main88688-60C70iVJA310..ARL202411

BRUNEI SPEC

main88688-60C70iFJA310,VJA310..ARL,EUR202112-202411

main88688-60D30iFJA310,VJA310,VJH310..ARL,CHI,GCC202411

main88688-60D30iFJA310,VJA310..GCC202112-202411

MEXICO SPEC

88F88DBRACKET, CONDENSER, NO.5

main88688-60C80iFJA310,VJA310202112-202411

main88688-60J60iVJH310202411

88F88EBRACKET, CONDENSER, NO.6

main88688-60C90iFJA310,VJA310,VJH310202112-202411

88H99ABUSH, CONDENSER BRACKET, NO.1

main88899-60530iVJH310202112-202411

88H99BBUSH, CONDENSER BRACKET, NO.2

main88899-60540iFJA310,VJA310202112-202411

main88899-60710iVJH310202411

88H99CBUSH, CONDENSER BRACKET, NO.3

main88899-60550iFJA310,VJA310202112-202411

827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E360

8868860J20BRACKET, COOLER DIAPHRAGM

main88688-60J20

9009904119

main90099-04119

9009905164

main90099-05164

9011906953

main90119-06953

9011906A17

main90119-06A17

9017906282

main90179-06282

26 parts on this diagram · 12 diagrams in section
