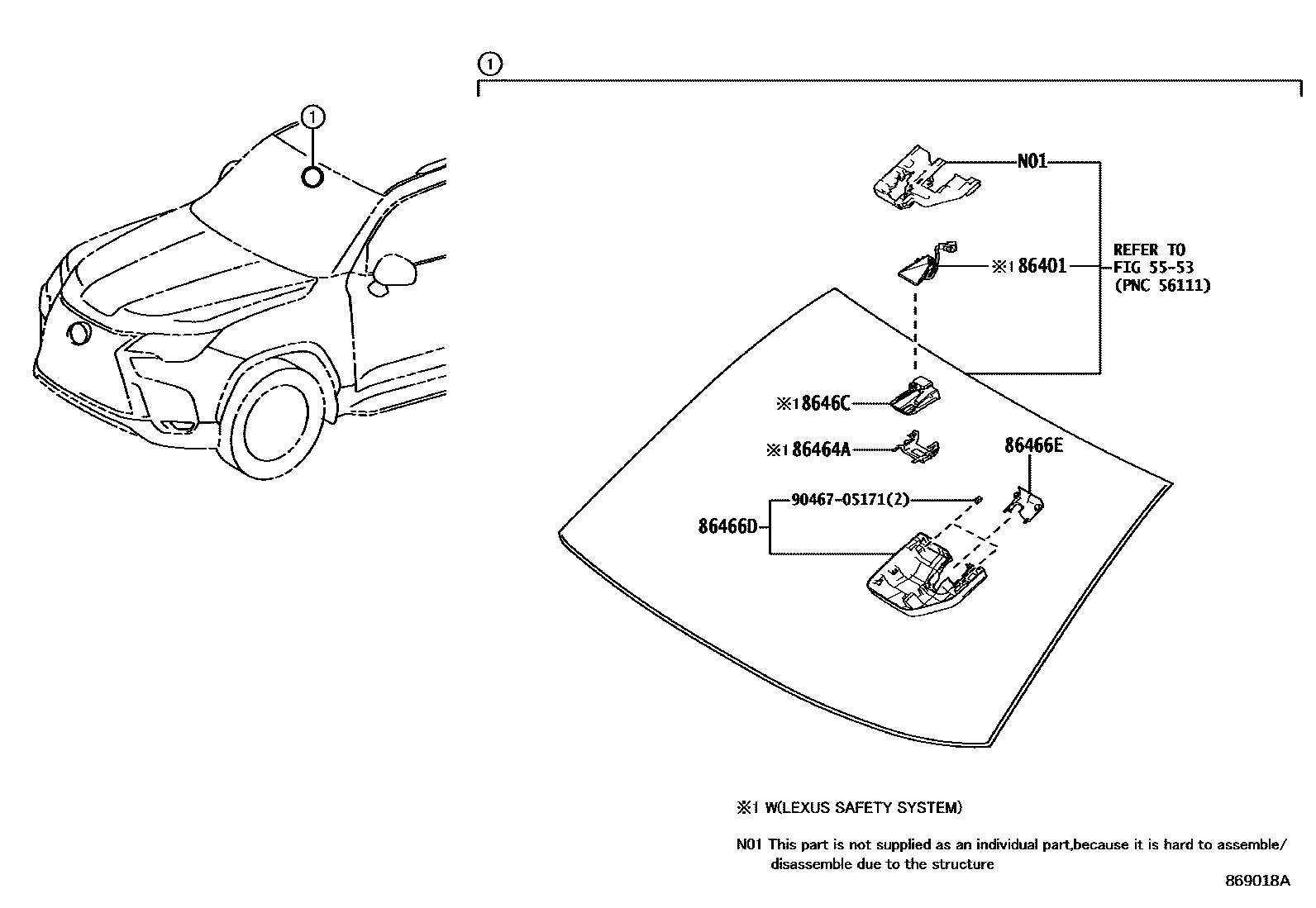

PRE-COLLISION SYSTEM

0001 1 0002 1 0003 1

5553

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-60030iFJA310,VJA310202112-202411

86464ALATCH, FORWARD RECOGNITION

main86464-26010iFJA310,VJA310202112-202411

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-60070iFJA310,VJA310..LHD202112-202411

main86466-60080iFJA310,VJA310..ARL202112-202411

main86466-60160iFJA310,VJA310,VJH310..ARL202411

main86466-60170iFJA310,VJA310,VJH310..LHD202411

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-60090iFJA310,VJA310..LHD202112-202411

main86466-60100iFJA310,VJA310..ARL202112-202411

main86467-60030iFJA310,VJA310,VJH310..ARL202411

main86467-60040iFJA310,VJA310,VJH310..LHD202411

8646CCAMERA, FORWARD RECOGNITION

main8646C-60090iFJA310,VJA310202112-202211

*614

main8646C-60091iFJA310,VJA310202211-202310

*614

main8646C-60180iVJA310..GCC202310-202411

EGYPT SPEC,*614

main8646C-60180iVJA310..GCC202310-202411

INDIA SPEC,*614

main8646C-60180iVJA310..GCC202310-202411

YEMEN SPEC,*614

main8646C-60180iVJA310..GCC202310-202411

BELARUS SPEC,*614

main8646C-60180iVJA310..GCC202310-202411

KYRGYZ SPEC,*614

main8646C-60180iVJA310..GCC202310-202411

*614

main8646C-60180iVJA310..GCC202310-202411

EL SALVADOR SPEC,*614

main8646C-60180iVJA310..GCC202310-202411

IRAQ SPEC,*614

main8646C-60180iVJA310..GCC202310-202411

MONGOLIA SPEC,*614

main8646C-60350iFJA310,VJA310,VJH310202411

*614

9046705171

main90467-05171

7 parts on this diagram · 3 diagrams in section
