SPEAKER

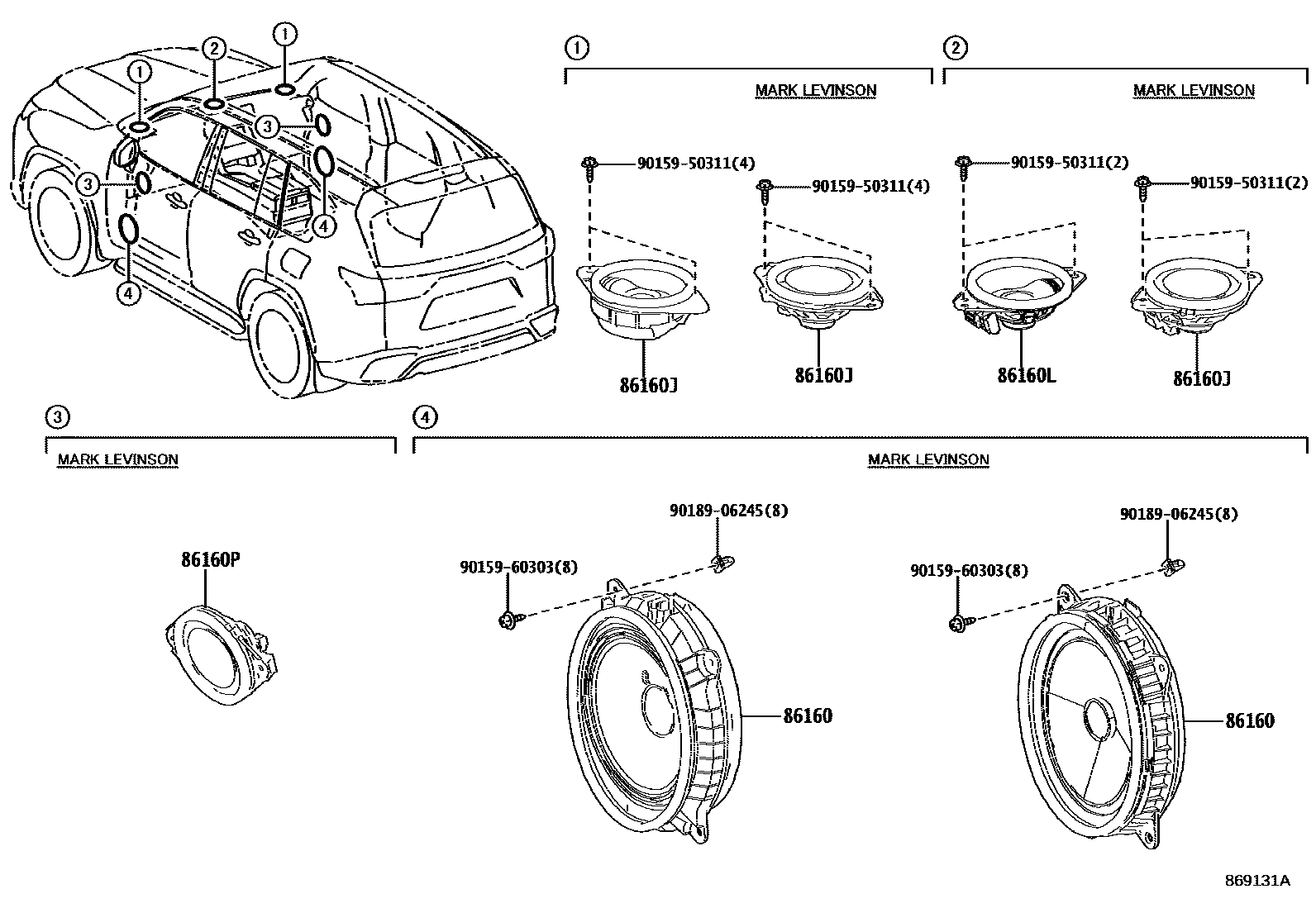

0001 1FRONT SPEAKER 0002 1REAR SPEAKER 0003 1ROOF SPEAKER 0004 1EQUALIZER & MICROPHONE

86160SPEAKER ASSY, FRONT NO.1

main86160-78100×2supersedes 86160-60741iFJA310,VJA310,VJH310..ARL,EUR202411

AUDIO(FOR OVERSEAS MARKET)-EMV & 25SPEAKER(*MAR)

86160JSPEAKER ASSY, FRONT NO.3

main86160-60720×3supersedes 86160-60730iFJA310,VJA310,VJH310..ARL,EUR202411

AUDIO(FOR OVERSEAS MARKET)-EMV & 25SPEAKER(*MAR)

86160LSPEAKER ASSY, FRONT NO.4

main86160-11060supersedes 86160-11060iFJA310,VJA310,VJH310..CHI,GCC202411

86160PSPEAKER ASSY, FRONT NO.2

main86160-60720×2iFJA310,VJA310,VJH310..ARL,EUR202411

AUDIO(FOR OVERSEAS MARKET)-EMV & 25SPEAKER(*MAR)

9015950311

main90159-50311

9015960303

main90159-60303

9018906245

main90189-06245

7 parts on this diagram · 4 diagrams in section
