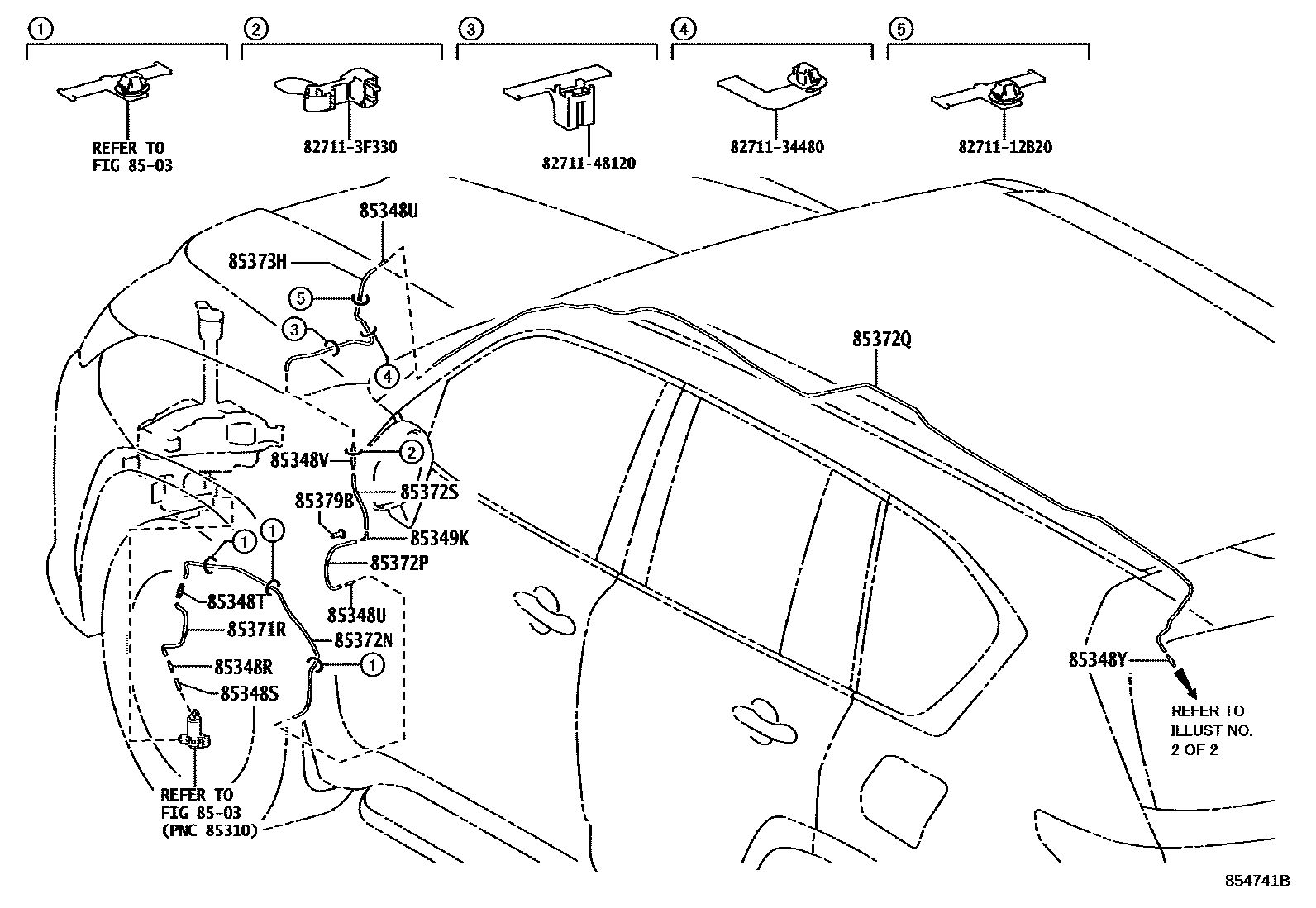

REAR WASHER
8503
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85348VJOINT, REAR WASHER HOSE, NO.4
85348YJOINT, REAR WASHER HOSE, NO.5
85349KJOINT, REAR WASHER ELBOW, NO.2
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=340
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=950
L=950,WINDSHIELD DEICER-WITHOUT
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=210,CAMBODIA SPEC
L=210,CAMBODIA SPEC&MOON ROOF-WITH(REMOTE CONTROL)
L=210,MOON ROOF-WITH(REMOTE CONTROL)
L=210,MOON ROOF-WITH(REMOTE CONTROL)&BACK MONITOR-WITH(WITH/*PVM & *MTMO)
L=210,BACK MONITOR-WITH(WITH/*PVM & *MTMO)
L=210
L=210,EGYPT SPEC
L=210,EGYPT SPEC&MOON ROOF-WITH(REMOTE CONTROL)
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
L=3300,CAMBODIA SPEC
L=3300,BACK MONITOR-WITH(WITH/*PVM & *MTMO)
L=3300
L=3300,EGYPT SPEC
L=3270,MOON ROOF-WITH(REMOTE CONTROL)&BACK MONITOR-WITH(WITH/*PVM & *MTMO)
L=3270
L=3270,EGYPT SPEC&MOON ROOF-WITH(REMOTE CONTROL)
L=3270,CAMBODIA SPEC&MOON ROOF-WITH(REMOTE CONTROL)
L=3270,MOON ROOF-WITH(REMOTE CONTROL)
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
L=200,CAMBODIA SPEC&MOON ROOF-WITH(REMOTE CONTROL)
L=200
L=200,EGYPT SPEC
L=200,EGYPT SPEC&MOON ROOF-WITH(REMOTE CONTROL)
L=200,CAMBODIA SPEC
L=200,MOON ROOF-WITH(REMOTE CONTROL)
L=200,MOON ROOF-WITH(REMOTE CONTROL)&BACK MONITOR-WITH(WITH/*PVM & *MTMO)
L=200,BACK MONITOR-WITH(WITH/*PVM & *MTMO)
85373HHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.10
L=580,BACK MONITOR-WITH(WITH/*PVM & *MTMO)
L=580
L=580,EGYPT SPEC
L=580,EGYPT SPEC&MOON ROOF-WITH(REMOTE CONTROL)
L=580,CAMBODIA SPEC
L=580,CAMBODIA SPEC&MOON ROOF-WITH(REMOTE CONTROL)
L=580,MOON ROOF-WITH(REMOTE CONTROL)
L=580,MOON ROOF-WITH(REMOTE CONTROL)&BACK MONITOR-WITH(WITH/*PVM & *MTMO)
85379BGROMMET, WASHER, A
8271112B20WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12B20
8271134480WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-34480
827113F330WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3F330
8271148120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-48120
19 parts on this diagram · 3 diagrams in section
