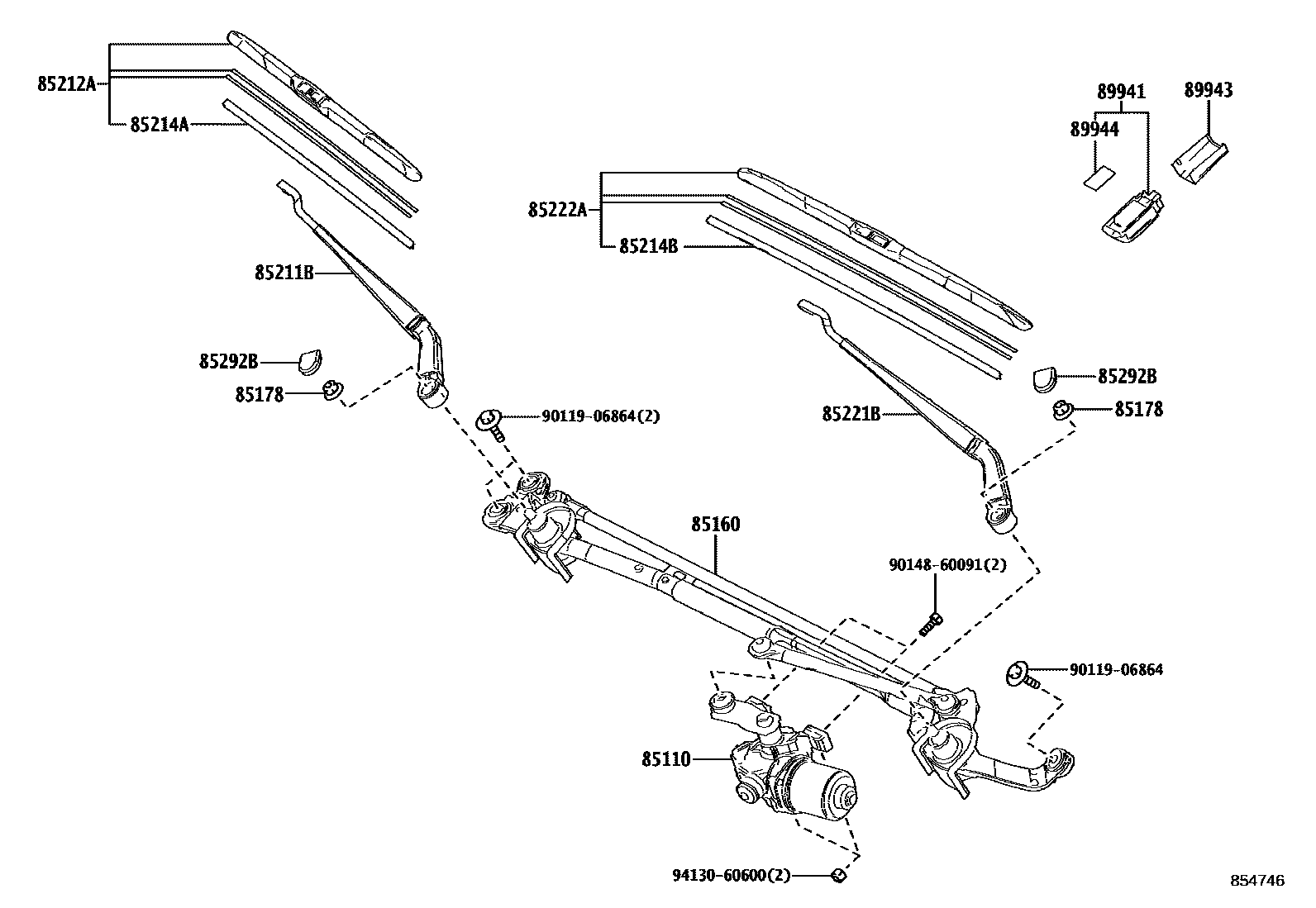

WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-60480iFJA310,VJA310..ARL202112-202411

main85110-60490iFJA310,VJA310..GCC202112-202411

main85110-60500supersedes 85110-60490iFJA310,VJA310,VJH310..CHI,EUR202411

SAUDI ARABIA SPEC

85160LINK ASSY, WINDSHIELD WIPER

main85150-60420iFJA310,VJA310..ARL202112-202411

main85150-60440iFJA310,VJA310..GCC202112-202411

main85150-60450supersedes 85150-60440iFJA310,VJA310,VJH310..CHI,EUR202411

SAUDI ARABIA SPEC

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006×2iFJA310,VJA310,VJH310202411

85211BARM, FRONT WIPER, RH

main85211-60330iFJA310,VJA310,VJH310..LHD202411

main85211-60350iFJA310,VJA310,VJH310..ARL202411

85212ABLADE, FR WIPER, RH

main85212-60230iFJA310,VJA310..ARL202112-202411

main85212-60250iFJA310,VJA310..LHD202112-202411

85214ARUBBER, WIPER, RH

main85214-30380iFJA310,VJA310..ARL202112-202411

main85214-53080iFJA310,VJA310..LHD202112-202411

85214BRUBBER, WIPER, LH

main85214-30380iFJA310,VJA310,VJH310..LHD202411

main85214-53080iFJA310,VJA310,VJH310..ARL202411

85221BARM, FRONT WIPER, LH

main85221-60350iFJA310,VJA310..ARL202112-202411

main85221-60360iFJA310,VJA310..GCC202112-202411

main85221-60370supersedes 85221-60360iFJA310,VJA310..EUR202112-202411

ARGENTINA SPEC

85222ABLADE, FR WIPER, LH

main85222-35150iFJA310,VJA310,VJH310..LHD202411

main85222-60290iFJA310,VJA310,VJH310..ARL202411

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2iFJA310,VJA310,VJH310202411

89941SENSOR, RAIN

main89941-30040iFJA310,VJA310202112-202411

main89941-78020iFJA310,VJA310,VJH310202411

89943COVER, RAIN SENSOR

main89943-60040iFJA310,VJA310202112-202411

main89943-60050iFJA310,VJA310,VJH310202411

89944TAPE, RAIN SENSOR

main89944-42020iFJA310,VJA310202112-202411

9011906864

main90119-06864

9014860091

main90148-60091

9413060600

main94130-60600

16 parts on this diagram · 2 diagrams in section
