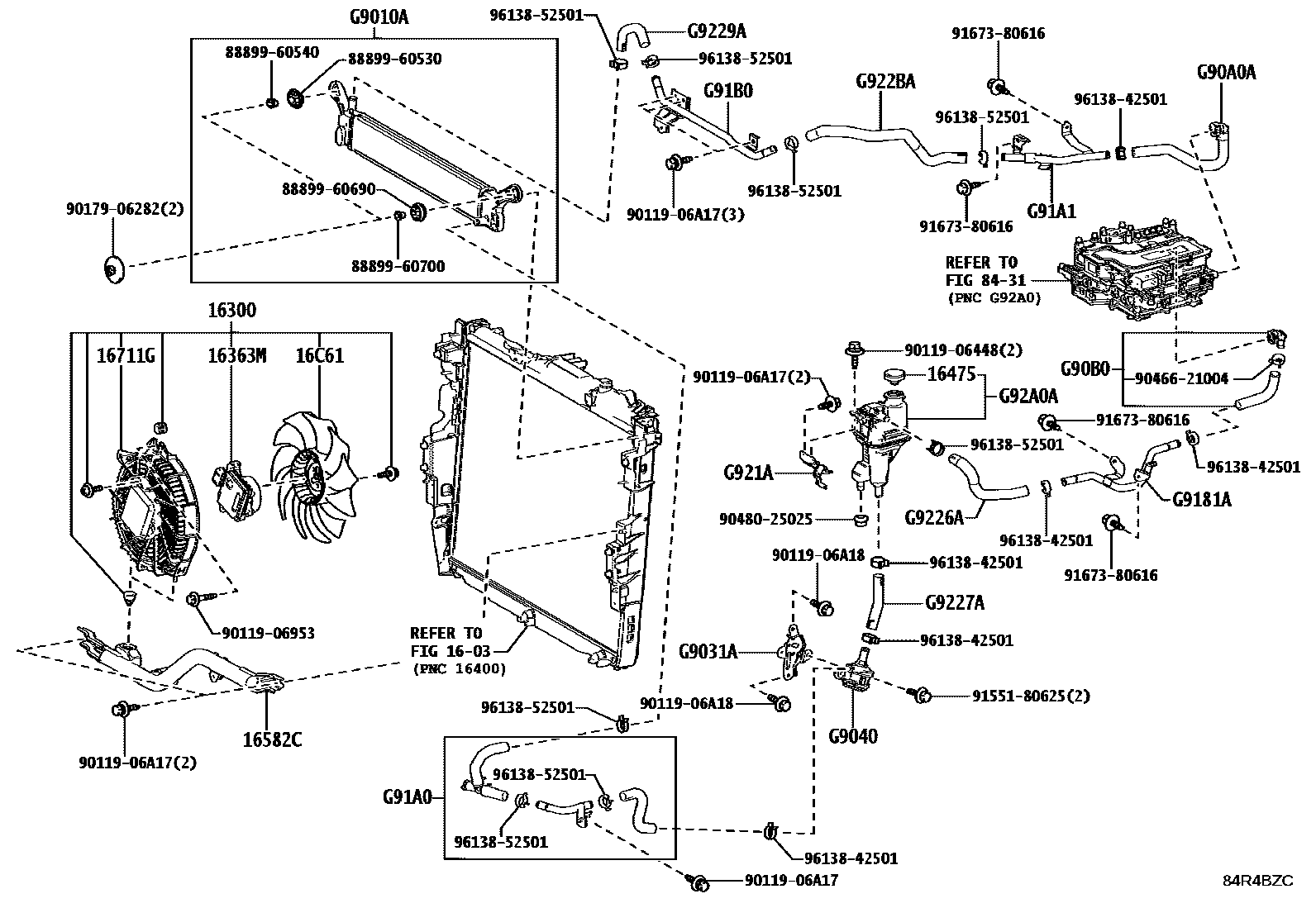

INVERTER COOLING
1603
16300FAN ASSY, W/BRACKET
16363MMOTOR, COOLING FAN W/CONTROLLER
16475CAP, RESERVE TANK
16582CBRACKET, RADIATOR, NO.1
16711GSHROUD, FAN
16C61FAN
8431
G9010ARADIATOR ASSY
G9031ABRACKET SUB-ASSY, HV WATER PUMP
G9040INVERTER WATER PUMP ASSY(W/MOTOR)
G90A0AHOSE ASSY, INVERTER COOLING, NO.1
G90B0HOSE ASSY, INVERTER COOLING, NO.2
G91A0PIPE ASSY, INVERTER COOLING, INLET
G91A1PIPE, INVERTER COOLING, INLET
G91B0PIPE ASSY, INVERTER COOLING, OUTLET
G921ABRACKET, INVERTER RESERVE TANK, NO.1
G9229AHOSE, INVERTER COOLING, NO.5
G922BAHOSE, INVERTER COOLING INLET, NO.2
G92A0ATANK ASSY, INVERTER RESERVE
8889960530COVER, EVAPORATOR
main88899-60530
8889960540COVER, EVAPORATOR
main88899-60540
8889960690COVER, EVAPORATOR
main88899-60690
8889960700COVER, EVAPORATOR
main88899-60700
9011906448
main90119-06448
9011906953
main90119-06953
9011906A17
main90119-06A17
9011906A18
main90119-06A18
9017906282
main90179-06282
9046621004
main90466-21004
9048025025
main90480-25025
9155180625
main91551-80625
9167380616
main91673-80616
9613842501
main96138-42501
9613852501
main96138-52501
38 parts on this diagram · 2 diagrams in section
