REAR COMBINATION LAMP

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-60130iFJA310,VJA310202112-202411

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-60130iFJA310,VJA310,VJH310202112-202411

6151

81496GUIDE, REAR COMBINATION LAMP

main81496-52020iFJA310,VJA310,VJH310202112-202411

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-60010iFJA310,VJA310202112-202411

81497COVER, REAR COMBINATION LAMP, RH

main81497-60050iFJA310,VJA310202112-202411

81498COVER, REAR COMBINATION LAMP, LH

main81498-60050iFJA310,VJA310202112-202411

81550LAMP ASSY, REAR COMBINATION, RH

main81550-60C50iFJA310,VJA310202112-202408

sub81550-60C51

main81550-60C51iFJA310,VJA310,VJH310202409-202411

81555GCORD, REAR COMBINATION LAMP, RH

main81555-60C50iFJA310,VJA310,VJH310202112-202411

81560ALAMP ASSY, REAR COMBINATION, LH

main81560-60C50iFJA310,VJA310202112-202408

sub81560-60C51

main81560-60C51iFJA310,VJA310,VJH310202409-202411

81565DCORD, REAR COMBINATION LAMP, LH

main81555-60C50iFJA310,VJA310,VJH310202112-202411

81580ALAMP ASSY, REAR

main81580-60450iFJA310,VJA310202112-202408

sub81580-60451

main81580-60451iFJA310,VJA310202409-202411

81582GASKET, REAR LAMP

main81582-60450iFJA310,VJA310,VJH310202112-202411

81584DGASKET, REAR LAMP

main81582-60570iFJA310,VJA310,VJH310202112-202411

81585SOCKET & WIRE, REAR LAMP

main81585-60450iFJA310,VJA310,VJH310202112-202411

9010905111

main90109-05111

9015960621

main90159-60621

9017905102

main90179-05102

9018906242

main90189-06242

9046709206

main90467-09206

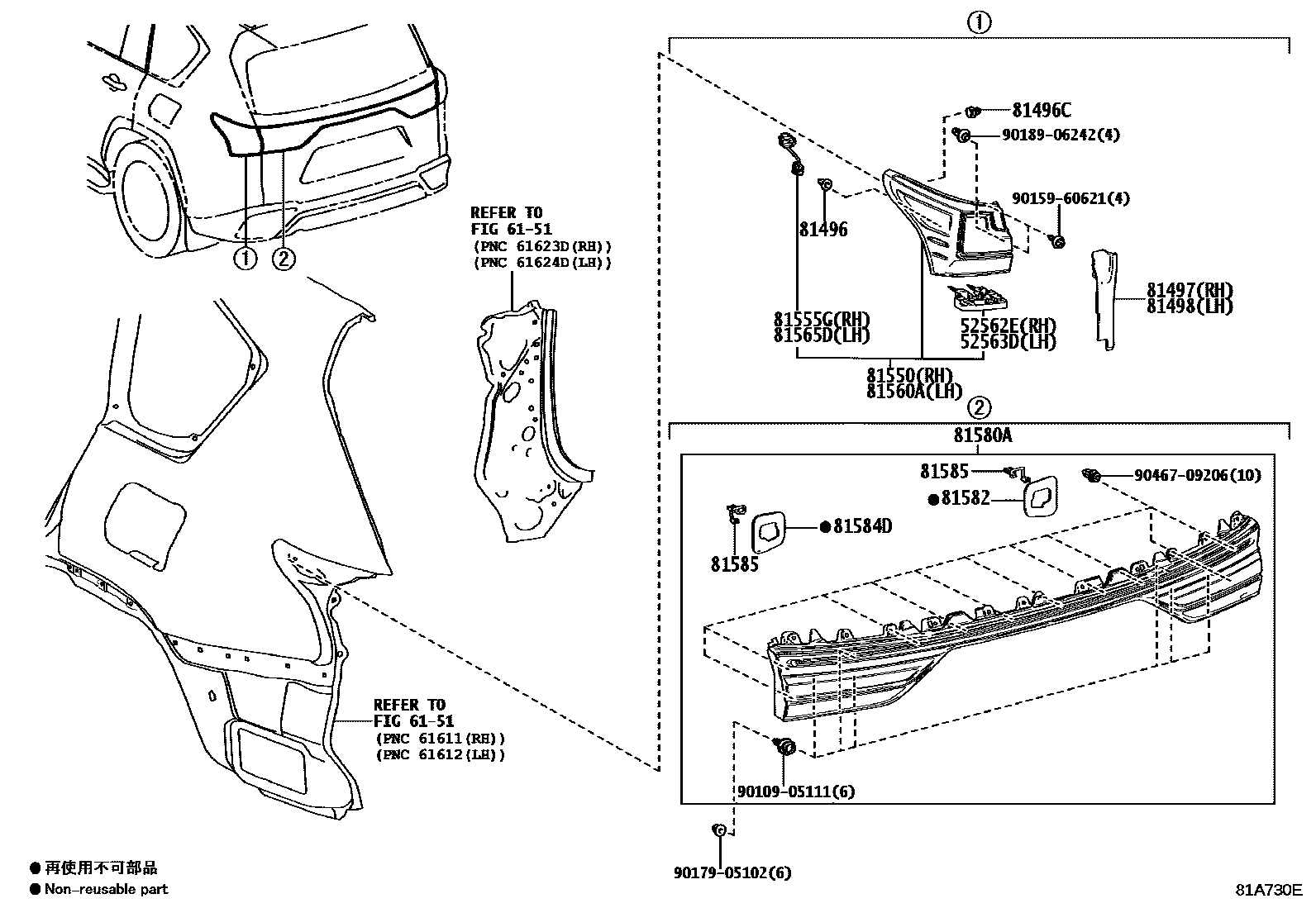

20 parts on this diagram · 1 diagram in section
