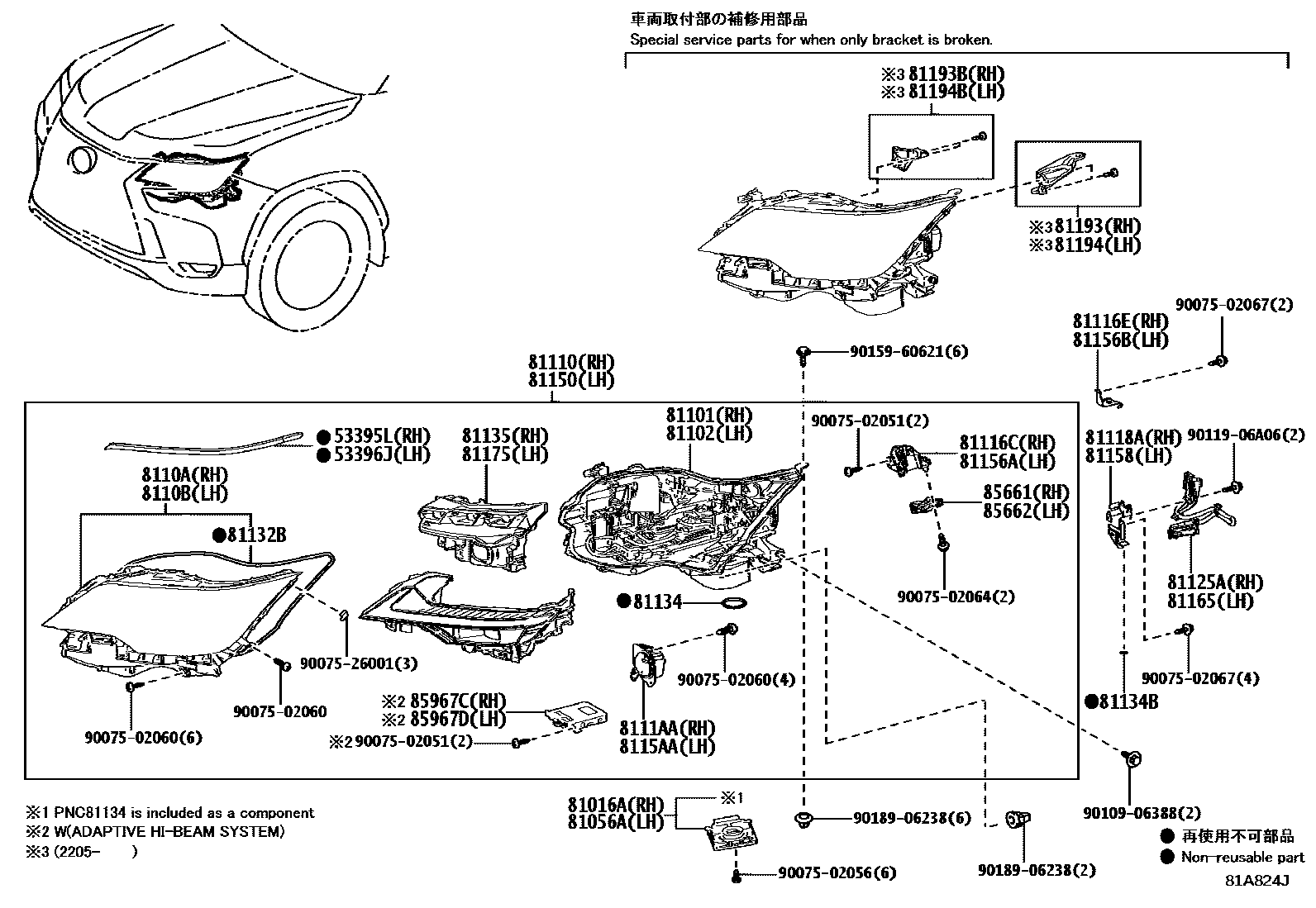

HEADLAMP

53395LSEAL, HEADLAMP, RH

main53395-60110iFJA310,VJA310,VJH310202411

53396JSEAL, HEADLAMP, LH

main53396-60090iFJA310,VJA310,VJH310202411

81016ACOMPUTER SUB-ASSY, HEADLAMP, RH

main81016-60R20iFJA310,VJA310202112-202310

main81016-60R21iFJA310,VJA310202310-202411

main81016-60R22iFJA310,VJA310,VJH310202411

main81016-60R40iFJA310,VJA310..GCC202112-202310

ACTIVE SAFETY PACKAGE-WITHOUT

main81016-60R41iVJA310..GCC202310-202411

INDIA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT

81056ACOMPUTER SUB-ASSY, HEADLAMP, LH

main81056-60R20iFJA310,VJA310202112-202310

main81056-60R21iFJA310,VJA310202310-202411

main81056-60R22iFJA310,VJA310,VJH310202411

main81056-60R40iFJA310,VJA310..GCC202112-202310

ACTIVE SAFETY PACKAGE-WITHOUT

main81056-60R41iVJA310..GCC202310-202411

INDIA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT

81101HOUSING SUB-ASSY, HEADLAMP, RH

main81101-60010iFJA310,VJA310,VJH310202411

81102HOUSING SUB-ASSY, HEADLAMP, LH

main81102-60010iFJA310,VJA310,VJH310202411

8110ALENS SUB-ASSY, HEADLAMP, RH

main8110A-60R20iFJA310,VJA310,VJH310..LHD202411

main8110A-60R30iFJA310,VJA310..ARL202112-202411

main8110A-60R40iFJA310,VJA310..GCC202112-202411

IRAQ SPEC&ACTIVE SAFETY PACKAGE-WITHOUT

main8110A-60R50iFJA310..ARL202310-202411

INDIA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT

8110BLENS SUB-ASSY, HEADLAMP, LH

main8110B-60R20iFJA310,VJA310..LHD202112-202411

main8110B-60R30iFJA310,VJA310..ARL202112-202411

main8110B-60R40iFJA310,VJA310..GCC202112-202411

IRAQ SPEC&ACTIVE SAFETY PACKAGE-WITHOUT

main8110B-60R50iFJA310..ARL202112-202310

ACTIVE SAFETY PACKAGE-WITHOUT

81110HEADLAMP ASSY, RH

main81145-60R20iFJA310,VJA310..LHD202112-202304

main81145-60R21iFJA310,VJA310..LHD202304-202310

main81145-60R22iFJA310,VJA310..LHD202310-202411

main81145-60R23iFJA310,VJA310,VJH310..LHD202411

main81145-60R30iFJA310,VJA310..ARL202112-202304

main81145-60R31iFJA310,VJA310..ARL202304-202310

main81145-60R32iFJA310,VJA310..ARL202310-202411

main81145-60R33iFJA310,VJA310,VJH310..ARL202411

main81145-60R40iFJA310,VJA310..GCC202112-202310

ACTIVE SAFETY PACKAGE-WITHOUT

main81145-60R41iFJA310,VJA310..GCC202310-202411

BELARUS SPEC&ACTIVE SAFETY PACKAGE-WITHOUT

main81145-60R50iFJA310..ARL202112-202310

ACTIVE SAFETY PACKAGE-WITHOUT

main81145-60R51iFJA310..ARL202310-202411

INDIA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT

81116CBRACKET, HEADLAMP, RH

main81116-60R20iFJA310,VJA310202112-202411

81116EBRACKET, HEADLAMP, RH NO.2

main81146-60R20iFJA310,VJA310202112-202411

81118ABRACKET, HEADLAMP, RH

main81118-60R20iFJA310,VJA310,VJH310202411

8111AAUNIT, HEADLAMP TURN SIGNAL LED, RH

main8112A-60R20iFJA310,VJA310,VJH310202411

81125ACORD, HEADLAMP, RH

main82214-60090iFJA310,VJA310202112-202411

81132BGASKET, HEADLAMP LENS

main81132-50680×2iFJA310,VJA310202112-202411

81134GASKET, HEADLAMP

main90075-23003×4iFJA310,VJA310202112-202411

81134BTAPE, HEADLAMP PLATE

main81134-60R20×2iFJA310,VJA310,VJH310202411

81135UNIT ASSY, HEADLAMP, RH

main81130-60R20iFJA310,VJA310..LHD202112-202304

main81130-60R21iFJA310,VJA310..LHD202304-202411

main81130-60R30iFJA310,VJA310..ARL202112-202304

main81130-60R31iFJA310,VJA310,VJH310..ARL202411

main81130-60R40iFJA310,VJA310..GCC202112-202411

IRAQ SPEC&ACTIVE SAFETY PACKAGE-WITHOUT

main81130-60R50iFJA310..ARL202310-202411

INDIA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT

81150HEADLAMP ASSY, LH

main81185-60R20iFJA310,VJA310..LHD202112-202304

main81185-60R21iFJA310,VJA310..LHD202304-202310

main81185-60R22iFJA310,VJA310..LHD202310-202411

main81185-60R23iFJA310,VJA310,VJH310..LHD202411

main81185-60R30iFJA310,VJA310..ARL202112-202304

main81185-60R31iFJA310,VJA310..ARL202304-202310

main81185-60R32iFJA310,VJA310..ARL202310-202411

main81185-60R33iFJA310,VJA310,VJH310..ARL202411

main81185-60R40iFJA310,VJA310..GCC202112-202310

ACTIVE SAFETY PACKAGE-WITHOUT

main81185-60R41iFJA310,VJA310..GCC202310-202411

BELARUS SPEC&ACTIVE SAFETY PACKAGE-WITHOUT

main81185-60R50iFJA310..ARL202112-202310

ACTIVE SAFETY PACKAGE-WITHOUT

main81185-60R51iFJA310..ARL202310-202411

INDIA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT

81156ABRACKET, HEADLAMP, LH

main81156-60R20iFJA310,VJA310,VJH310202411

81156BBRACKET, HEADLAMP, LH NO.2

main81186-60R20iFJA310,VJA310202112-202411

81158BRACKET, HEADLAMP, LH

main81158-60R20iFJA310,VJA310,VJH310202411

8115AAUNIT, HEADLAMP TURN SIGNAL LED, LH

main8116A-60R20iFJA310,VJA310202112-202411

81165CORD, HEADLAMP, LH

main82225-60040iFJA310,VJA310202112-202411

81175UNIT ASSY, HEADLAMP, LH

main81170-60R20iFJA310,VJA310..LHD202112-202304

main81170-60R21iFJA310,VJA310..LHD202304-202411

main81170-60R30iFJA310,VJA310..ARL202112-202304

main81170-60R31iFJA310,VJA310,VJH310..ARL202411

main81170-60R40iFJA310,VJA310..GCC202112-202411

IRAQ SPEC&ACTIVE SAFETY PACKAGE-WITHOUT

main81170-60R50iFJA310..ARL202112-202310

ACTIVE SAFETY PACKAGE-WITHOUT

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-60220iFJA310,VJA310,VJH310202411

81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

main81193-60230iFJA310,VJA310202205-202411

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-60220iFJA310,VJA310202205-202411

81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

main81194-60230iFJA310,VJA310202205-202411

85661MOTOR, HEADLAMP LEVELING, RH

main85661-45010iFJA310,VJA310,VJH310202411

85662MOTOR, HEADLAMP LEVELING, LH

main85691-45010iFJA310,VJA310,VJH310202411

85967CCOMPUTER, LIGHT CONTROL LED, RH

main85967-48040iFJA310,VJA310202112-202310

main85967-48041iFJA310,VJA310202310-202411

85967DCOMPUTER, LIGHT CONTROL LED, LH

main85967-48030iFJA310,VJA310202112-202310

main85967-48031iFJA310,VJA310202310-202411

9007502051

main90075-02051

9007502056

main90075-02056

9007502060

main90075-02060

9007502064

main90075-02064

9007502067

main90075-02067

9007526001

main90075-26001

9010906388

main90109-06388

9011906A06

main90119-06A06

9015960621

main90159-60621

9018906238

main90189-06238

43 parts on this diagram · 1 diagram in section
