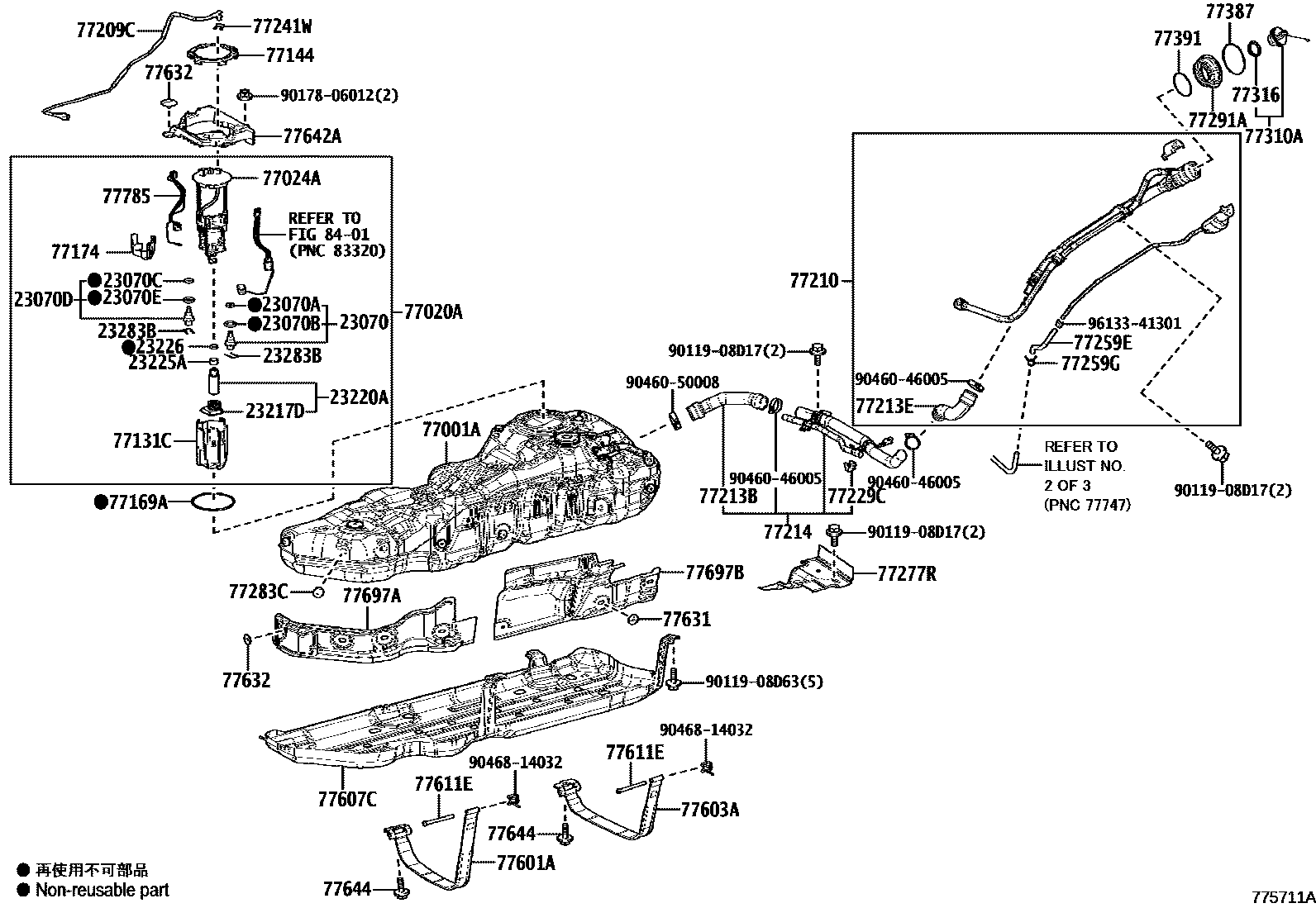

FUEL TANK & TUBE
23070VALVE ASSY, FUEL MAIN
23070ARING, O, NO.1(FOR FUEL MAIN VALVE)
23070BRING, O, NO.2(FOR FUEL MAIN VALVE)
23070CRING, O, NO.3(FOR FUEL MAIN VALVE)
23070DVALVE ASSY, FUEL MAIN, NO.2
23070ERING, O, NO.4(FOR FUEL MAIN VALVE)
23217DFILTER, FUEL PUMP
23220APUMP ASSY, FUEL W/FILTER
FUEL TANK-FOR DIESEL(WITH(SUB TANK))
23225ASPACER, FUEL PUMP
FUEL TANK-FOR DIESEL(WITH(SUB TANK))
23226RING, O(FOR FUEL PUMP)
FUEL TANK-FOR DIESEL(WITH(SUB TANK))
23283BHOLDER, FUEL PRESSURE REGULATOR
77001ATANK SUB-ASSY, FUEL
EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(OBD), WITH(EGR)&FUEL TANK-FOR DIESSEL
EXH.EMISSION CONTROL-EURO6C,WITHOUT(OBD),WITH(EGR)&FUEL TANK-FOR DIESSEL
EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)&FUEL TANK-FOR DIESSEL
FUEL TANK-FOR DIESEL(WITH(SUB TANK))
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024APLATE SUB-ASSY, FUEL SUCTION
EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)&FUEL TANK-FOR DIESSEL
EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(OBD), WITH(EGR)&FUEL TANK-FOR DIESSEL
EXH.EMISSION CONTROL-EURO6C,WITHOUT(OBD),WITH(EGR)&FUEL TANK-FOR DIESSEL
FUEL TANK-FOR DIESEL(WITH(SUB TANK)),NO.1:REFER ILLUST.
NO.1:REFER ILLUST.
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
FUEL TANK-FOR DIESEL(WITH(SUB TANK)),NO.2:REFER ILLUST.
77131CSUB-TANK, FUEL, NO.1
77144RETAINER, FUEL PUMP GAUGE
FUEL TANK-FOR HEV
77169AGASKET, FUEL SUCTION TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
77210PIPE ASSY, FUEL TANK FILLER
77213BHOSE, FUEL TANK TO FILLER PIPE
EXH.EMISSION CONTROL-EURO6C,WITHOUT(OBD),WITH(EGR)&FUEL TANK-FOR DIESSEL
VIETNAM SPEC
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6, WITH(ON BOARD DIAGNOSIS & EGR)
CHILE SPEC&EXH.EMISSION CONTROL-EURO6C,WITHOUT(OBD),WITH(EGR)
MONGOLIA SPEC
EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)&FUEL TANK-FOR DIESSEL
EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(OBD), WITH(EGR)&FUEL TANK-FOR DIESSEL
FUEL TANK-FOR DIESEL(WITH(SUB TANK))
MEXICO SPEC
FUEL TANK-FOR HEV
77213EHOSE, FUEL TANK TO FILLER PIPE
77214PIPE, FUEL TANK FILLER
CHILE SPEC&EXH.EMISSION CONTROL-EURO6C,WITHOUT(OBD),WITH(EGR)
EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)&FUEL TANK-FOR DIESSEL
EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(OBD), WITH(EGR)&FUEL TANK-FOR DIESSEL
EXH.EMISSION CONTROL-EURO6C,WITHOUT(OBD),WITH(EGR)&FUEL TANK-FOR DIESSEL
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6, WITH(ON BOARD DIAGNOSIS & EGR)
VIETNAM SPEC
MONGOLIA SPEC
FUEL TANK-FOR DIESEL(WITH(SUB TANK))
FUEL TANK-FOR DIESEL(WITH(SUB TANK))
77229CCLAMP, BREATHER TUBE
EXH.EMISSION CONTROL-EURO6C,WITHOUT(OBD),WITH(EGR)&FUEL TANK-FOR DIESSEL
FUEL TANK-FOR HEV
FUEL TANK-FOR DIESSEL
EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(OBD), WITH(EGR)&FUEL TANK-FOR DIESSEL
EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)&FUEL TANK-FOR DIESSEL
77241WCLIP, TUBE JOINT
FUEL TANK-FOR HEV
NO.3:REFER ILLUST.
FUEL TANK-FOR DIESEL(WITH(SUB TANK)),NO.3:REFER ILLUST.
FUEL TANK-FOR GASOLINE(WITH(SUB TANK))
MEXICO SPEC&FUEL TANK-FOR GASOLINE
VIETNAM SPEC&FUEL TANK-FOR GASOLINE
MONGOLIA SPEC&FUEL TANK-FOR GASOLINE
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
77259GCLIP, FUEL HOSE
77277RPROTECTOR, FUEL TANK FILLER PIPE
FUEL TANK-FOR DIESSEL
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6, WITH(ON BOARD DIAGNOSIS & EGR)&FUEL TANK-FOR DIESEL(WITH(SUB TANK))
FUEL TANK-FOR DIESEL(WITH(SUB TANK))
FUEL TANK-FOR DIESEL(WITH(SUB TANK))
FUEL TANK-FOR HEV
EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)&FUEL TANK-FOR DIESSEL
EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(OBD), WITH(EGR)&FUEL TANK-FOR DIESSEL
EXH.EMISSION CONTROL-EURO6C,WITHOUT(OBD),WITH(EGR)&FUEL TANK-FOR DIESSEL
77283CBRACKET, FUEL TANK PROTECTOR
77291ASHIELD, FUEL TANK FILLER PIPE
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77387RING, FUEL INLET BOX
77391RING, FUEL INLET BOX
77601ABAND SUB-ASSY, FUEL TANK, NO.1
CHILE SPEC&FUEL TANK-FOR DIESEL(WITH(SUB TANK))
MONGOLIA SPEC
MEXICO SPEC
VIETNAM SPEC
CHILE SPEC
77603ABAND SUB-ASSY, FUEL TANK, NO.2
MEXICO SPEC
VIETNAM SPEC
CHILE SPEC
MONGOLIA SPEC
CHILE SPEC&FUEL TANK-FOR DIESEL(WITH(SUB TANK))
77607CPROTECTOR SUB-ASSY, FUEL TANK, NO.2
77611EPIN, FUEL TANK BAND
FUEL TANK-FOR GASOLINE(WITH(SUB TANK))
FUEL TANK-FOR DIESEL(WITH(SUB TANK))
FUEL TANK-FOR DIESSEL
FUEL TANK-FOR HEV
MEXICO SPEC&FUEL TANK-FOR GASOLINE(WITH(SUB TANK))
VIETNAM SPEC&FUEL TANK-FOR GASOLINE(WITH(SUB TANK))
MONGOLIA SPEC&FUEL TANK-FOR GASOLINE(WITH(SUB TANK))
CHILE SPEC&FUEL TANK-FOR DIESEL(WITH(SUB TANK))
MEXICO SPEC&FUEL TANK-FOR GASOLINE
VIETNAM SPEC&FUEL TANK-FOR GASOLINE
MONGOLIA SPEC&FUEL TANK-FOR GASOLINE
77631BRACKET, FUEL TANK, NO.1
77632BRACKET, FUEL TANK, NO.2
77642APROTECTOR, FUEL TANK, NO.2
77644BOLT, FUEL TANK
FUEL TANK-FOR GASOLINE(WITH(SUB TANK))
FUEL TANK-FOR DIESSEL
FUEL TANK-FOR HEV
FUEL TANK-FOR DIESEL(WITH(SUB TANK))
MEXICO SPEC&FUEL TANK-FOR GASOLINE(WITH(SUB TANK))
VIETNAM SPEC&FUEL TANK-FOR GASOLINE(WITH(SUB TANK))
MONGOLIA SPEC&FUEL TANK-FOR GASOLINE(WITH(SUB TANK))
CHILE SPEC&FUEL TANK-FOR DIESEL(WITH(SUB TANK))
MEXICO SPEC&FUEL TANK-FOR GASOLINE
VIETNAM SPEC&FUEL TANK-FOR GASOLINE
MONGOLIA SPEC&FUEL TANK-FOR GASOLINE
77697INSULATOR, FUEL TANK HEAT, NO.1
FUEL TANK-FOR DIESEL(WITH(SUB TANK))
FUEL TANK-FOR DIESEL(WITH(SUB TANK))
FUEL TANK-FOR HEV
77697AINSULATOR, FUEL TANK HEAT, NO.2
77697BINSULATOR, FUEL TANK HEAT, NO.3
77785HARNESS, FUEL PUMP
FUEL TANK-FOR DIESEL(WITH(SUB TANK))
8401
9011908D17
9011908D63
9017806012
9046046005
9046050008
9046814032
9613341301
54 parts on this diagram · 16 diagrams in section
