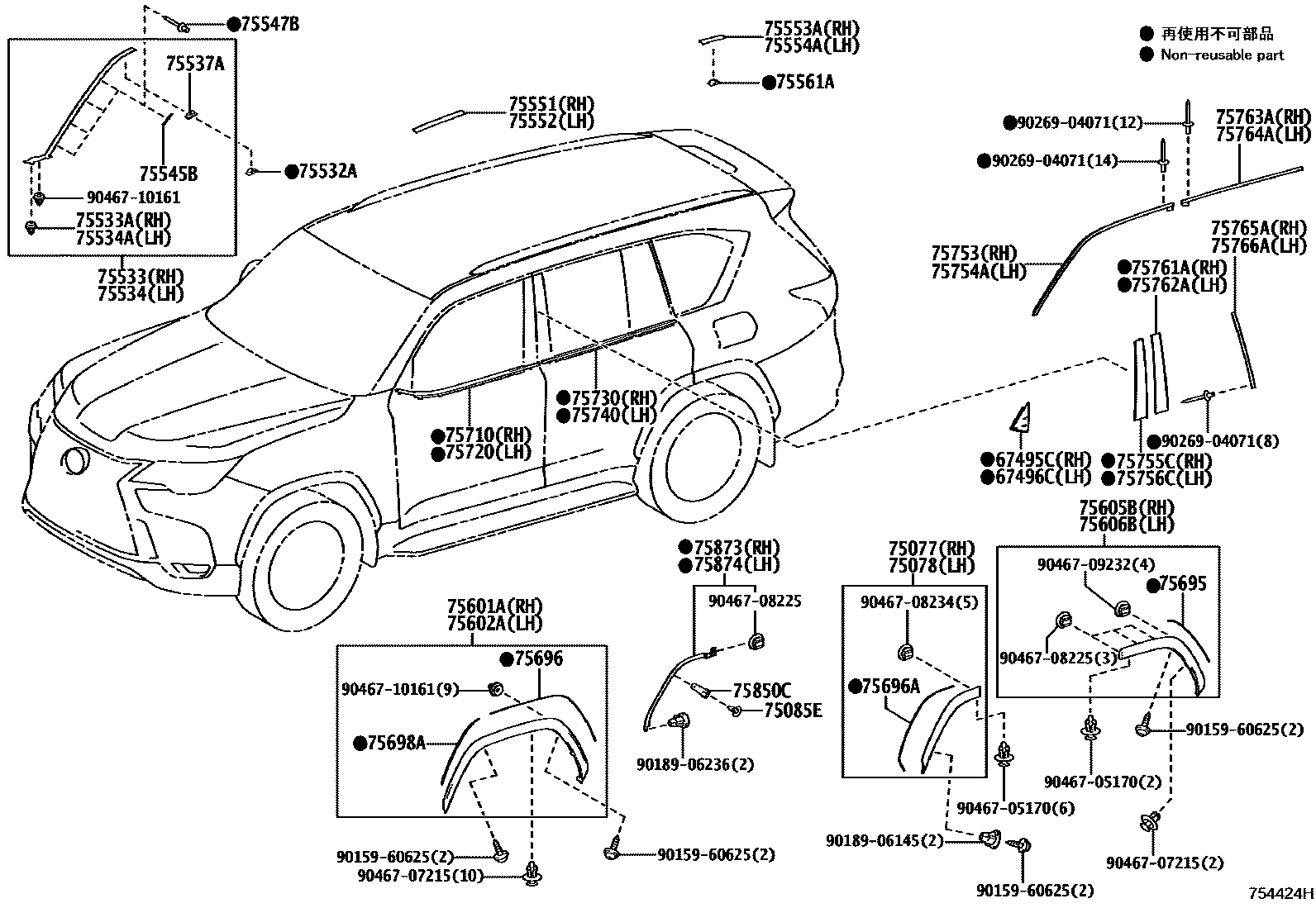

MOULDING
67495CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
67496CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH
75077MOULDING SUB-ASSY, REAR DOOR OUTSIDE LOWER RH
SONIC QUARTZ,085
WHITE NOVA GF.,083
SONIC TITANIUM,1J7
MANGANESE LUSTER,1K2
BLACK,202
GRAPHITE BLACK GF.,223
TERRANE KHAKI M.M.,6X4
SONIC QUARTZ,085
WHITE NOVA GF.,083
F-SPORT&F-SPORT PACKAGE(ACCESSORY),SONIC TITANIUM,1J7
F-SPORT&F-SPORT PACKAGE(ACCESSORY),MANGANESE LUSTER,1K2
BLACK,085 ,1J7 ,1K2 ,223 ,4Z1 ,6X4
GRAPHITE BLACK GF.,223
TERRANE KHAKI M.M.,6X4
75078MOULDING SUB-ASSY, REAR DOOR OUTSIDE LOWER LH
SONIC QUARTZ,085
WHITE NOVA GF.,083
SONIC TITANIUM,1J7
MANGANESE LUSTER,1K2
BLACK,202
GRAPHITE BLACK GF.,223
TERRANE KHAKI M.M.,6X4
SONIC QUARTZ,085
WHITE NOVA GF.,083
F-SPORT&F-SPORT PACKAGE(ACCESSORY),SONIC TITANIUM,1J7
F-SPORT&F-SPORT PACKAGE(ACCESSORY),MANGANESE LUSTER,1K2
BLACK,085 ,1J7 ,1K2 ,223 ,4Z1 ,6X4
GRAPHITE BLACK GF.,223
TERRANE KHAKI M.M.,6X4
75085ESCREW, NO.1
75532ACLIP, WINDSHIELD MOULDING SET
75533MOULDING, WINDSHIELD, OUTSIDE RH
75533ACLIP, WINDSHIELD SIDE MOULDING, RH
75534MOULDING, WINDSHIELD, OUTSIDE LH
75534ACLIP, WINDSHIELD SIDE MOULDING, LH
75537APAD, WINDSHIELD MOULDING
75545BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.1
75547BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.3
75551MOULDING, ROOF DRIP SIDE FINISH, RH
NO PAINT REQ.
75552MOULDING, ROOF DRIP SIDE FINISH, LH
NO PAINT REQ.
75553AMOULDING, ROOF DRIP SIDE FINISH, REAR RH
75554AMOULDING, ROOF DRIP SIDE FINISH, REAR LH
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
75601AMOULDING SUB-ASSY, FRONT FENDER, RH
SONIC QUARTZ,085
WHITE NOVA GF.,083
SONIC TITANIUM,1J7
MANGANESE LUSTER,1K2
BLACK,202
GRAPHITE BLACK GF.,223
TERRANE KHAKI M.M.,6X4
75602AMOULDING SUB-ASSY, FRONT FENDER, LH
SONIC QUARTZ,085
WHITE NOVA GF.,083
SONIC TITANIUM,1J7
MANGANESE LUSTER,1K2
BLACK,085 ,1J7 ,1K2 ,223 ,4Z1 ,6X4
GRAPHITE BLACK GF.,223
TERRANE KHAKI M.M.,6X4
75605BMOULDING SUB-ASSY, QUARTER OUTSIDE, RH
SONIC QUARTZ,085
WHITE NOVA GF.,083
SONIC TITANIUM,1J7
MANGANESE LUSTER,1K2
BLACK,202
GRAPHITE BLACK GF.,223
TERRANE KHAKI M.M.,6X4
75606BMOULDING SUB-ASSY, QUARTER OUTSIDE, LH
SONIC QUARTZ,085
WHITE NOVA GF.,083
SONIC TITANIUM,1J7
MANGANESE LUSTER,1K2
BLACK,202
GRAPHITE BLACK GF.,223
TERRANE KHAKI M.M.,6X4
75695PAD, QUARTER OUTSIDE MOULDING
75696PAD, BODY OUTSIDE MOULDING, NO.1
75696APAD, BODY OUTSIDE MOULDING
75698APAD, BODY OUTSIDE MOULDING, NO.3
75710MOULDING ASSY, FRONT DOOR BELT, RH
UKRAINE SPEC
"EXECUTIVE"&BLACK EXTERIOR PACKAGE
75720MOULDING ASSY, FRONT DOOR BELT, LH
UKRAINE SPEC
"EXECUTIVE"&BLACK EXTERIOR PACKAGE
75730MOULDING ASSY, REAR DOOR BELT, RH
BLACK EXTERIOR PACKAGE
75740MOULDING ASSY, REAR DOOR BELT, LH
BLACK EXTERIOR PACKAGE
75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
NO PAINT REQ.
NO PAINT REQ.,OVER TRAIL PACKAGE
75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
NO PAINT REQ.
NO PAINT REQ.,OVER TRAIL PACKAGE
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
NO PAINT REQ.
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
NO PAINT REQ.
75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH
NO PAINT REQ.
75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH
NO PAINT REQ.
75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH
BLACK EXTERIOR PACKAGE
75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH
BLACK EXTERIOR PACKAGE
75765AMOULDING, REAR DOOR WINDOW FRAME, REAR RH
75766AMOULDING, REAR DOOR WINDOW FRAME, REAR LH
75850CGROMMET, NO.1
75873MOULDING, QUARTER PANEL WHEEL OPENING, RH
75874MOULDING, QUARTER PANEL WHEEL OPENING, LH
9015960625
main90159-60625
9018906145
main90189-06145
9018906236
main90189-06236
9026904071
main90269-04071
9046705170
main90467-05170
9046707215
main90467-07215
9046708225
main90467-08225
9046708234
main90467-08234
9046709232
main90467-09232
9046710161
main90467-10161
53 parts on this diagram · 1 diagram in section
