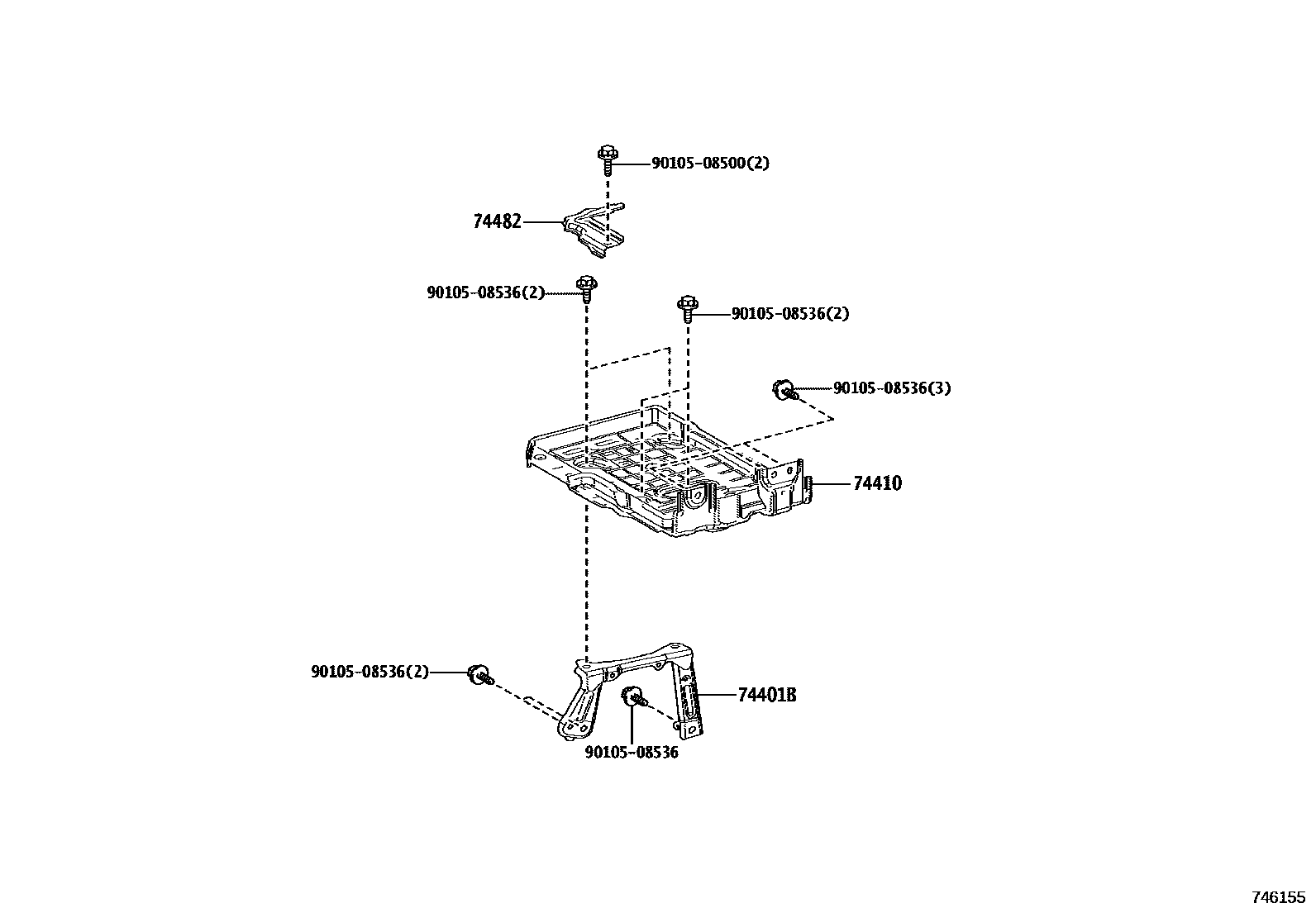

BATTERY CARRIER

0001 1 0002 1 0003 1

74401BBRACKET SUB-ASSY, BATTERY CARRIER

main74401-60080iFJA310,VJA310..LHD202112-202411

main74401-60090iFJA310,VJA310..ARL202112-202411

74410CARRIER ASSY, BATTERY

main74410-60010iFJA310..EUR202112-202411

main74410-60040iFJA310,VJA310..ARL202112-202411

main74410-60050iFJA310..EUR202112-202411

WITHOUT(COLD AREA SPEC)

74482CLAMP, BATTERY, NO.2

main74482-60060iFJA310,VJA310..ARL202112-202411

9010508500

main90105-08500

9010508536

main90105-08536

5 parts on this diagram · 3 diagrams in section
