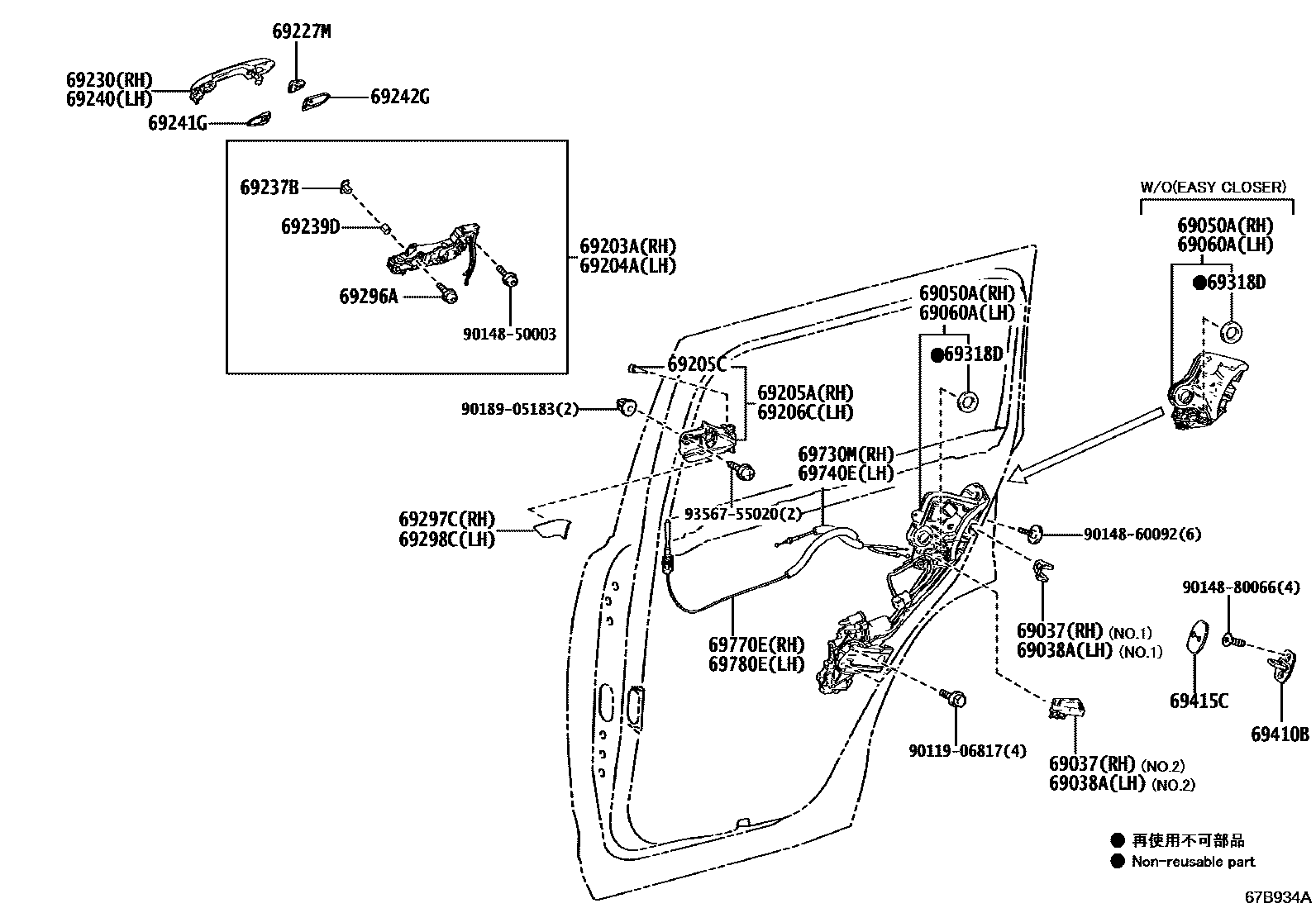

REAR DOOR LOCK & HANDLE
69037COVER SUB-ASSY, REAR DOOR LOCK, RH
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
MONGOLIA SPEC
CHILE SPEC
VIETNAM SPEC
MONGOLIA SPEC
VIETNAM SPEC
CHILE SPEC
MEXICO SPEC
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
MONGOLIA SPEC
VIETNAM SPEC
CHILE SPEC
MEXICO SPEC
VIETNAM SPEC
CHILE SPEC
MONGOLIA SPEC
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69227MCOVER, REAR DOOR OUTSIDE HANDLE
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
MEXICO SPEC,WHITE NOVA GF.,083
WHITE NOVA GF.,083
UKRAINE SPEC,WHITE NOVA GF.,083
VIETNAM SPEC,WHITE NOVA GF.,083
CHILE SPEC,WHITE NOVA GF.,083
MONGOLIA SPEC,WHITE NOVA GF.,083
MOLDOVA SPEC,WHITE NOVA GF.,083
UKRAINE SPEC,SONIC QUARTZ,085
SONIC QUARTZ,085
MONGOLIA SPEC,SONIC QUARTZ,085
CHILE SPEC,SONIC QUARTZ,085
VIETNAM SPEC,SONIC QUARTZ,085
MEXICO SPEC,SONIC QUARTZ,085
MOLDOVA SPEC,SONIC QUARTZ,085
SONIC TITANIUM,1J7
UKRAINE SPEC,SONIC TITANIUM,1J7
VIETNAM SPEC,SONIC TITANIUM,1J7
CHILE SPEC,SONIC TITANIUM,1J7
MONGOLIA SPEC,SONIC TITANIUM,1J7
MOLDOVA SPEC,SONIC TITANIUM,1J7
MEXICO SPEC,SONIC TITANIUM,1J7
MANGANESE LUSTER,1K2
MOLDOVA SPEC,MANGANESE LUSTER,1K2
MONGOLIA SPEC,MANGANESE LUSTER,1K2
CHILE SPEC,MANGANESE LUSTER,1K2
VIETNAM SPEC,MANGANESE LUSTER,1K2
UKRAINE SPEC,MANGANESE LUSTER,1K2
MEXICO SPEC,MANGANESE LUSTER,1K2
MEXICO SPEC,BLACK,085 ,1J7 ,1K2 ,202 ,6X4
CHILE SPEC,BLACK,085 ,1J7 ,1K2 ,202 ,6X4
MONGOLIA SPEC,BLACK,085 ,1J7 ,1K2 ,202 ,6X4
BLACK,085 ,1J7 ,1K2 ,202 ,6X4
BLACK,202
UKRAINE SPEC,BLACK,085 ,1J7 ,1K2 ,202 ,6X4
MOLDOVA SPEC,BLACK,085 ,1J7 ,1K2 ,202 ,6X4
VIETNAM SPEC,BLACK,085 ,1J7 ,1K2 ,202 ,6X4
MONGOLIA SPEC,GRAPHITE BLACK GF.,223
CHILE SPEC,GRAPHITE BLACK GF.,223
VIETNAM SPEC,GRAPHITE BLACK GF.,223
MEXICO SPEC,GRAPHITE BLACK GF.,223
MOLDOVA SPEC,GRAPHITE BLACK GF.,223
UKRAINE SPEC,GRAPHITE BLACK GF.,223
GRAPHITE BLACK GF.,223
MEXICO SPEC,TERRANE KHAKI M.M.,6X4
TERRANE KHAKI M.M.,6X4
UKRAINE SPEC,TERRANE KHAKI M.M.,6X4
VIETNAM SPEC,TERRANE KHAKI M.M.,6X4
CHILE SPEC,TERRANE KHAKI M.M.,6X4
MONGOLIA SPEC,TERRANE KHAKI M.M.,6X4
MOLDOVA SPEC,TERRANE KHAKI M.M.,6X4
WHITE NOVA GF.,083
SONIC QUARTZ,085
SONIC TITANIUM,1J7
MANGANESE LUSTER,1K2
BLACK,085 ,1J7 ,1K2 ,202 ,223 ,6X4
GRAPHITE BLACK GF.,223
TERRANE KHAKI M.M.,6X4
69237BNUT, REAR DOOR HANDLE
sub69237-0E010
69239DBUSH, REAR DOOR HANDLE
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
CHILE SPEC,WHITE NOVA GF.,083
VIETNAM SPEC,WHITE NOVA GF.,083
MEXICO SPEC,WHITE NOVA GF.,083
MOLDOVA SPEC,WHITE NOVA GF.,083
UKRAINE SPEC,WHITE NOVA GF.,083
WHITE NOVA GF.,083
MONGOLIA SPEC,WHITE NOVA GF.,083
SONIC QUARTZ,085
MONGOLIA SPEC,SONIC QUARTZ,085
CHILE SPEC,SONIC QUARTZ,085
VIETNAM SPEC,SONIC QUARTZ,085
MEXICO SPEC,SONIC QUARTZ,085
MOLDOVA SPEC,SONIC QUARTZ,085
UKRAINE SPEC,SONIC QUARTZ,085
CHILE SPEC,SONIC TITANIUM,1J7
SONIC TITANIUM,1J7
UKRAINE SPEC,SONIC TITANIUM,1J7
VIETNAM SPEC,SONIC TITANIUM,1J7
MONGOLIA SPEC,SONIC TITANIUM,1J7
MOLDOVA SPEC,SONIC TITANIUM,1J7
MEXICO SPEC,SONIC TITANIUM,1J7
CHILE SPEC,MANGANESE LUSTER,1K2
VIETNAM SPEC,MANGANESE LUSTER,1K2
UKRAINE SPEC,MANGANESE LUSTER,1K2
MANGANESE LUSTER,1K2
MOLDOVA SPEC,MANGANESE LUSTER,1K2
MONGOLIA SPEC,MANGANESE LUSTER,1K2
MEXICO SPEC,MANGANESE LUSTER,1K2
VIETNAM SPEC,BLACK,085 ,1J7 ,1K2 ,202 ,6X4
CHILE SPEC,BLACK,085 ,1J7 ,1K2 ,202 ,6X4
MONGOLIA SPEC,BLACK,085 ,1J7 ,1K2 ,202 ,6X4
BLACK,085 ,1J7 ,1K2 ,202 ,6X4
BLACK,202
UKRAINE SPEC,BLACK,085 ,1J7 ,1K2 ,202 ,6X4
MOLDOVA SPEC,BLACK,085 ,1J7 ,1K2 ,202 ,6X4
MEXICO SPEC,BLACK,085 ,1J7 ,1K2 ,202 ,6X4
MONGOLIA SPEC,GRAPHITE BLACK GF.,223
GRAPHITE BLACK GF.,223
UKRAINE SPEC,GRAPHITE BLACK GF.,223
VIETNAM SPEC,GRAPHITE BLACK GF.,223
CHILE SPEC,GRAPHITE BLACK GF.,223
MOLDOVA SPEC,GRAPHITE BLACK GF.,223
MEXICO SPEC,GRAPHITE BLACK GF.,223
VIETNAM SPEC,TERRANE KHAKI M.M.,6X4
MONGOLIA SPEC,TERRANE KHAKI M.M.,6X4
TERRANE KHAKI M.M.,6X4
UKRAINE SPEC,TERRANE KHAKI M.M.,6X4
MOLDOVA SPEC,TERRANE KHAKI M.M.,6X4
MEXICO SPEC,TERRANE KHAKI M.M.,6X4
CHILE SPEC,TERRANE KHAKI M.M.,6X4
WHITE NOVA GF.,083
SONIC QUARTZ,085
SONIC TITANIUM,1J7
MANGANESE LUSTER,1K2
BLACK,085 ,1J7 ,1K2 ,202 ,223 ,6X4
GRAPHITE BLACK GF.,223
TERRANE KHAKI M.M.,6X4
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69296ASCREW, DOOR INSIDE HANDLE
69297CBEZEL, DOOR INSIDE HANDLE, NO.2 RH
69298CBEZEL, DOOR INSIDE HANDLE, NO.2 LH
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69415CCOVER, DOOR LOCK STRIKER, REAR
69730MCABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69740ECABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69770ECABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69780ECABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
9011906817
main90119-06817
9014850003
main90148-50003
9014860092
main90148-60092
9014880066
main90148-80066
9018905183
main90189-05183
9356755020
main93567-55020
32 parts on this diagram · 1 diagram in section
