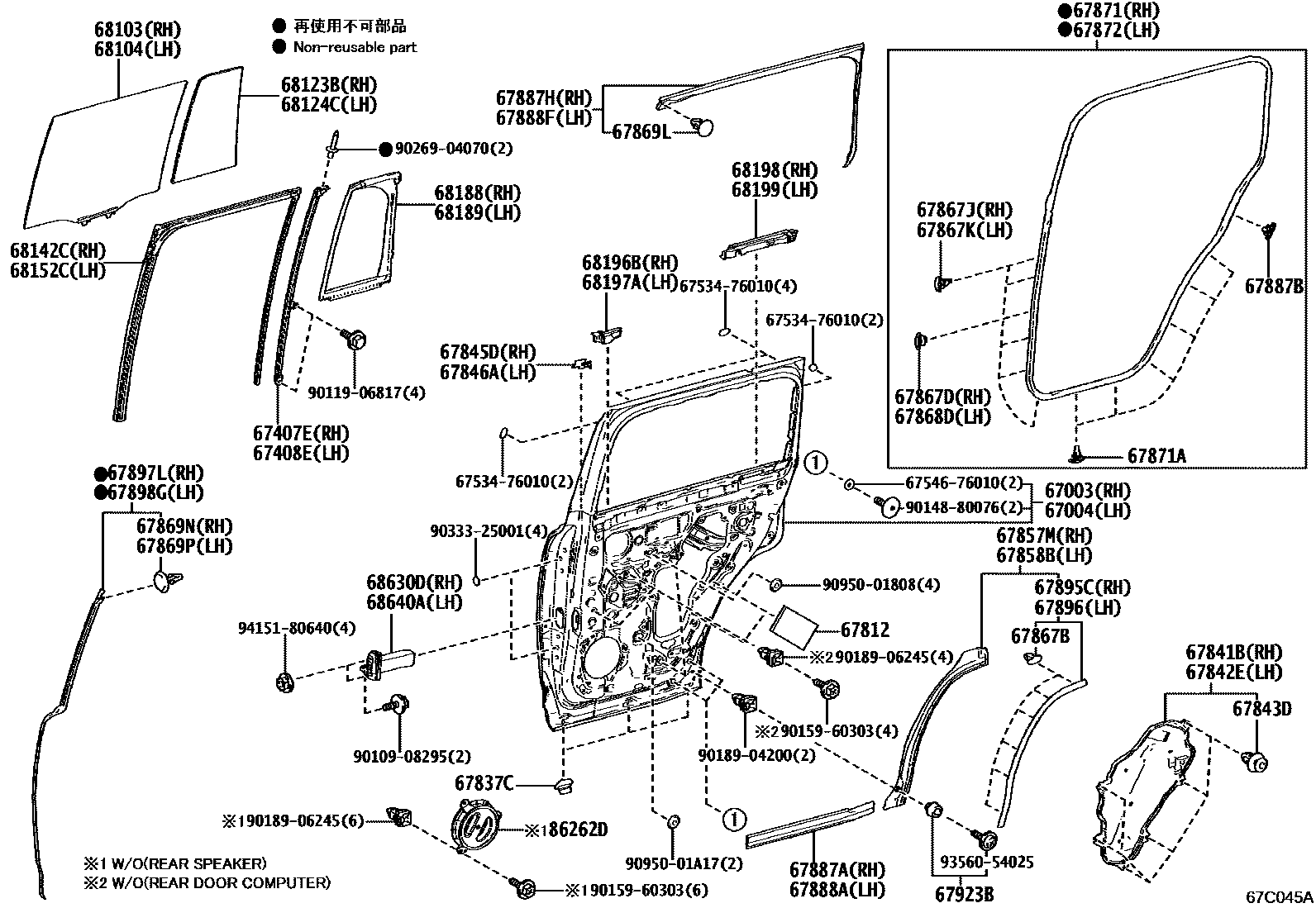

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-60930iFJA310,VJA310,VJH310¥83,700202112-202411

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-60930iFJA310,VJA310,VJH310¥83,700202112-202411

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-60100iFJA310,VJA310,VJH310¥2,390202112-202411

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-60100iFJA310,VJA310,VJH310¥2,390202112-202411

67812PAD, REAR DOOR SILENCER

main67816-60070iFJA310,VJA310,VJH310¥3,360202112-202411

67837CSEAL, REAR DOOR DUST PROOF

main67837-60090iFJA310,VJA310,VJH310¥80202112-202411

67841BCOVER, REAR DOOR SERVICE HOLE

main67841-60150iFJA310,VJA310,VJH310¥4,360202112-202411

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-60100iFJA310,VJA310,VJH310¥4,360202112-202411

67843DCLIP, REAR DOOR SERVICE HOLE

main90467-09206iFJA310,VJA310,VJH310¥80202112-202411

67845DSEAL, REAR DOOR FRONT OUTSIDE, RH

main67845-60010iFJA310,VJA310,VJH310¥200202112-202411

67846ASEAL, REAR DOOR FRONT OUTSIDE, LH

main67846-60020iFJA310,VJA310,VJH310¥200202112-202411

67857MPROTECTOR, REAR DOOR PANEL, RH

main67850-60010iFJA310,VJA310,VJH310¥3,060202112-202411

67858BPROTECTOR, REAR DOOR PANEL, LH

main67860-60010iFJA310,VJA310,VJH310¥3,060202112-202411

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main53145-60030iFJA310,VJA310,VJH310¥80202112-202411

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-50140iFJA310,VJA310,VJH310¥100202112-202411

67867JCLIP, DOOR WEATHERSTRIP, RH(FOR REAR DOOR)

main67867-50170iFJA310,VJA310,VJH310¥100202112-202411

67867KCLIP, DOOR WEATHERSTRIP, LH(FOR REAR DOOR)

main67867-50170iFJA310,VJA310,VJH310¥100202112-202411

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-50140iFJA310,VJA310,VJH310¥100202112-202411

67869LCLIP, REAR DOOR WEATHERSTRIP

main67869-33030iFJA310,VJA310,VJH310¥100202112-202411

67869NCLIP, REAR DOOR WEATHERSTRIP, RH

main67869-33030iFJA310,VJA310,VJH310¥100202112-202411

67869PCLIP, REAR DOOR WEATHERSTRIP, LH

main67869-33030iFJA310,VJA310¥100202112-202411

67871WEATHERSTRIP, REAR DOOR, RH

main67871-60140iFJA310,VJA310¥4,180202112-202411

67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)

main67867-12150iFJA310,VJA310¥100202112-202411

67872WEATHERSTRIP, REAR DOOR, LH

main67872-60140iFJA310,VJA310¥4,180202112-202411

67887AWEATHERSTRIP, REAR DOOR, NO.2 RH

main62335-60040iFJA310,VJA310¥1,610202112-202411

67887BCLIP(FOR REAR DOOR WEATHERSTRIP)

main90467-04034iFJA310,VJA310,VJH310¥60202112-202411

67887HWEATHERSTRIP, REAR DOOR, NO.2 RH

main67887-60031iFJA310,VJA310¥2,130202112-202311

sub67887-60032¥1,940

main67887-60032iFJA310,VJA310,VJH310¥1,940202312-202411

67888AWEATHERSTRIP, REAR DOOR, NO.2 LH

main62336-60030iFJA310,VJA310¥1,610202112-202411

67888FWEATHERSTRIP, REAR DOOR, NO.2 LH

main67888-60031iFJA310,VJA310¥2,130202112-202311

sub67888-60032¥1,940

main67888-60032iFJA310,VJA310¥1,940202312-202411

67895CWEATHERSTRIP, REAR DOOR, NO.3 RH

main67895-60060iFJA310,VJA310¥1,280202112-202411

67896WEATHERSTRIP, REAR DOOR, NO.3 LH

main67896-60060iFJA310,VJA310¥1,280202112-202411

67897LWEATHERSTRIP, REAR DOOR, NO.4 RH

main67897-60020iFJA310,VJA310¥1,940202112-202411

67898GWEATHERSTRIP, REAR DOOR, NO.4 LH

main67898-60020iFJA310,VJA310¥1,940202112-202411

67923BCUSHION, REAR DOOR STIFFENER, NO.1

main67923-48060iFJA310,VJA310¥190202112-202411

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-60520iFJA310,VJA310..ARL¥46,600202112-202408

REAR SIDE GLASS-PRIVACY(GRAY)

main68103-60521iFJA310,VJA310..ARL¥42,300202409-202411

REAR SIDE GLASS-PRIVACY(GRAY)

main68103-60530iVJA310..ARL202112-202411

INDIA SPEC

main68103-60530iFJA310,VJA310,VJH310..EUR,GCC202112-202411

BRUNEI SPEC

main68103-60530iFJA310,VJA310,VJH310..EUR,GCC202112-202411

MALAYSIA SPEC

main68103-60530iFJA310,VJA310,VJH310..EUR,GCC202411

THAI SPEC

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-60510iFJA310,VJA310..EUR¥46,600202112-202408

REAR SIDE GLASS-PRIVACY(GRAY)

main68104-60511iFJA310,VJA310,VJH310..ARL,CHI¥42,300202409-202411

REAR SIDE GLASS-PRIVACY(GRAY)

main68104-60520iFJA310..ARL202112-202411

INDIA SPEC

main68104-60520iFJA310,VJA310,VJH310..EUR,GCC202112-202411

BRUNEI SPEC

main68104-60520iFJA310,VJA310,VJH310..EUR,GCC202112-202411

MALAYSIA SPEC

main68104-60520iFJA310,VJA310,VJH310..EUR,GCC202411

THAI SPEC

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-60450iFJA310,VJA310..EUR¥20,600202112-202408

REAR SIDE GLASS-PRIVACY(GRAY)

sub68123-60451¥18,700

main68123-60451iFJA310,VJA310,VJH310..ARL,CHI¥18,700202409-202411

REAR SIDE GLASS-PRIVACY(GRAY)

main68123-60460iFJA310..ARL202112-202411

INDIA SPEC

main68123-60460iFJA310..ARL202112-202411

MALAYSIA SPEC

main68123-60460iFJA310..ARL202411

THAI SPEC

main68123-60460iVJH310..ARL202112-202411

BRUNEI SPEC

68124CGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-60460iFJA310,VJA310..EUR¥20,600202112-202408

REAR SIDE GLASS-PRIVACY(GRAY)

main68124-60461iFJA310,VJA310..EUR¥18,700202409-202411

REAR SIDE GLASS-PRIVACY(GRAY)

main68124-60470iVJA310..ARL202112-202411

BRUNEI SPEC

main68124-60470iFJA310,VJA310,VJH310..EUR,GCC202112-202411

INDIA SPEC

main68124-60470iFJA310,VJA310,VJH310..EUR,GCC202112-202411

MALAYSIA SPEC

main68124-60470iFJA310,VJA310,VJH310..EUR,GCC202411

THAI SPEC

68142CRUN, REAR DOOR GLASS, RH

main68142-60080iFJA310,VJA310,VJH310¥2,660202112-202411

68152CRUN, REAR DOOR GLASS, LH

main68152-60070iFJA310,VJA310,VJH310¥2,660202112-202411

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-60090iFJA310,VJA310,VJH310¥2,900202112-202411

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-60090iFJA310,VJA310,VJH310¥2,900202112-202411

68196BSEAL, REAR DOOR BELT, FRONT RH

main68196-60010iFJA310,VJA310,VJH310¥640202112-202411

68197ASEAL, REAR DOOR BELT, FRONT LH

main68197-60010iFJA310,VJA310,VJH310¥640202112-202411

68198SEAL, REAR DOOR BELT, REAR RH

main68198-60020iFJA310,VJA310,VJH310¥1,190202112-202411

68199SEAL, REAR DOOR BELT, REAR LH

main68199-60010iFJA310,VJA310,VJH310¥1,190202112-202411

68630DCHECK ASSY, REAR DOOR, RH

main68630-60150iFJA310,VJA310,VJH310¥3,100202112-202411

68640ACHECK ASSY, REAR DOOR, LH

main68640-60130iFJA310,VJA310,VJH310¥3,100202112-202411

86262DCOVER, REAR DOOR SPEAKER

main86262-12030iFJA310,VJA310,VJH310..ARL,EUR¥2,140202112-202411

AUDIO(FOR OVERSEAS MARKET)-EMV & 25SPEAKER(*MAR)

6753476010SEAL, FRONT DOOR DIVISION BAR, LH NO.2

main67534-76010¥80

6754676010CHANNEL, VENT WINDOW DRIP, RH

main67546-76010¥110

9010908295

main90109-08295¥80

9011906817

main90119-06817¥70

9014880076

main90148-80076¥110

9015960303

main90159-60303¥70

9018904200

main90189-04200¥80

9018906245

main90189-06245¥70

9026904070

main90269-04070¥40

9033325001

main90333-25001¥140

9095001808

main90950-01808¥110

9095001A17

main90950-01A17¥100

9356054025

main93560-54025¥70

9415180640

main94151-80640¥60

63 parts on this diagram · 2 diagrams in section
