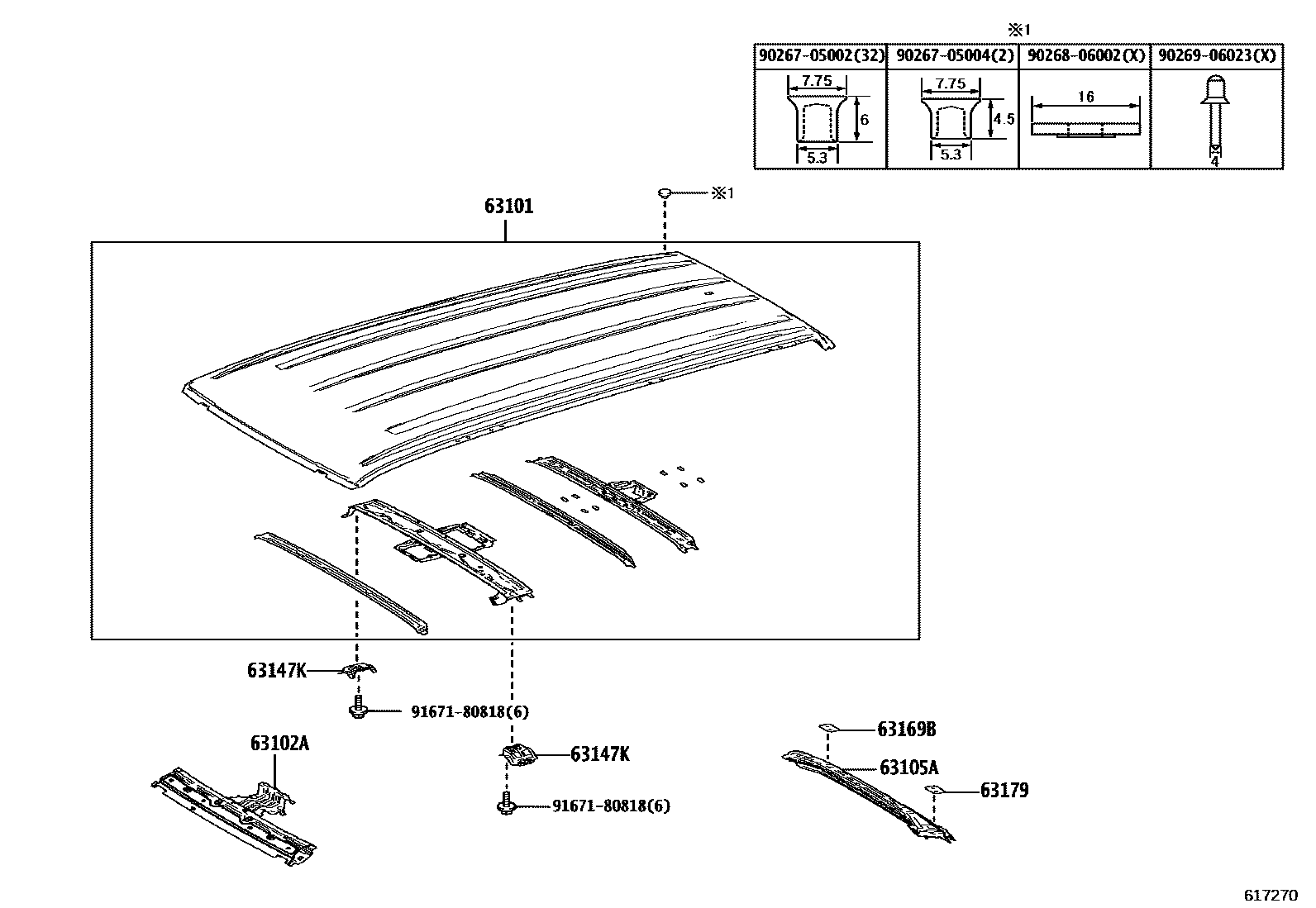

ROOF PANEL & BACK PANEL

0001 1ROOF PANEL 0002 1ROOF PANEL(MOON ROOF) 0003 1MOON ROOF 0004 1ROOF RAIL

63101PANEL SUB-ASSY, ROOF

main63101-60D70supersedes 63101-60D90iVJH310..CHI202411

MOON ROOF-WITH(REMOTE CONTROL)

main63101-60D60iFJA310..ARL202112-202411

MOON ROOF-WITH(REMOTE CONTROL)

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-60190supersedes 63102-60200iVJH310..CHI202411

MOON ROOF-WITH(REMOTE CONTROL)

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-60310iFJA310,VJA310,VJH310202411

63147KREINFORCEMENT, BACK DOOR OPENING FRAME

main63147-60070×2iFJA310,VJA310,VJH310..ARL,EUR,GCC202411

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-48010iFJA310,VJA310,VJH310202411

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-48010iFJA310,VJA310,VJH310202411

9026705002

main90267-05002

9026705004

main90267-05004

9026806002

main90268-06002

9026906023

main90269-06023

9167180818

main91671-80818

11 parts on this diagram · 4 diagrams in section
