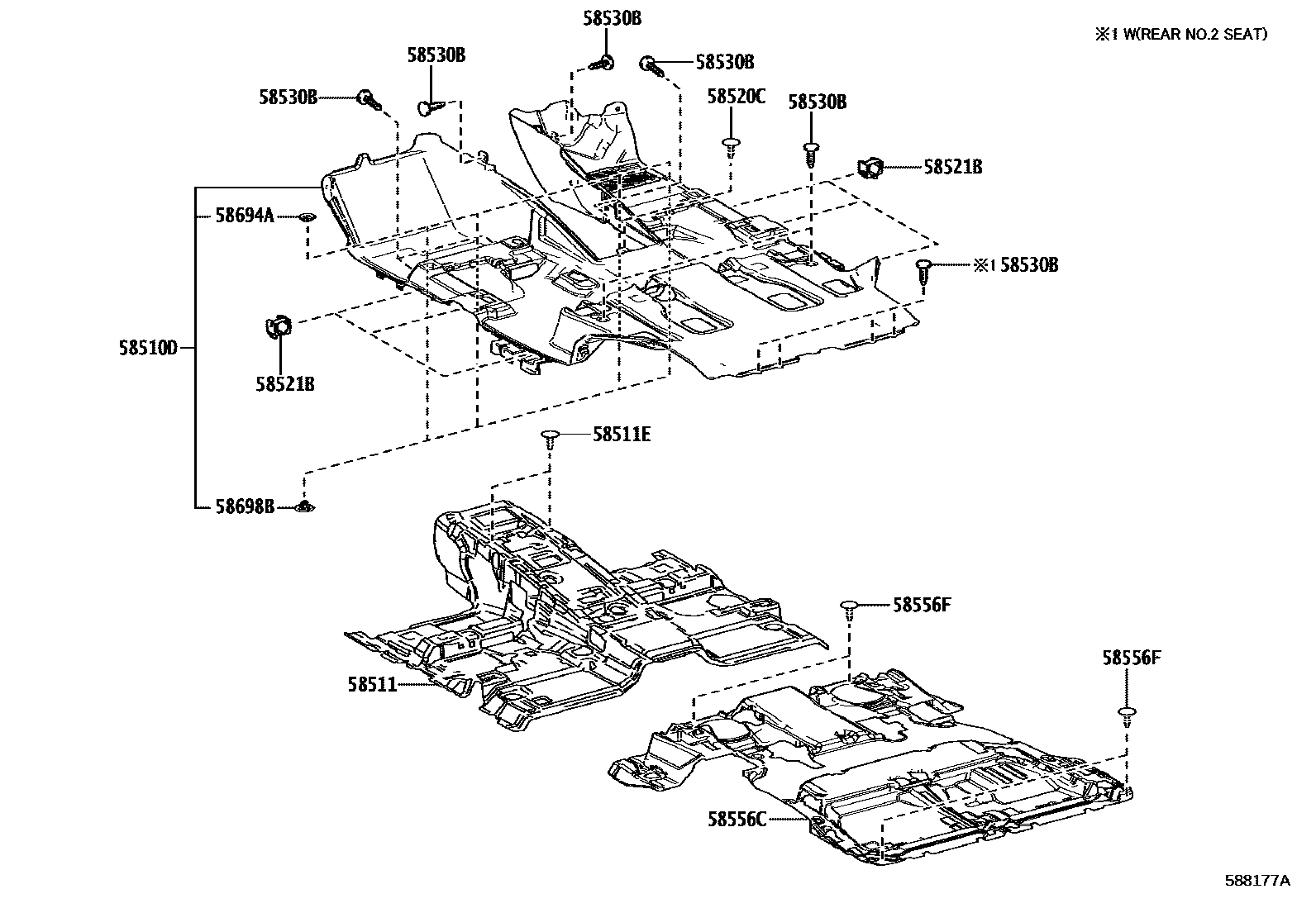

FLOOR MAT & SILENCER PAD
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM0#,2#,3#,4#
REAR NO.2 SEAT-WITHOUT,BLACK,TRIM0#,2#,3#,4#
REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTO ARRANGE,BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
REAR NO.2 SEAT-W(POWER FOLD),BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
58511MAT, FLOOR, FRONT
58511ECLIP(FOR FRONT FLOOR MAT)
58520CCLIP(FOR FRONT FLOOR CARPET)
"EXECUTIVE"&REAR NO.1 SEAT-POWER SEAT(WITHOUT(LIFTER))&REAR NO.2 SEAT-WITHOUT,GREGE
sub90467-05164
"EXECUTIVE"&REAR NO.1 SEAT-POWER SEAT(WITH(LIFTER)),GREGE
sub90467-05164
"EXECUTIVE"&REAR NO.1 SEAT-POWER SEAT(WITH(LIFTER))&REAR NO.2 SEAT-WITHOUT,GREGE
sub90467-05164
58521BHOOK, FLOOR CARPET
58530BCLIP(FOR FRONT FLOOR CARPET)
"EXECUTIVE"&REAR NO.1 SEAT-POWER SEAT(WITH(LIFTER))&REAR NO.2 SEAT-WITHOUT,BLACK,TRIM2#,4#
sub90467-07049
"EXECUTIVE"&REAR NO.1 SEAT-POWER SEAT(WITHOUT(LIFTER))&REAR NO.2 SEAT-WITHOUT,BLACK,TRIM2#,4#
sub90467-07049
F-SPORT&REAR NO.2 SEAT-WITHOUT,BLACK,TRIM2#,3#
sub90467-07049
REAR NO.2 SEAT-WITHOUT,BLACK,TRIM0#,2#,3#,4#
sub90467-07049
REAR NO.1 SEAT-TUMBLE SEAT(POWER)&REAR NO.2 SEAT- W(POWER FOLD) & AUTO ARRANGE,BLACK,TRIM0#,2#,3#,4#
sub90467-07049
REAR NO.2 SEAT-W(POWER FOLD),BLACK,TRIM0#,2#,3#,4#
sub90467-07049
"EXECUTIVE"&REAR NO.1 SEAT-POWER SEAT(WITH(LIFTER)),BLACK,TRIM2#,4#
sub90467-07049
58556CSILENCER, REAR FLOOR
58556FCLIP, REAR FLOOR SILENCER
58694APLATE, MAT SET, UPPER
58698BPLATE, MAT SET, LOWER
10 parts on this diagram · 8 diagrams in section
