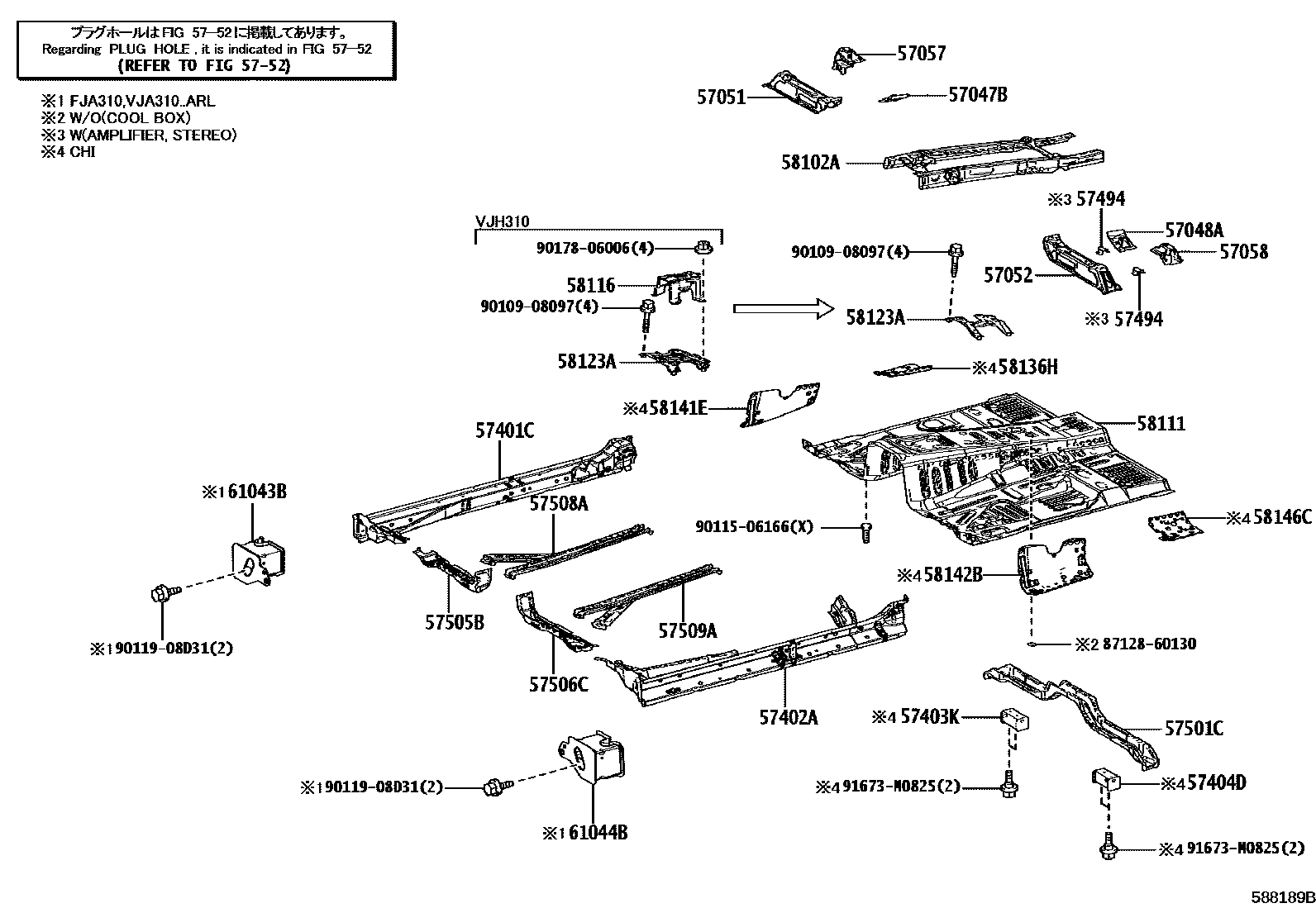

FRONT FLOOR PANEL & FRONT FLOOR MEMBER
57047BBRACKET SUB-ASSY, FLOOR HOUSING SEAT ANCHOR, RH
57048ABRACKET SUB-ASSY, FLOOR HOUSING SEAT ANCHOR, LH
57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57057REINFORCEMENT SUB-ASSY, CROSSMEMBER FLOOR, NO.7 RH
57058REINFORCEMENT SUB-ASSY, CROSSMEMBER FLOOR, NO.7 LH
57401CMEMBER SUB-ASSY, FLOOR SIDE, INNER RH
57402AMEMBER SUB-ASSY, FLOOR SIDE, INNER LH
57403KMEMBER SUB-ASSY, FLOOR SIDE, INNER REAR RH
57404DMEMBER SUB-ASSY, FLOOR SIDE, INNER REAR LH
57494BRACE, FRONT FLOOR CROSS, NO.2 LH
57501CBRACE SUB-ASSY, FRONT FLOOR, CENTER
57505BREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER, RH
57506CREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER, LH
57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
5752
58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR
58111PAN, FRONT FLOOR
58116PLATE, SHIFT CABLE MOUNTING
58123ASUPPORT, SHIFT & SELECT LEVER
58136HPANEL, FRONT FLOOR HOSING, REAR RH
58141EREINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN, RH
58142BREINFORCEMNET, FRONT SIDE MEMBER TO FLOOR PAN, LH
58146CPANEL, FRONT FLOOR HOSING, REAR LH
61043BEXTENSION SUB-ASSY, FRONT BODY PILLAR, OUTER RH
61044BEXTENSION SUB-ASSY, FRONT BODY PILLAR, OUTER LH
8712860130GROMMET, HEATER
9010908097
9011506166
9011908D31
9017806006
91673M0825
main91673-M0825
33 parts on this diagram · 2 diagrams in section
