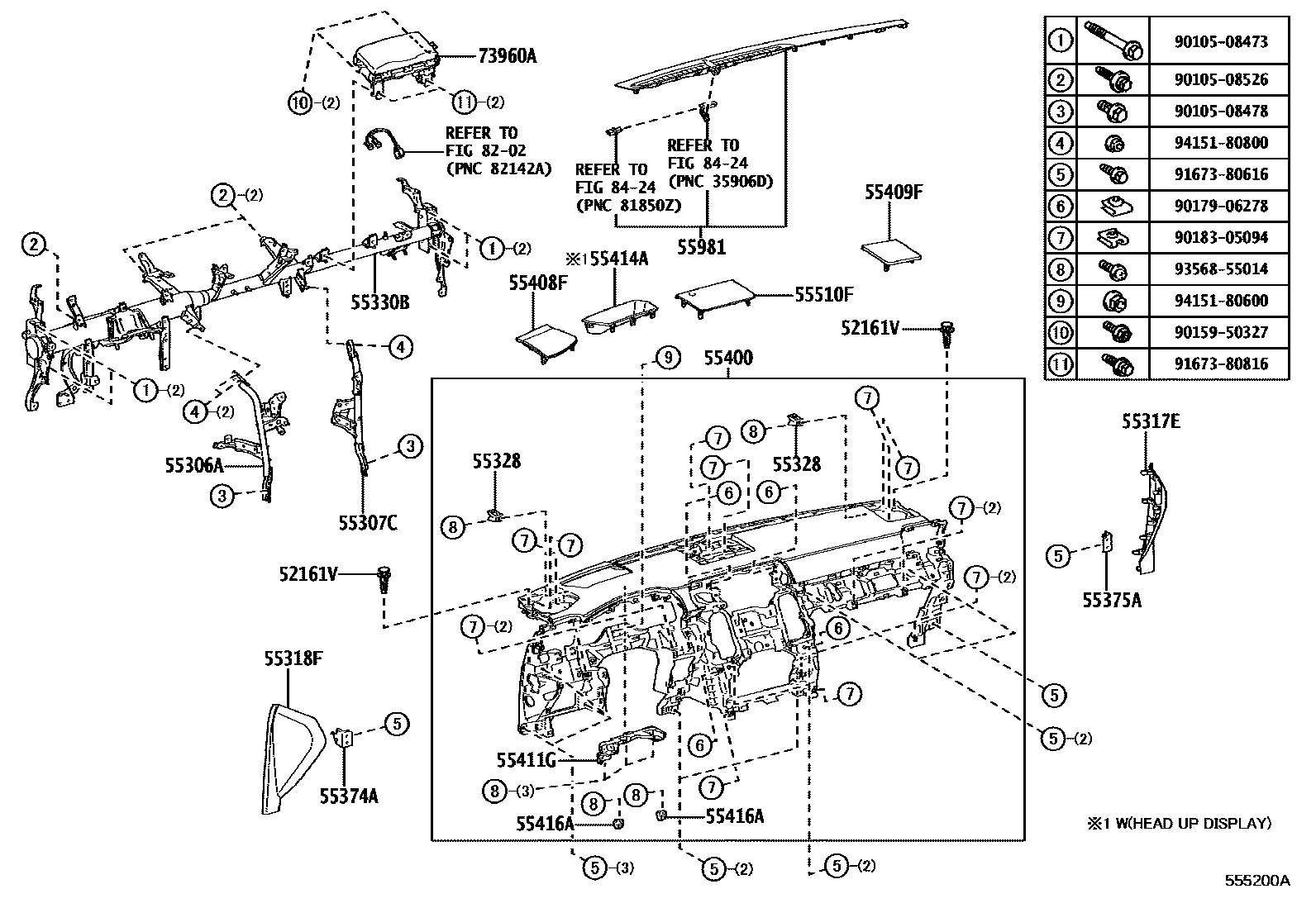

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE

52161VPIECE, INSTRUMENT PANEL

main52161-16010iFJA310,VJA310,VJH310202112-202411

sub52161-0K040

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-60230iFJA310,VJA310,VJH310..LHD202112-202411

main55306-60240iFJA310,VJA310,VJH310..ARL202112-202411

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-60170iFJA310,VJA310,VJH310..LHD202112-202411

main55307-60180iFJA310,VJA310,VJH310..ARL202112-202411

55317EPANEL, INSTRUMENT SIDE, NO.1

main55317-60120-C1iFJA310,VJA310202112-202411

BLACK,TRIM0#,2#,3#,4#

55318FPANEL, INSTRUMENT SIDE, NO.2

main55318-60210-C1iFJA310,VJA310,VJH310202112-202411

BLACK,TRIM0#,2#,3#,4#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-28130iFJA310,VJA310,VJH310202112-202411

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-60580iFJA310,VJA310..LHD202112-202411

main55330-60590iFJA310,VJA310..ARL202112-202411

main55330-60700iFJA310,VJA310,VJH310..LHD202411

main55330-60710iFJA310,VJA310,VJH310..ARL202411

55374ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH

main55375-60130iFJA310,VJA310202112-202411

55375ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH

main55374-60150iFJA310,VJA310,VJH310202112-202411

55400PAD ASSY, INSTRUMENT PANEL SAFETY

main55400-60140-C1iFJA310,VJA310..LHD202112-202411

SOFT BLACK,TRIM0#,2#,3#,4#

main55400-60150-C1iFJA310,VJA310..ARL202112-202312

SOFT BLACK,TRIM0#,2#,3#,4#

sub55400-60151

main55400-60151-C1iFJA310,VJA310,VJH310..ARL202401-202411

SOFT BLACK,TRIM0#,2#,3#,4#

main55400-60220-C0iVJH310..CHI202411

HEAD-UP DISPLAY-WITH,SOFT BLACK,TRIM0#,2#,3#,4#

main55400-60220-C0iVJH310..CHI202411

SOFT BLACK,TRIM0#,2#,3#,4#

main55400-60230-C0iFJA310,VJA310,VJH310..EUR,GCC202411

SOFT BLACK,TRIM0#,2#,3#,4#

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55408-60330-C0iFJA310,VJA310..LHD202112-202411

BLACK,TRIM0#,2#,3#,4#

main55408-60340-C0iFJA310,VJA310,VJH310..ARL202112-202411

BLACK,TRIM0#,2#,3#,4#

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55409-60200-C0iFJA310,VJA310,VJH310..LHD202112-202411

BLACK,TRIM0#,2#,3#,4#

main55409-60210-C0iFJA310,VJA310,VJH310..ARL202112-202411

BLACK,TRIM0#,2#,3#,4#

55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1

main55411-60490iFJA310,VJA310..LHD202112-202411

main55411-60500iFJA310,VJA310,VJH310..ARL202112-202411

main55411-60550iFJA310,VJA310,VJH310..LHD202411

55414APANEL, INSTRUMENT CLUSTER FINISH, END

main55414-60240-C0iFJA310,VJA310,VJH310..EUR,GCC202411

HEAD-UP DISPLAY-WITH,BLACK,TRIM0#,2#,3#,4#

main55414-60240-C0iVJH310..CHI202411

BLACK,TRIM0#,2#,3#,4#

main55414-60250-C0iFJA310,VJA310,VJH310..ARL202112-202411

BLACK,TRIM0#,2#,3#,4#

55416ARETAINER, METER HOOD, NO.1

main55416-60140iFJA310,VJA310,VJH310202112-202411

55510FCOVER ASSY, SPEAKER OPENING, NO.1

main55510-60180-C0iFJA310,VJA310,VJH310202112-202411

BLACK,TRIM0#,2#,3#,4#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-60110-C1iFJA310,VJA310,VJH310..LHD202112-202411

BLACK,TRIM0#,2#,3#,4#

main55981-60120-C1iFJA310,VJA310..ARL202112-202411

BLACK,TRIM0#,2#,3#,4#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-60410iFJA310,VJA310..LHD202112-202411

main73960-60420iFJA310,VJA310,VJH310..ARL202112-202411

8202

8424

9010508473

main90105-08473

9010508478

main90105-08478

9010508526

main90105-08526

9015950327

main90159-50327

9017906278

main90179-06278

9018305094

main90183-05094

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180600

main94151-80600

9415180800

main94151-80800

31 parts on this diagram · 8 diagrams in section
