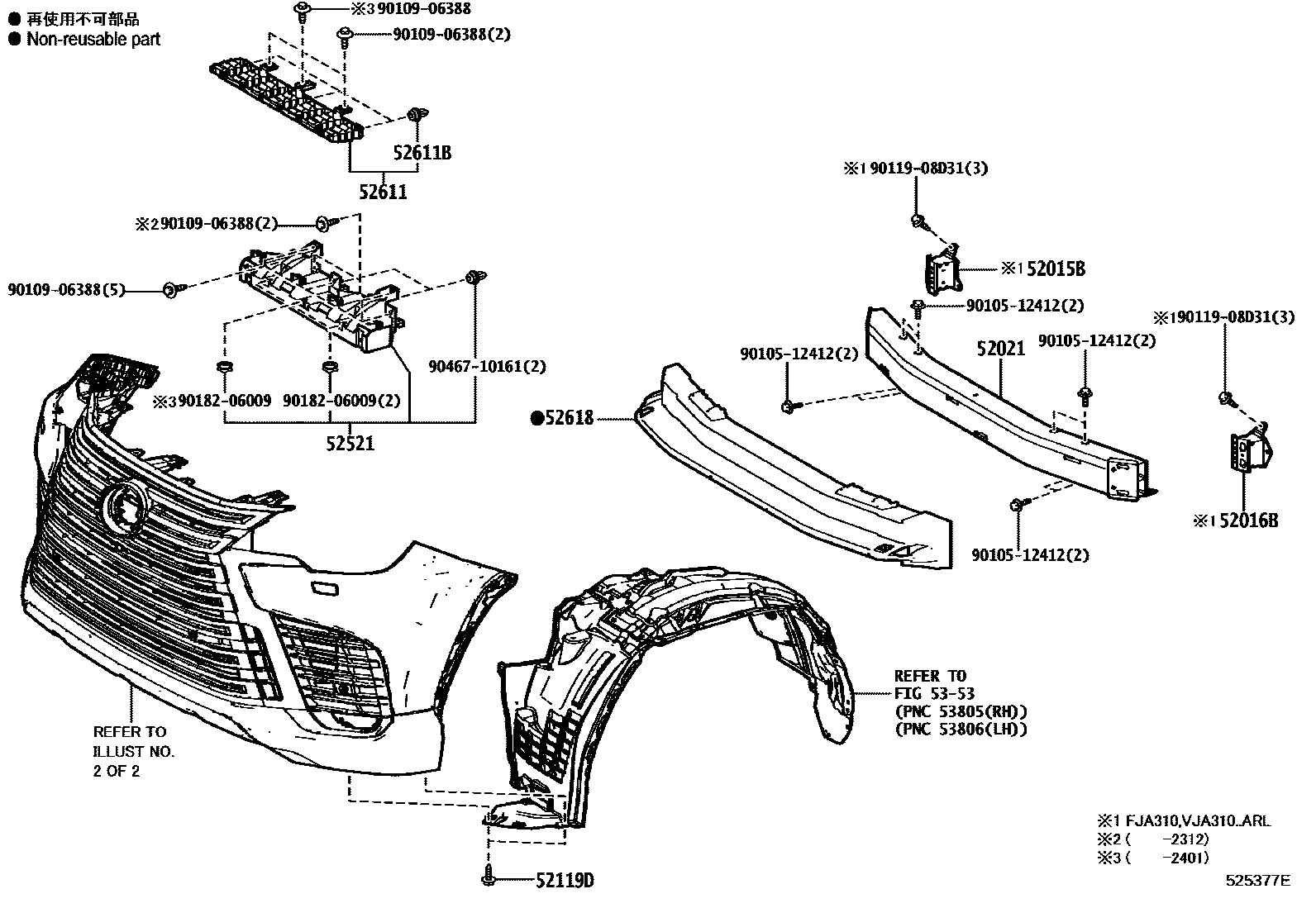

FRONT BUMPER & BUMPER STAY

0001 1 0002 1F-SPORT 0003 1 0004 1F-SPORT

52015BBRACKET SUB-ASSY, FRONT BUMPER, RH

main52011-60020iFJA310,VJA310..ARL202112-202411

52016BBRACKET SUB-ASSY, FRONT BUMPER, LH

main52012-60020iFJA310,VJA310,VJH310..ARL,CHI202112-202411

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-60290iVJH310..CHI202411

main52021-60300iFJA310,VJA310,VJH310..ARL,EUR,GCC202112-202411

52119DSCREW, NO.1

main90159-60217iVJA310,VJH310..GCC202411

PHILIPPINES SPEC&F-SPORT&F-SPORT PACKAGE(ACCESSORY)

main90159-60217iVJA310,VJH310..GCC202411

MONGOLIA SPEC&F-SPORT&F-SPORT PACKAGE(ACCESSORY)

main90159-60217iVJH310..GCC202411

PHILIPPINES SPEC&F-SPORT&F-SPORT PACKAGE(ACCESSORY)&ADVANCED PARK-WITH

main90159-60217iFJA310,VJA310202112-202411

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-60230iFJA310,VJA310202112-202312

sub52521-60231

main52521-60231iFJA310,VJA310,VJH310202401-202411

52611ABSORBER, FRONT BUMPER ENERGY

main52611-60170iFJA310,VJA310202112-202411

52611BCLIP, FRONT BUMPER ENERGY ABSORBER

main90467-09232iFJA310,VJA310,VJH310202112-202411

52618ABSORBER, FRONT BUMPER, LOWER

main52618-60040iFJA310,VJA310,VJH310202112-202411

5353

9010512412

main90105-12412

9010906388

main90109-06388

9011908D31

main90119-08D31

9018206009

main90182-06009

9046710161

main90467-10161

14 parts on this diagram · 4 diagrams in section
