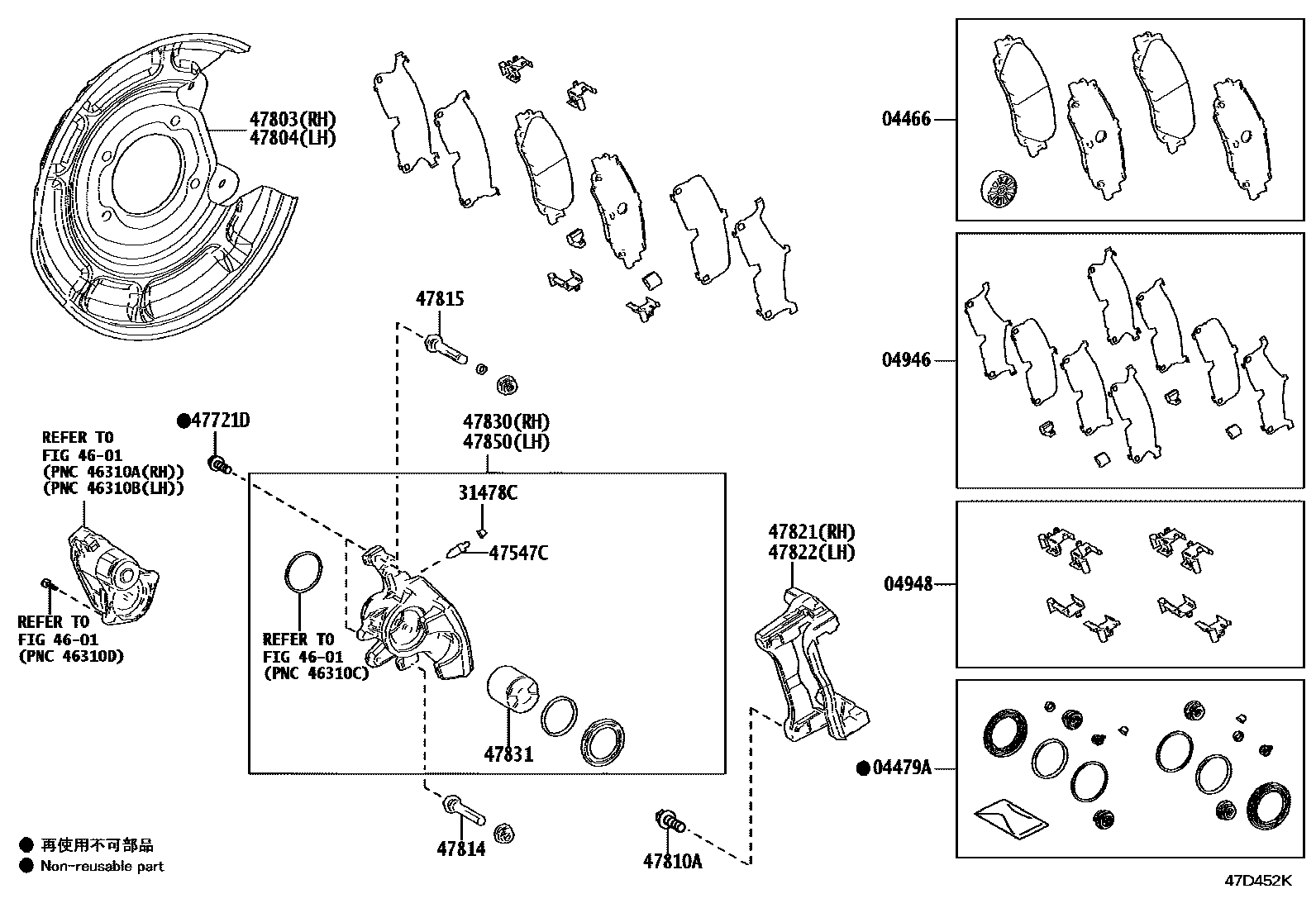

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-60190iFJA310,VJA310¥8,000202112-202210

MARK ADVICS VC107

sub04466-60191¥8,000

main04466-60191iFJA310,VJA310,VJH310¥8,000202210-202411

MARK ADVICS VC107

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-60280iFJA310,VJA310¥2,130202112-202411

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-60150iFJA310,VJA310,VJH310¥1,780202112-202411

04948FITTING KIT, DISC BRAKE, REAR

main04948-60050iFJA310,VJA310,VJH310¥1,390202112-202411

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iFJA310,VJA310,VJH310¥160202112-202411

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-12010iFJA310,VJA310¥180202112-202411

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA606iFJA310,VJA310,VJH310¥270202112-202411

*10-1.00PX20-9

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47803-60011iFJA310,VJA310¥17,500202112-202208

sub47803-60012¥15,900

main47803-60012iFJA310,VJA310,VJH310¥15,900202209-202411

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47804-60011iFJA310,VJA310¥17,500202112-202208

sub47804-60012¥15,900

main47804-60012iFJA310,VJA310,VJH310¥15,900202209-202411

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-14169iFJA310,VJA310,VJH310¥240202112-202411

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-60130iFJA310,VJA310,VJH310¥510202112-202411

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-60130iFJA310,VJA310,VJH310¥510202112-202411

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-60110iFJA310,VJA310,VJH310¥5,200202112-202411

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-60100iFJA310,VJA310,VJH310¥5,200202112-202411

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-60110iFJA310,VJA310,VJH310¥26,100202112-202411

47831PISTON, REAR DISC BRAKE

main47831-60130iFJA310,VJA310,VJH310¥1,180202112-202411

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-60100iFJA310,VJA310,VJH310¥26,100202112-202411

18 parts on this diagram · 1 diagram in section
