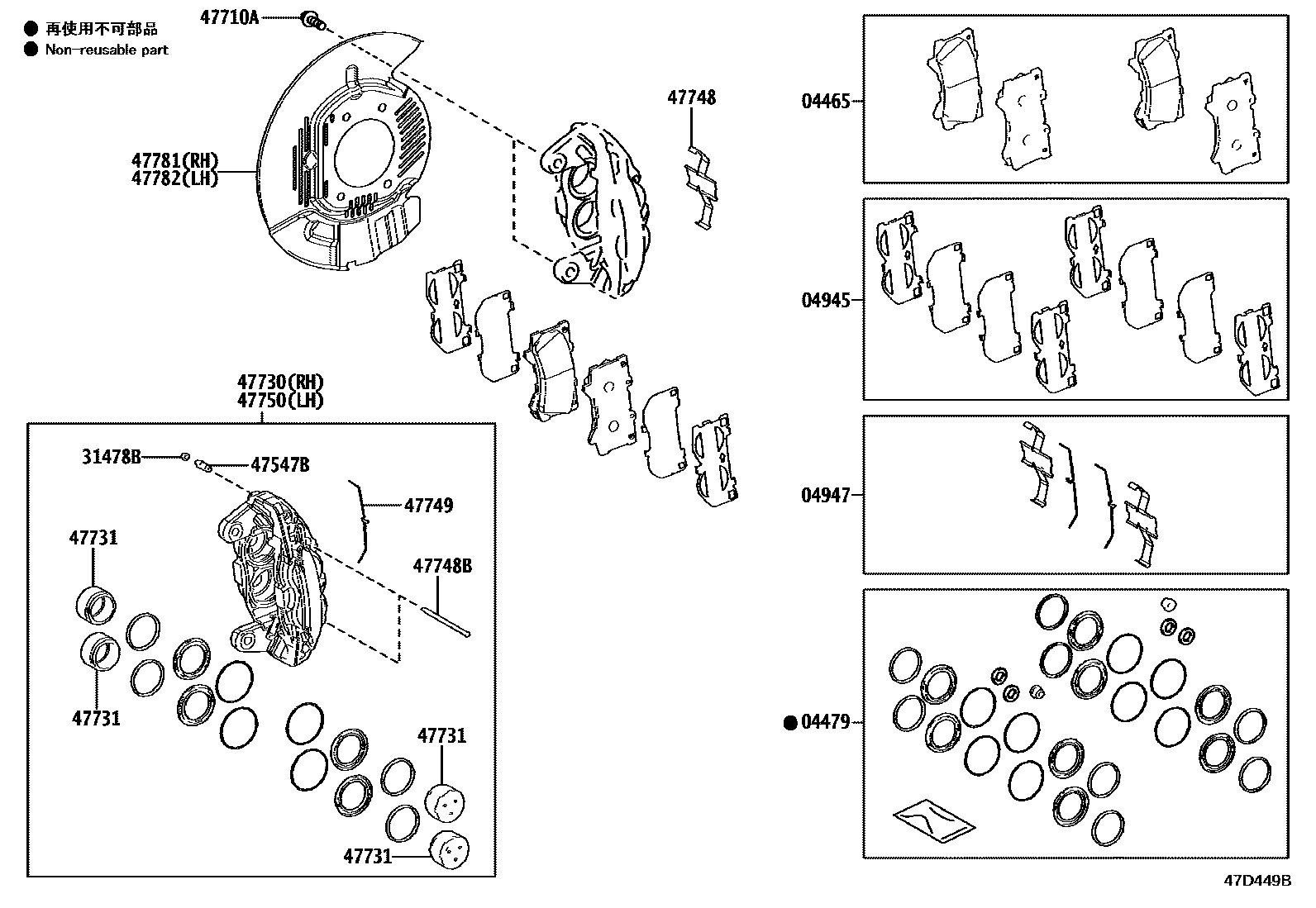

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-60380iFJA310,VJA310,VJH310¥11,400202112-202411

MARK ADVICS VC084H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-60070iFJA310,VJA310,VJH310¥3,690202112-202411

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-60100iFJA310,VJA310,VJH310¥1,220202112-202411

04947FITTING KIT, DISC BRAKE, FRONT

main04947-60150iFJA310,VJA310,VJH310¥1,470202112-202411

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iFJA310,VJA310,VJH310¥160202112-202411

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20030iFJA310,VJA310,VJH310¥230202112-202411

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-14216iFJA310,VJA310,VJH310¥240202112-202411

*14-1.5PX40-34

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-60450iFJA310,VJA310,VJH310¥36,700202112-202411

47731PISTON, FRONT DISC BRAKE

main47731-60440iFJA310,VJA310,VJH310¥1,080202112-202411

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-60440iFJA310,VJA310,VJH310¥570202112-202411

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main47735-60450iFJA310,VJA310,VJH310¥200202112-202411

47749CLIP, PIN HOLD

main47743-60280iFJA310,VJA310,VJH310¥180202112-202411

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-60450iFJA310,VJA310,VJH310¥36,700202112-202411

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-60230iFJA310,VJA310,VJH310¥3,060202112-202411

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-60200iFJA310,VJA310,VJH310¥3,060202112-202411

15 parts on this diagram · 1 diagram in section
