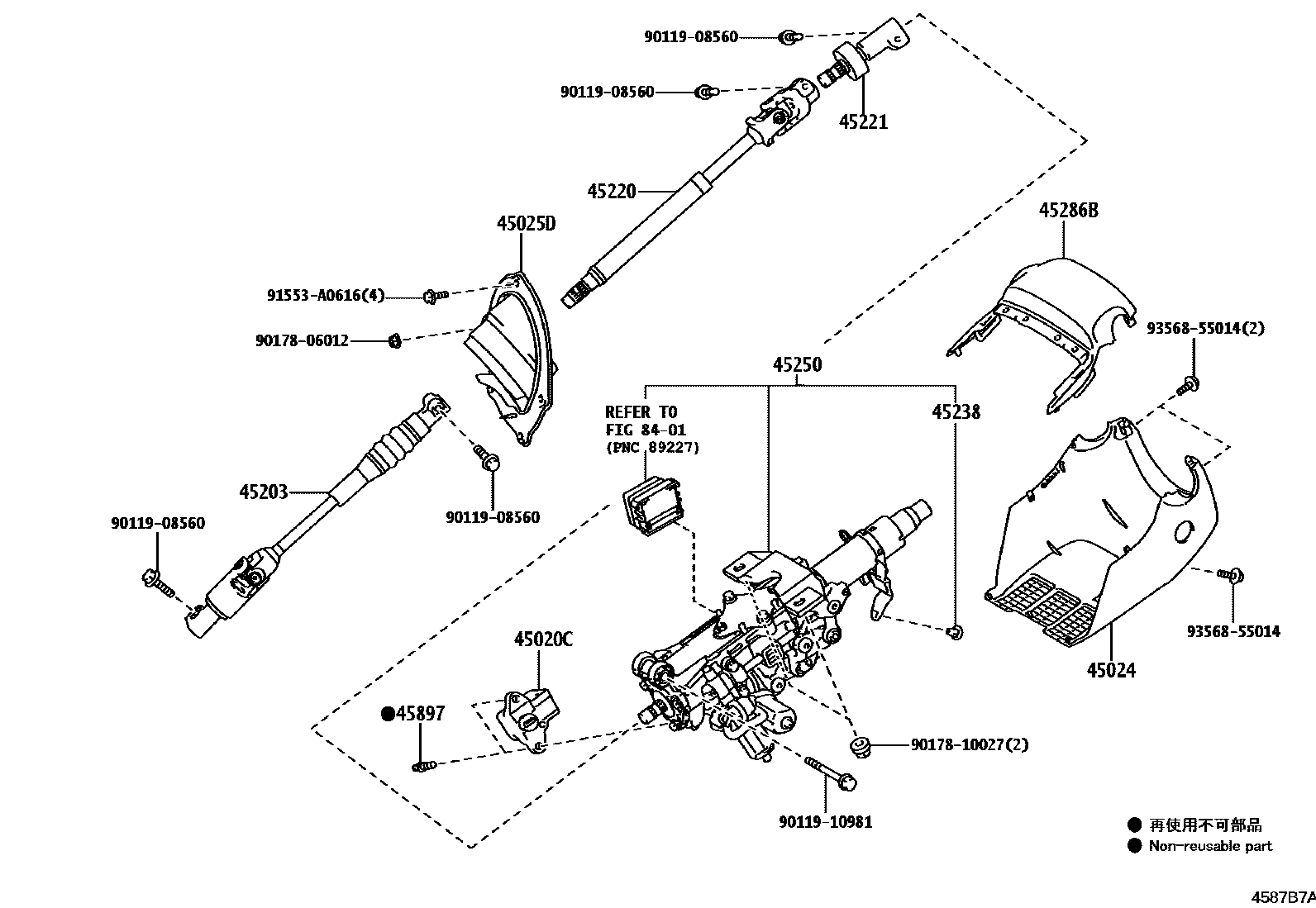

STEERING COLUMN & SHAFT
45020CACTUATOR ASSY, STEERING LOCK(W/ECU)
45024COVER SUB-ASSY, STEERING COLUMN, LOWER
LANE KEEPING SYSTEM- WITH(LTA & TOUCH & EDSS),BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
UKRAINE SPEC,BLACK,TRIM0#,2#,3#,4#
INDIA SPEC,BLACK,TRIM0#,2#,3#,4#
THAI SPEC,BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
INDONESIA SPEC,BLACK,TRIM0#,2#,3#,4#
BRUNEI SPEC,BLACK,TRIM0#,2#,3#,4#
SOUTH AFRICA SPEC,BLACK,TRIM0#,2#,3#,4#
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45203SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2
45220SHAFT ASSY, STEERING INTERMEDIATE
45221SHAFT, STEERING INTERMEDIATE
45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)
45250COLUMN ASSY, STEERING
45286BCOVER, STEERING COLUMN, UPR
UKRAINE SPEC,BLACK,TRIM0#,2#,3#,4#
LANE KEEPING SYSTEM- WITH(LTA & TOUCH & EDSS),BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
INDONESIA SPEC,BLACK,TRIM0#,2#,3#,4#
BRUNEI SPEC,BLACK,TRIM0#,2#,3#,4#
INDIA SPEC,BLACK,TRIM0#,2#,3#,4#
THAI SPEC,BLACK,TRIM0#,2#,3#,4#
SOUTH AFRICA SPEC,BLACK,TRIM0#,2#,3#,4#
45897BOLT, STEERING LOCK SET
8401
9011908560
main90119-08560
9011910981
main90119-10981
9017806012
main90178-06012
9017810027
main90178-10027
91553A0616
main91553-A0616
9356855014
main93568-55014
17 parts on this diagram · 4 diagrams in section
