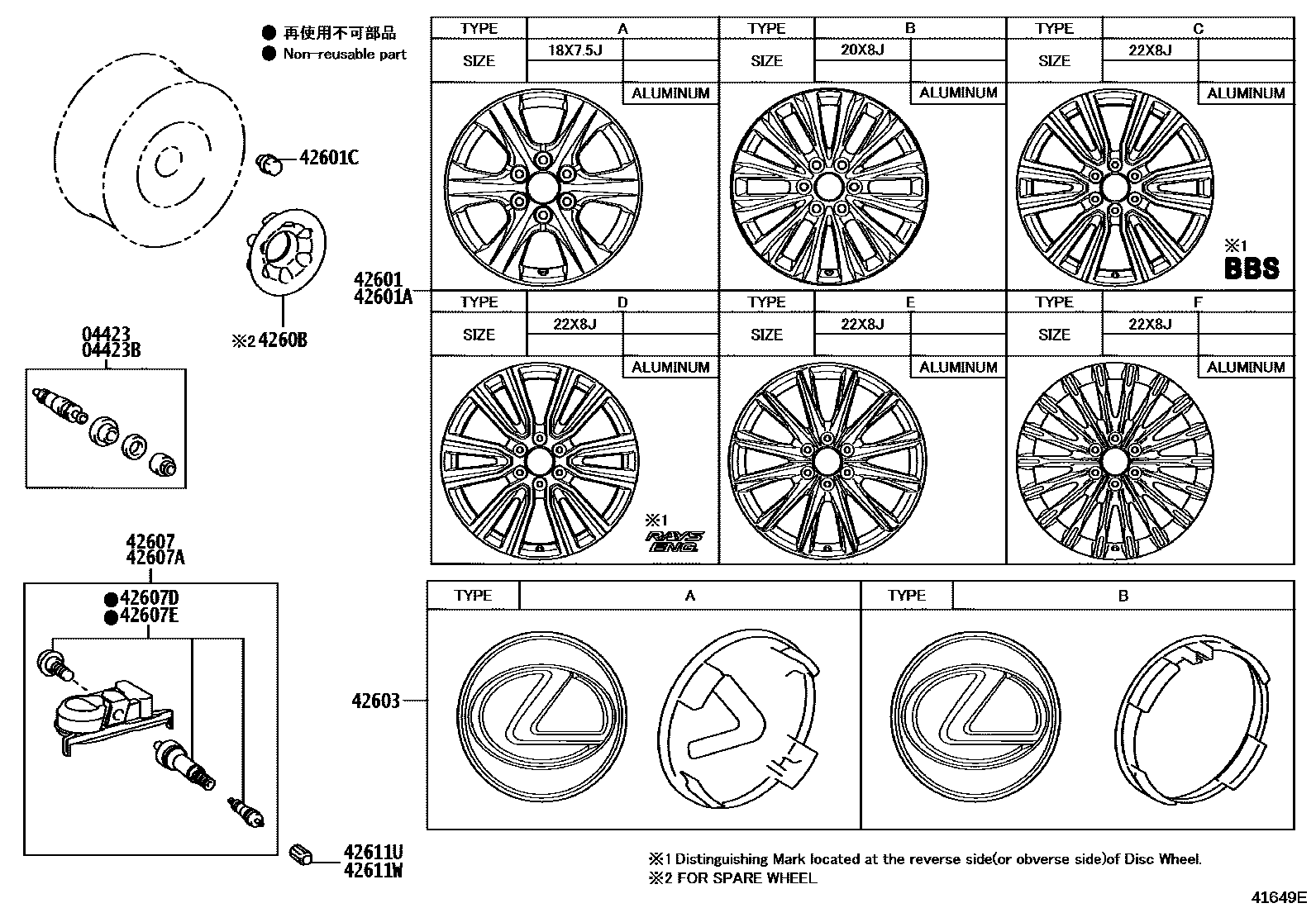

DISC WHEEL & WHEEL CAP

0001 1DISC WHEEL & WHEEL HUB ORNAME0002 1BALANCE WEIGHT

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-33060iFJA310,VJA310202112-202310

main04423-48010iFJA310,VJA310,VJH310202310-202411

04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)

main04423-33060iFJA310,VJA310202112-202310

main04423-48010iFJA310,VJA310,VJH310202310-202411

42601WHEEL, DISC

main42611-60G00iFJA310,VJA310,VJH310202112-202411

20X8J,#,TYPE B:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-60G00iFJA310,VJA310,VJH310202112-202411

20X8J,#,TYPE B:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01121iFJA310,VJA310,VJH310202112-202411

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-60700iFJA310,VJA310,VJH310202112-202411

*ALU,TYPE A:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-48050iFJA310,VJA310202310-202411

main42607-48070iFJA310,VJA310,VJH310202411

main42607-53040iFJA310,VJA310202112-202310

42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)

main42607-48050iFJA310,VJA310202310-202411

main42607-48070iFJA310,VJA310,VJH310202411

main42607-53040iFJA310,VJA310202112-202310

42607DVALVE, TIRE PRESSURE MONITOR

main90942-05044iFJA310,VJA310202112-202310

main90942-05050iFJA310,VJA310,VJH310202310-202411

42607EVALVE, TIRE PRESSURE MONITOR (FOR SPARE)

main90942-05044iFJA310,VJA310202112-202310

main90942-05050iFJA310,VJA310,VJH310202310-202411

4260BCOVER SUB-ASSY, WHEEL HUB

main4260B-60520iFJA310,VJA310,VJH310202112-202411

42611UCAP, TIRE VALVE

main90942-05042iFJA310,VJA310202112-202310

main90942-05048iFJA310,VJA310,VJH310202310-202411

42611WCAP, TIRE VALVE (FOR SPARE)

main90942-05042iFJA310,VJA310202112-202310

main90942-05048iFJA310,VJA310,VJH310202310-202411

13 parts on this diagram · 2 diagrams in section
