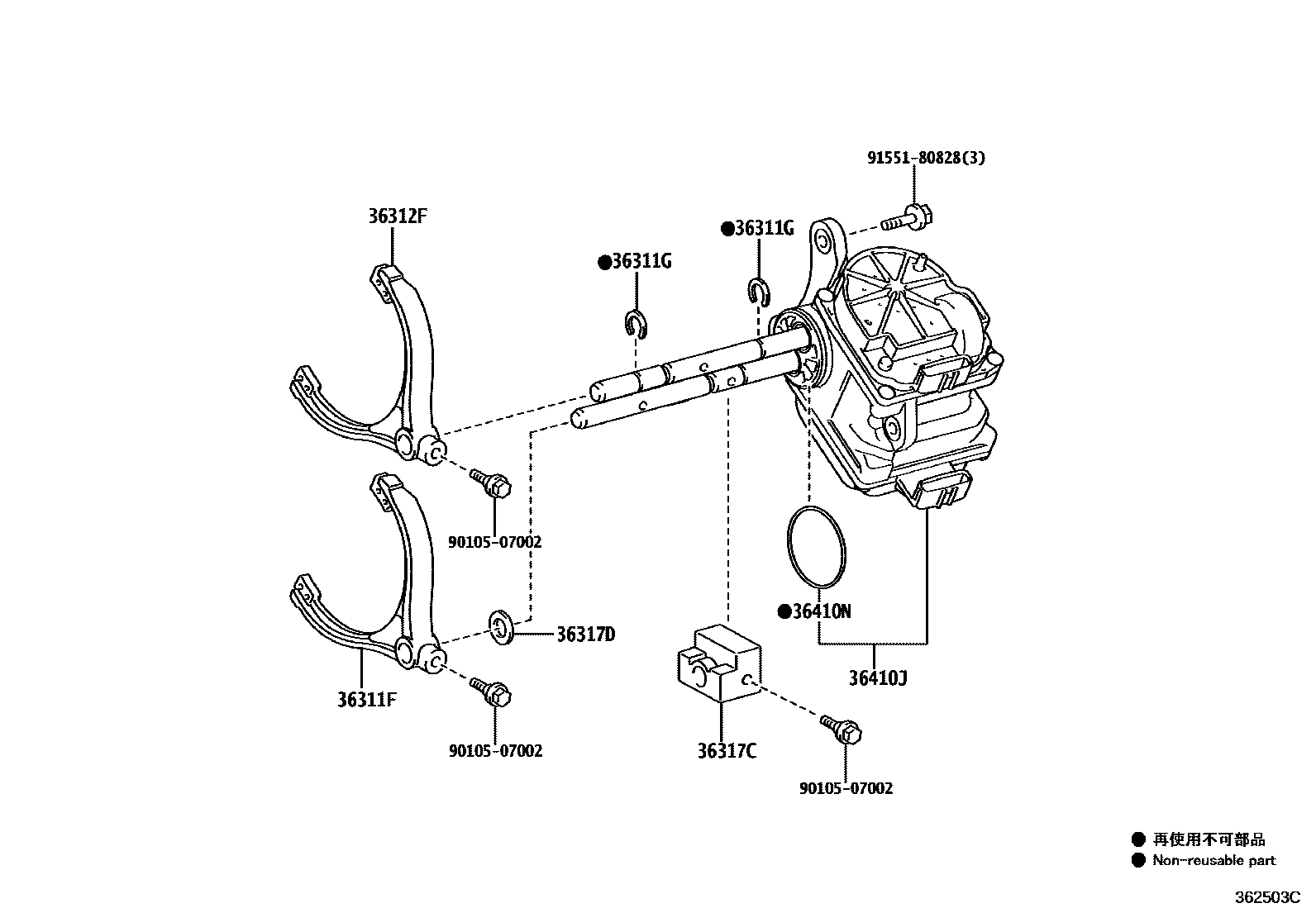

TRANSFER LEVER & SHIFT ROD

36311FFORK, TRANSFER GEAR SHIFT, NO.1

main36301-34010iFJA310,VJA310,VJH310202112-202411

36311GRING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)

main90520-13006iFJA310,VJA310,VJH310202112-202411

36312FFORK, TRANSFER GEAR SHIFT, NO.2

main36311-60130iFJA310,VJA310,VJH310202112-202411

36317CSTOPPER, TRANSFER SHIFT SHAFT

main36317-60030iFJA310,VJA310,VJH310202112-202411

36317DSTOPPER, NO.2, TRANSFER SHIFT SHAFT

main36317-60040iFJA310,VJA310,VJH310202112-202411

36410JACTUATOR ASSY, TRANSFER SHIFT

main36410-60130iFJA310,VJA310,VJH310202112-202411

36410NRING, O (FOR TRANSFER SHIFT ACTUATOR)

main90301-56009iFJA310,VJA310,VJH310202112-202411

9010507002

main90105-07002

9155180828

main91551-80828

9 parts on this diagram · 1 diagram in section
