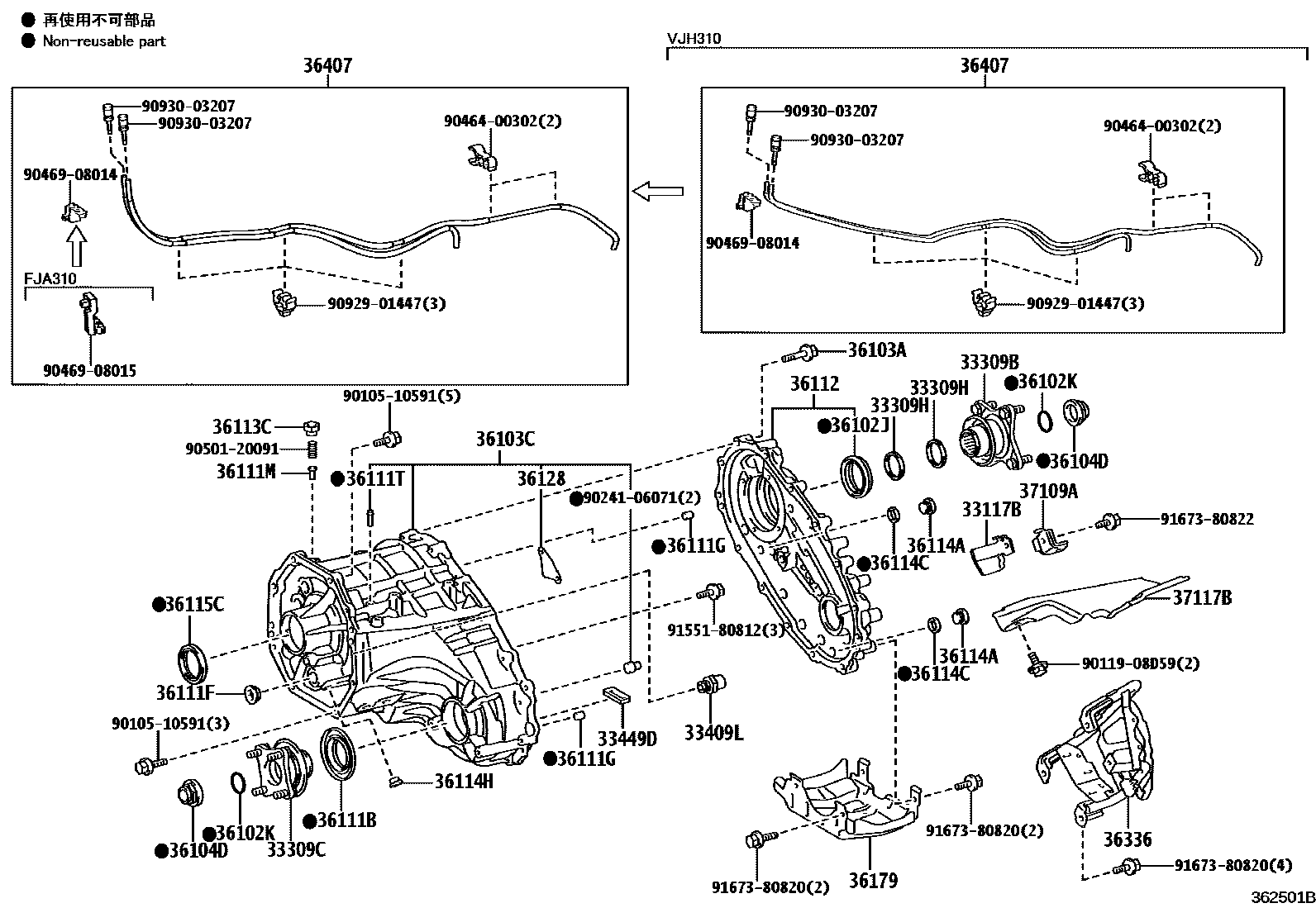

TRANSFER CASE & EXTENSION HOUSING
33117BPROTECTOR, TRANSFER CASE
33309BFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION
33309CFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION
33309HWASHER, TRANSFER OUTPUT SHAFT
T=0.8
33409LVALVE SUB-ASSY, TRANSFER OIL PUMP RELIEF
33449DMAGNET (FOR TRANSFER CASE)
36102JSEAL, TYPE T OIL (FOR TRANSFER COVER)
36102KRING, O
36103ABOLT (FOR TRANSFER CASE)
*8-1.25PX45-22
36103CCASE, TRANSFER, FRONT
36104DNUT (FOR TRANSFER OUTPUT SHAFT)
36111BSEAL, OIL (FOR TRANSFER CASE)
36111FPLUG (FOR TRANSFER CASE)
36111GPIN, STRAIGHT (FOR TRANSFER CASE)
L=14,OD=10
36111MPIN, SLOTTED SPRING (FOR TRANSFER CASE)
36111TTUBE (FOR TRANSFER CASE)
sub90406-T0007
36112CASE, TRANSFER, REAR
36113CPLUG (FOR TRANSFER CASE)
36114APLUG, TIGHT(FOR TRANSFER CASE)
36114CGASKET, NO.1 (FOR TRANSFER CASE)
36114HPLUG, NO.2 (FOR TRANSFER CASE)
36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)
36128DEFLECTOR, BREATHER OIL
36179PROTECTOR, TRANSFER CASE LOWER
36336INSULATOR, TRANSFER HEAT
36407HOSE SUB-ASSY, TRANSFER BREATHER
37109ABRACKET SUB-ASSY, PROPELLER SHAFT HEAT INSULATOR
37117BINSULATOR, PROPELLER SHAFT HEAT
9010510591
main90105-10591
9011908D59
main90119-08D59
9024106071
main90241-06071
9046400302
main90464-00302
9046908014
main90469-08014
9046908015
main90469-08015
9050120091
main90501-20091
9092901447
main90929-01447
9093003207
main90930-03207
9155180812
main91551-80812
9167380820
main91673-80820
9167380822
main91673-80822
40 parts on this diagram · 1 diagram in section
