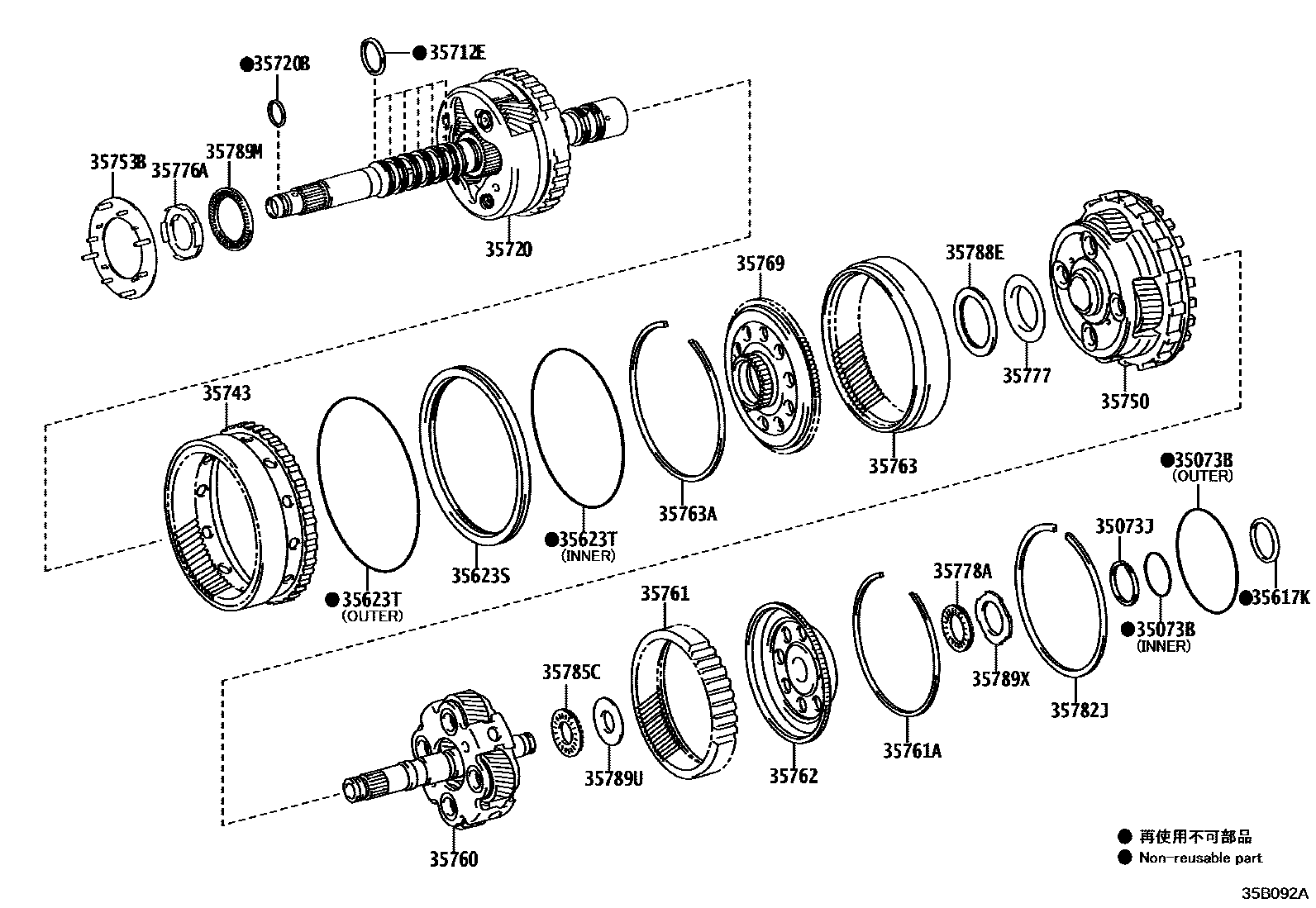

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
35073BRING, O (FOR OUTPUT SHAFT)
INNER
OUTER
35073JRING, HOLE SNAP (FOR OUTPUT SHAFT)
35617KRING, CLUTCH DRUM OIL SEAL
35623TRING, O(FOR 1ST & REVERSE BRAKE PISTON)
INNER
OUTER
35712ERING, INPUT SHAFT OIL SEAL
35720GEAR ASSY, FRONT PLANETARY
35720BRING, SHAFT SNAP (FOR FRONT PLANETARY GEAR)
35743GEAR, FRONT PLANETARY RING
35750GEAR ASSY, CENTER PLANETARY
35753BRECEIVER, FRONT PLANETARY OIL
35760GEAR ASSY, REAR PLANETARY
35761GEAR, REAR PLANETARY RING
35761ARING, HOLE SNAP (FOR REAR PLANETARY RING GEAR)
35762FLANGE, REAR PLANETARY RING GEAR
35763GEAR, CENTER PLANETARY RING
35763ARING, SNAP(FOR CENTER PLANETARY RING GEAR)
35769FLANGE, PLANETARY RING GEAR, CTR
35776ARACE, THRUST BEARING, NO.6
35777RACE, THRUST BEARING, NO.7
35778ABEARING, THRUST NEEDLE ROLLER
35782JRING, SNAP
35785CBEARING, THRUST NEEDLE ROLLER
35788EBEARING, THRUST NEEDLE ROLLER
35789MBEARING, THRUST NEEDLE ROLLER
35789XRACE, THRUST BEARING
27 parts on this diagram · 1 diagram in section
