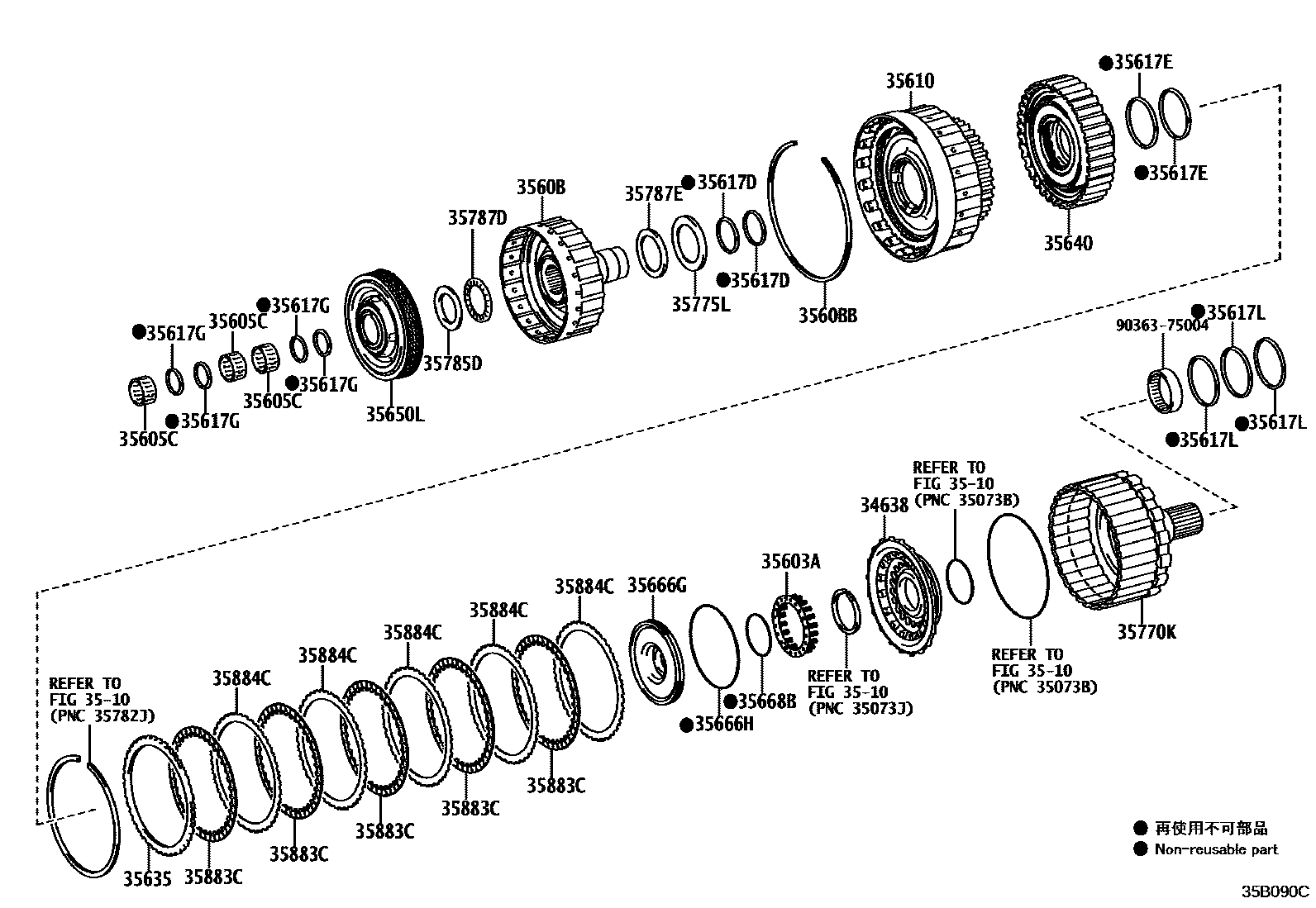

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
34638PISTON, C-4 CLUTCH
3510
35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN
35605CBEARING, NEEDLE ROLLER
3560BDRUM SUB-ASSY, C-2
3560BBRING, HOLE SNAP(FOR C-2 DRUM)
35610CLUTCH ASSY, FRONT MULTIPLE DISC
35617DRING, CLUTCH DRUM OIL SEAL
35617ERING, CLUTCH DRUM OIL SEAL, NO.2
35617GRING, CLUTCH DRUM OIL SEAL
35617LRING, CLUTCH DRUM OIL SEAL, NO.3
35635FLANGE, FORWARD CLUTCH
T=4.3
T=4.4
T=4.5
T=4.6
T=4.7
T=4.8
T=4.9
T=5.0
T=5.1
35640CLUTCH ASSY, C-3
35650LCLUTCH ASSY, C-2
35666GBALANCER, C-4 CLUTCH
35666HRING, O(FOR C-4 CLUTCH BALANCER)
35668BRING, O(FOR CLUTCH BALANCER)
35770KSHAFT ASSY, OUTPUT
35775LRACE, THRUST BEARING, NO.5
35785DRACE, THRUST BEARING, NO.4
35787DBEARING, THRUST NEEDLE ROLLER
35787EBEARING, THRUST NEEDLE ROLLER
35883CDISC, CLUTCH, NO.4
35884CPLATE, CLUTCH, NO.4
9036375004
25 parts on this diagram · 1 diagram in section
