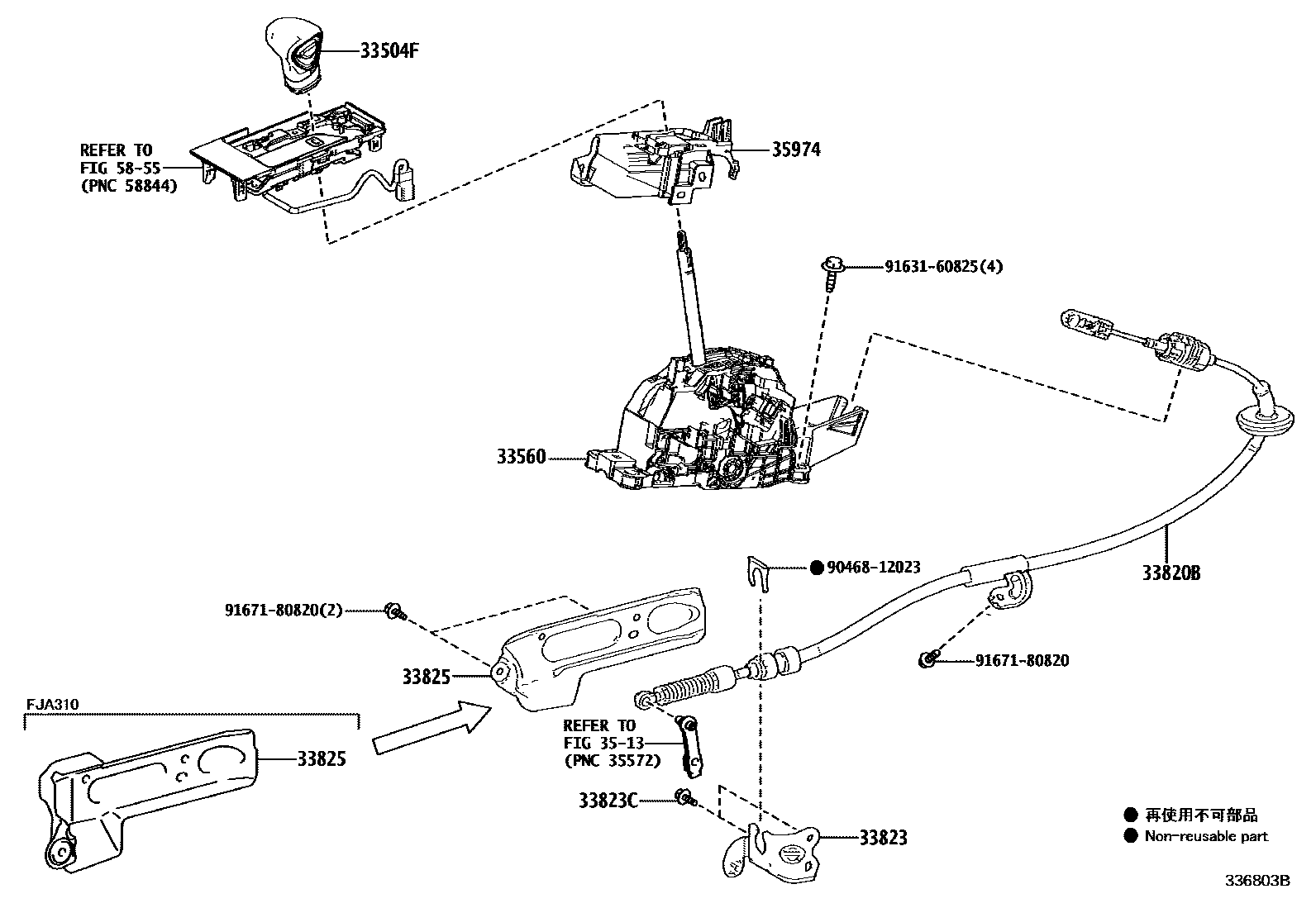

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-33200-C0iFJA310,VJA310..LHD202112-202411

BLACK,TRIM0#,2#,3#,4#

main33504-33220-C0iFJA310,VJA310..ARL202112-202411

BLACK,TRIM0#,2#,3#,4#

main33504-60630-C0iVJH310202411

BLACK,TRIM0#,2#,3#,4#

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-60250iFJA310,VJA310..LHD202112-202411

main33560-60260iFJA310,VJA310..ARL202112-202411

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-60210iFJA310,VJA310..LHD202112-202411

main33820-60230iFJA310,VJA310..ARL202112-202411

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-60040iFJA310,VJA310202112-202411

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main91671-80820iFJA310,VJA310202112-202411

33825INSULATOR, TRANSMISSION CONTROL CABLE

main33825-60010iFJA310202112-202411

main33825-60020iVJA310202112-202411

3513

35974HOUSING, POSITION INDICATOR, LOWER

main35974-60200iFJA310,VJA310..LHD202112-202411

main35974-60210iFJA310,VJA310..ARL202112-202411

5855

9046812023

main90468-12023

9163160825

main91631-60825

9167180820

main91671-80820

12 parts on this diagram · 4 diagrams in section
