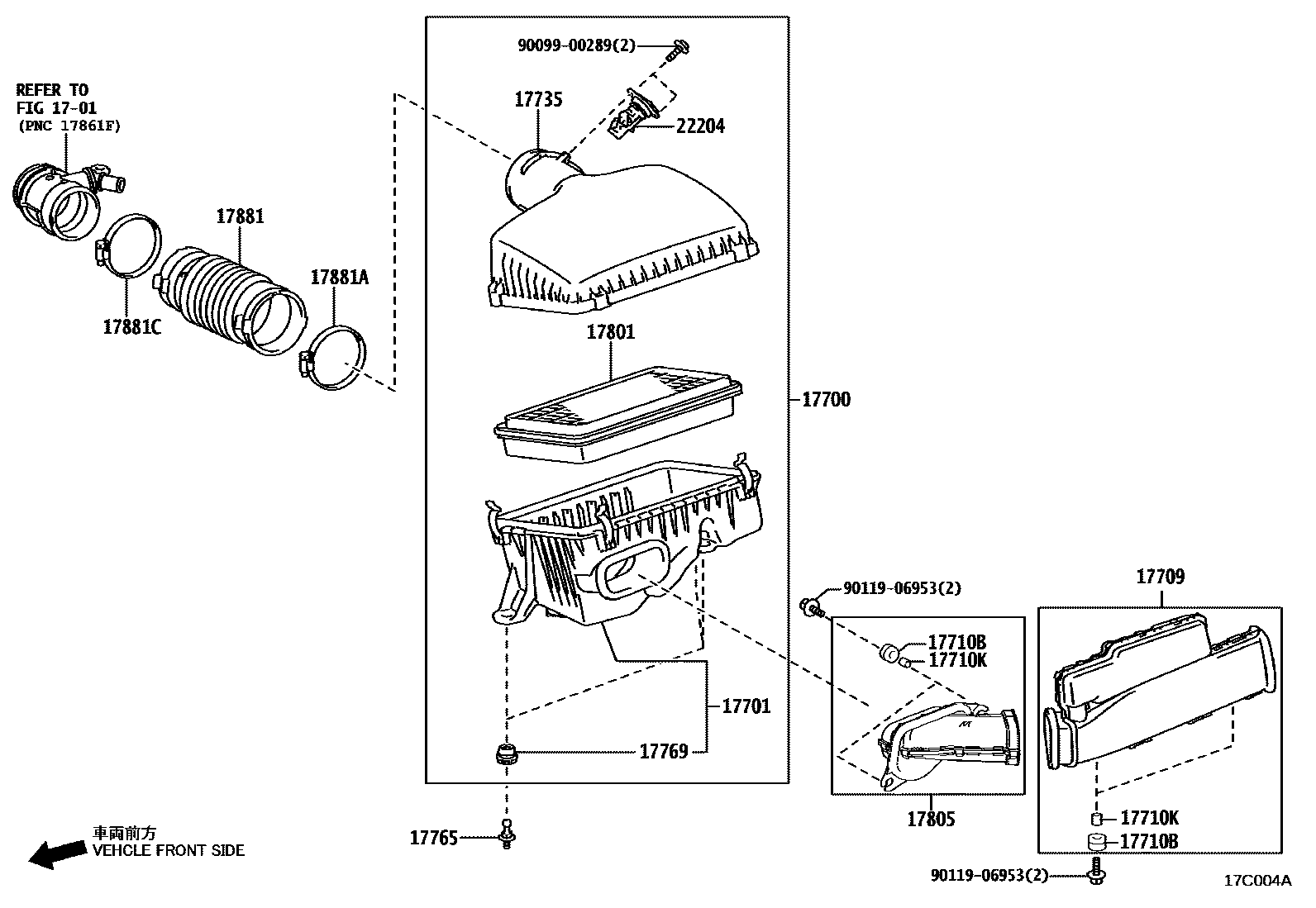

AIR CLEANER

0001 1AIR CLEANER 0002 1INTERCOOLER 0003 1 0005 1

1701

17700CLEANER ASSY, AIR

main17700-52050iF33AFTV..FJA310202112-202203

main17700-52051iF33AFTV..FJA310202411

17701CASE SUB-ASSY, AIR CLEANER

main17701-52050iF33AFTV..FJA310202411

main17701-70160iV35AFTS..VJA310202112-202411

17709INLET SUB-ASSY, AIR CLEANER

main17709-52010iF33AFTV..FJA310202112-202411

17710BGROMMET

main90480-14021×8iF33AFTV..FJA310202411

17710KCOLLAR(FOR AIR CLEANER)

main90387-07016×8iF33AFTV..FJA310202411

17735CAP, AIR CLEANER

main17735-52010iF33AFTV..FJA310202112-202203

main17735-52011iF33AFTV..FJA310202411

main17735-70030iV35AFTS..VJA310,VJH310202411

NO.1

main17735-70040iV35AFTS..VJA310202112-202411

NO.2

17765STAY, AIR CLEANER, NO.1

main17765-25010×3iF33AFTV..FJA310202112-202411

17769SUPPORT, AIR CLEANER

main17769-25030×3iF33AFTV..FJA310202411

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-52020iF33AFTV..FJA310202112-202203

main17801-52021iF33AFTV..FJA310202204-202411

main17801-70060×2iV35AFTS..VJA310,VJH310202411

17805CONNECTOR SUB-ASSY, INTAKE AIR

main17805-70100iV35AFTS..VJA310,VJH310202411

main17806-52010iF33AFTV..FJA310202112-202411

17881HOSE, AIR CLEANER, NO.1

main17881-52030iF33AFTV..FJA310202112-202201

main17881-52031iF33AFTV..FJA310202411

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-11000iF33AFTV..FJA310202411

17881CCLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10930iF33AFTV..FJA310202411

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-24010×2iV35AFTS..VJA310,VJH310202411

main22204-30030iF33AFTV..FJA310202411

9009900289

main90099-00289

9011906953

main90119-06953

17 parts on this diagram · 4 diagrams in section
