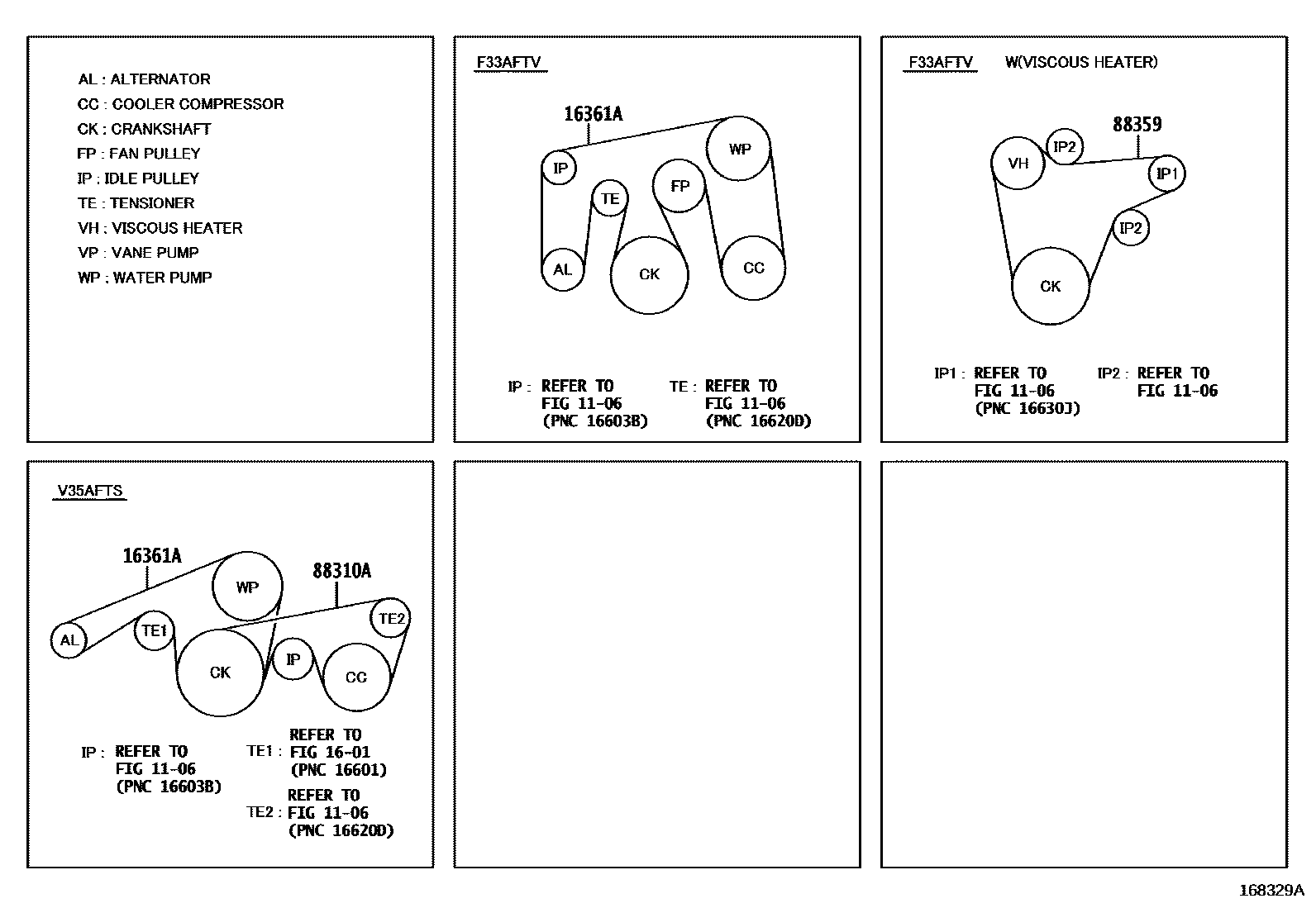

792270
›
V-BELT
V-BELT
1106
1601
16361A
BELT, V(FOR FAN & ALTERNATOR)
main
90916-02774
i
F33AFTV..FJA310
202112-202411
main
90916-02776
i
V35AFTS..VJA310,VJH310
202112-202411
88310A
BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
main
90916-02750
i
VJA310
202112-202411
L=1148
88359
BELT, V(FOR VISCOUS HEATER)
main
99364-H1390
i
FJA310..EUR
202112-202411
5 parts on this diagram · 1 diagram in section
