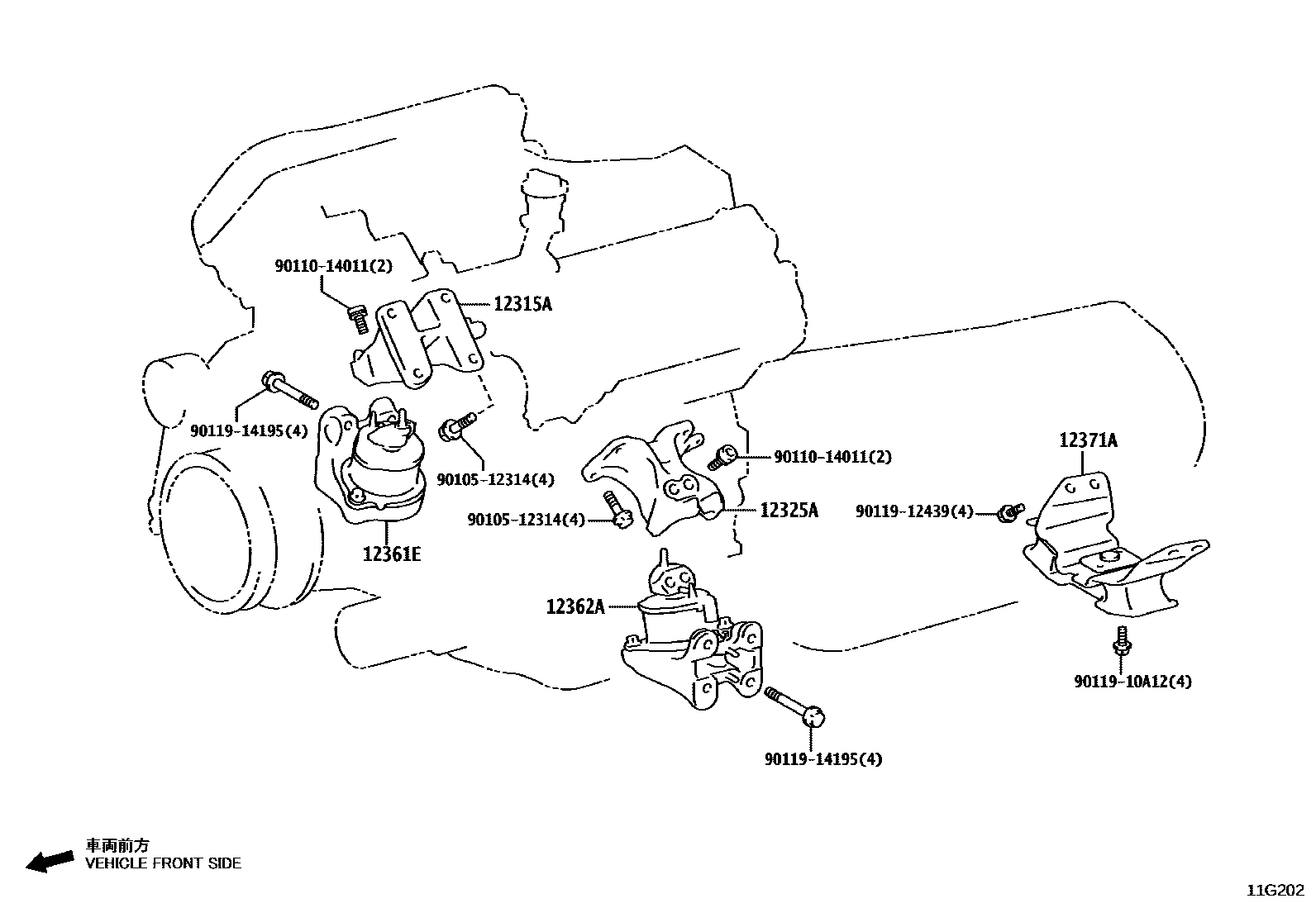

MOUNTING

0001 1 0002 1 0003 1

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-70160iV35AFTS..VJA310202112-202411

main12315-70170iV35AFTS..VJA310,VJH310202411

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-52041iF33AFTV..FJA310202112-202411

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-52021iF33AFTV..FJA310202112-202410

main12325-62040iF33AFTV..FJA310202410-202411

12361EINSULATOR, ENGINE MOUNTING, FRONT RH

main12361-52043iF33AFTV..FJA310202112-202411

main12361-70293iV35AFTS..VJA310202112-202409

main12361-70340iV35AFTS..VJA310,VJH310202410-202411

12362AINSULATOR, ENGINE MOUNTING, FRONT LH

main12362-52013iF33AFTV..FJA310202112-202411

main12362-70023iV35AFTS..VJA310202112-202409

main12362-70040iV35AFTS..VJA310,VJH310202410-202411

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-70130iV35AFTS..VJA310202112-202410

main12371-70140iV35AFTS..VJA310202410-202411

9010512314

main90105-12314

9011014011

main90110-14011

9011910A12

main90119-10A12

9011912439

main90119-12439

9011914195

main90119-14195

11 parts on this diagram · 3 diagrams in section
