TIMING GEAR COVER & REAR END PLATE

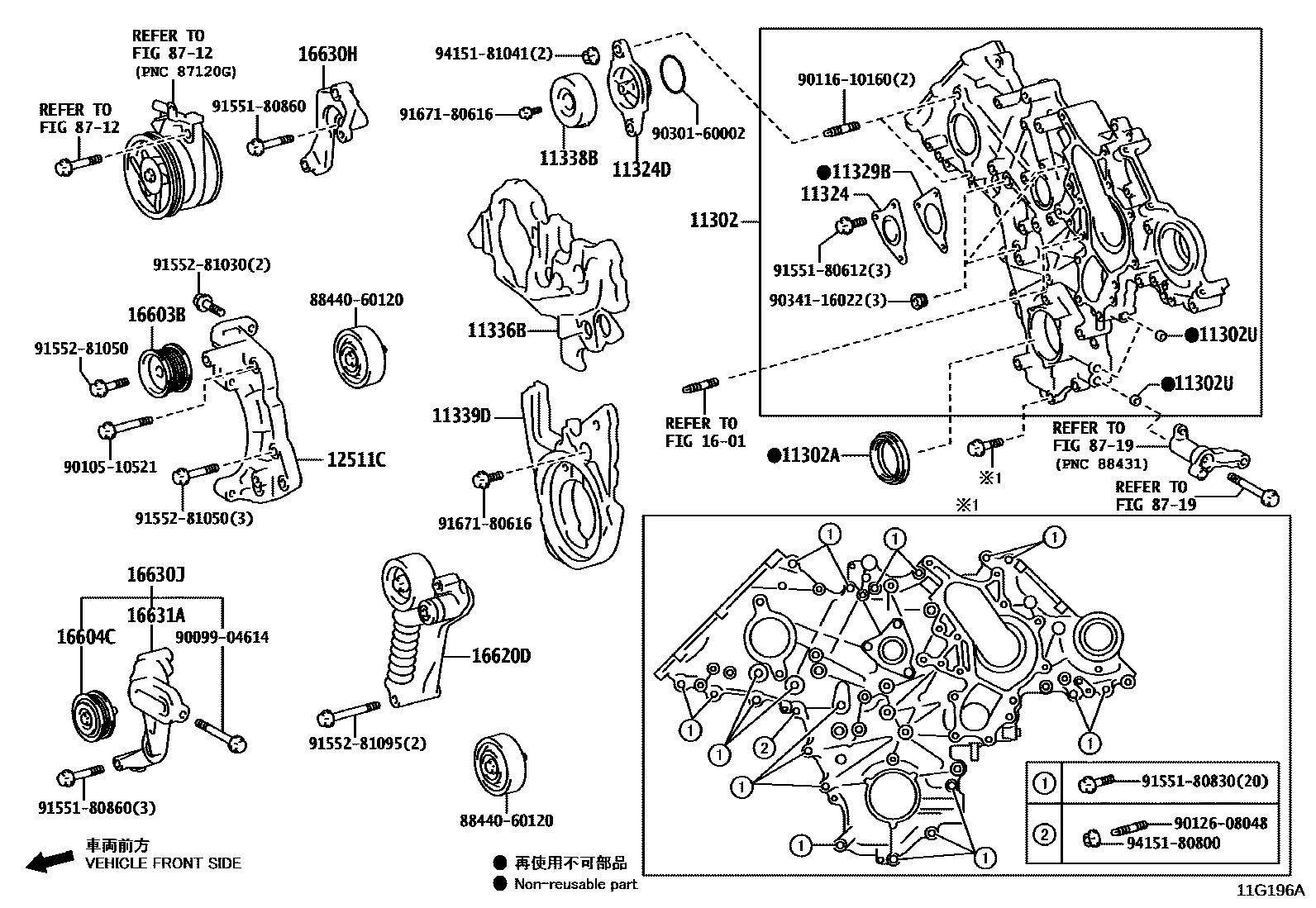

Parts diagram

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-52020i202112-202411

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-51014i202112-202411

11302UPIN, RING

main90253-11006i202112-202411

11324PLATE, TIMING CHAIN COVER

main11324-11010i202112-202411

main11324-70030i202112-202411

11324DPLATE, TIMING CHAIN COVER, NO.2

main11324-52010i202112-202411

11329BGASKET, TIMING CHAIN COVER, NO.2

main11329-11020i202112-202411

11336BINSULATOR, TIMING CHAIN COVER

main11336-52010i202112-202411

11338GASKET, TIMING CHAIN COVER, NO.2

main15691-52010i202112-202411

11338BINSULATOR, TIMING GEAR CASE, NO.3

main11338-52010i202112-202411

11339DINSULATOR, TIMING CHAIN COVER, NO.2

main11339-52010i202112-202411

12511CBRACKET, ALTERNATOR

main12501-52010i202112-202411

1601

16603BPULLEY SUB-ASSY, IDLER

main16603-51010i202112-202411

main16603-70030i202112-202411

16604CPULLEY SUB-ASSY, IDLER, NO.2

main88440-60090i202112-202411

16620DTENSIONER ASSY, V-RIBBED BELT

main16620-52010i202112-202411

main16620-70050i202112-202411

16630HPULLEY ASSY, IDLER

main88420-60370i202112-202411

16630JPULLEY ASSY, IDLER, NO.2

main88420-60380i202112-202411

16631ABRACKET, IDLER PULLEY

main88444-60170i202112-202411

8712

8719

8844060120RELAY ASSY, COOLER (FOR IGNITION SWITCH)

main88440-60120

9009904614

main90099-04614

9010510521

main90105-10521

9011610160

main90116-10160

9012608048

main90126-08048

9030160002

main90301-60002

9034116022

main90341-16022

9155180612

main91551-80612

9155180830

main91551-80830

9155180860

main91551-80860

9155281030

main91552-81030

9155281050

main91552-81050

9155281095

main91552-81095

9167180616

main91671-80616

9415180800

main94151-80800

9415181041

main94151-81041

36 parts on this diagram · 5 diagrams in section
