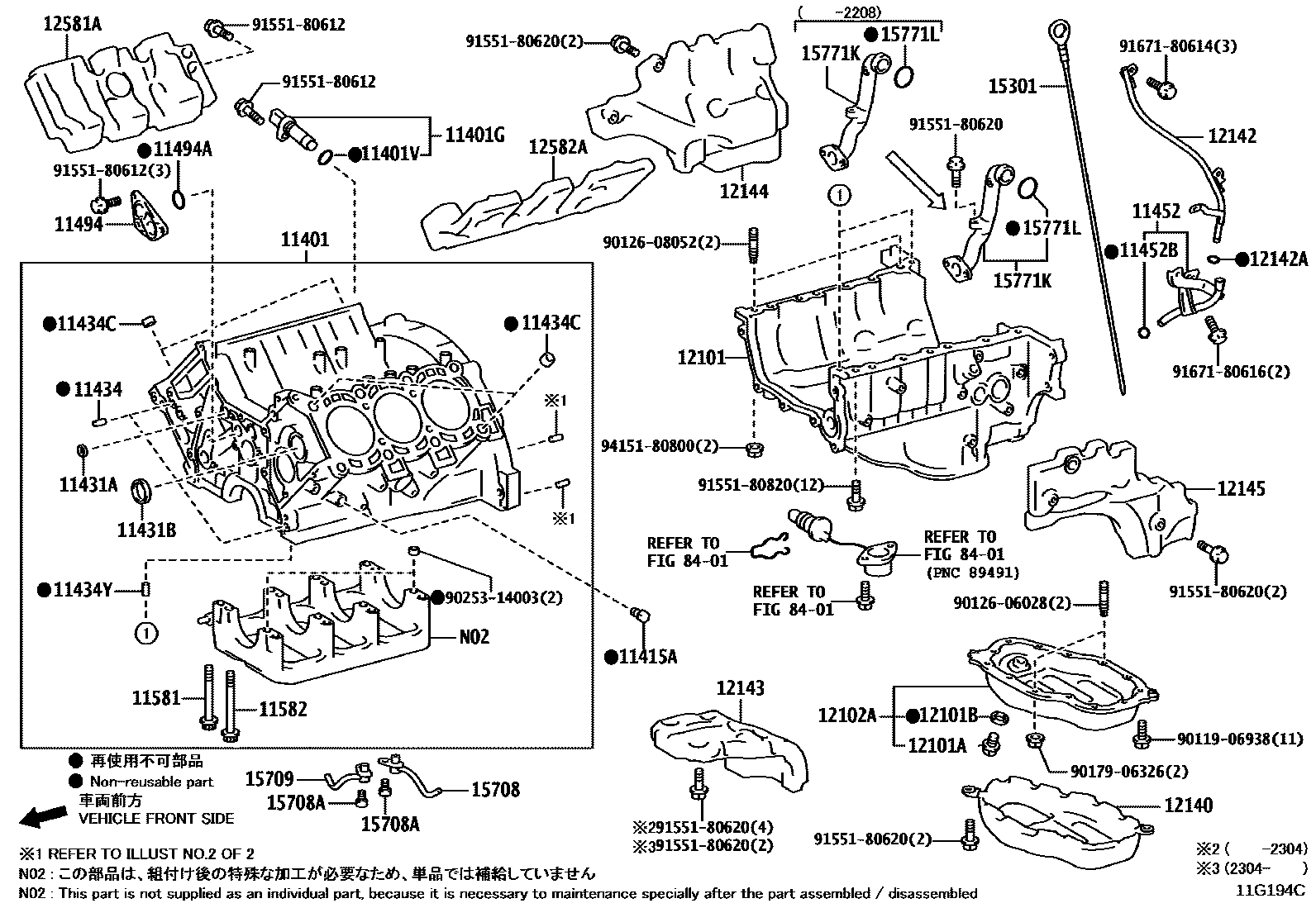

CYLINDER BLOCK
11401BLOCK SUB-ASSY, CYLINDER
11401GSENSOR, CRANK POSITION
11401VO-RING, CRANK POSITION SENSOR
11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
11434PIN, STRAIGHT(FOR TIMING CHAIN COVER)
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
L=12,OD=14
L=10.5,OD=15
11434YPIN, STRAIGHT(FOR OIL PAN)
11452GUIDE, OIL LEVEL GAGE
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
11494PLATE, OIL HOLE COVER
11494ARING, O(FOR OIL HOLE COVER)
11581BOLT, CRANKSHAFT BEARING CAP, NO.1
11582BOLT, CRANKSHAFT BEARING CAP, NO.2
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
12102APAN SUB-ASSY, OIL, NO.2
12140COVER, OIL PAN
12142GUIDE, OIL LEVEL GAGE, NO.2
12142ARING, O(FOR OIL LEVEL GAGE GUIDE, NO.2)
12143COVER, OIL PAN
12144SILENCER, OIL PAN COVER
12145SILENCER, OIL PAN COVER, NO.2
12581AINSULATOR, CYLINDER BLOCK, NO.1
12582AINSULATOR, CYLINDER BLOCK, NO.2
15301GAGE SUB-ASSY, OIL LEVEL
15708NOZZLE SUB-ASSY, OIL, NO.1
15708ABOLT, OIL NOZZLE
15709NOZZLE SUB-ASSY, OIL, NO.2
15771KPIPE, OIL, NO.1
15771LRING, O(FOR OIL PIPE NO.1)
8401
9011906938
main90119-06938
9012606028
main90126-06028
9012608052
main90126-08052
9017906326
main90179-06326
9025314003
main90253-14003
9155180612
main91551-80612
9155180620
main91551-80620
9155180820
main91551-80820
9167180614
main91671-80614
9167180616
main91671-80616
9415180800
main94151-80800
45 parts on this diagram · 5 diagrams in section
