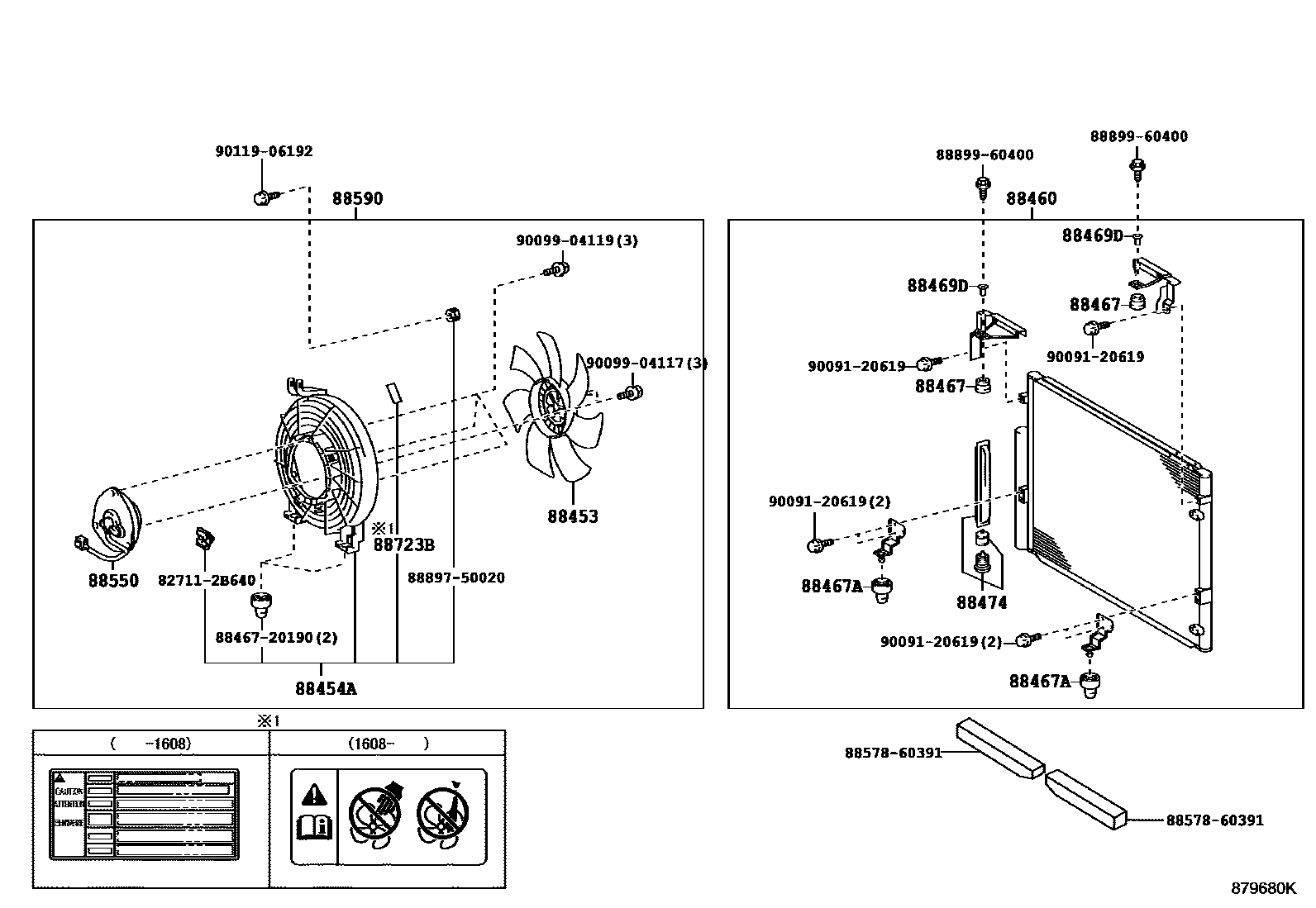

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1CONDENSER & FUN SHROUD 0002 1FRONT DUAL,W(COOL BOX) 0003 1FRONT SINGLE,W(COOL BOX) 0004 1FRONT SINGLE,W/O(COOL BOX) 0005 1FRONT DUAL 0006 1FRONT SINGLE,W(COOL BOX) 0007 1FRONT SINGLE,W/O(COOL BOX) 0008 1FRONT DUAL 0009 1FRONT SINGLE,W(COOL BOX) 0010 1FRONT SINGLE,W/O(COOL BOX) 0011 1W/O(REAR) & W/(COOL BOX) 0012 1REAR,W(COOL BOX) 0013 1REAR,W/O(COOL BOX)

88453FAN, COOLING (FOR CONDENSER)

main88453-60020iVDJ200..05S..VXR201008-202104

main88453-60020iURJ202,VDJ200..08S201201-202103

AIR CONDITIONER-FR AUTO DUAL CONTROL

main88453-60020iURJ202..VXR;VDJ200..RHD..VX;VDJ200..LHD..08S201508-202104

AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)

88454ASHROUD, FAN

main88454-60050iUZJ200,VDJ200..08S201008-201201

main88454-60050iURJ202,VDJ200..08S201201-201209

AIR CONDITIONER-FR AUTO DUAL CONTROL

main88454-60051iURJ202,VDJ200..08S201209-201608

AIR CONDITIONER-FR AUTO DUAL CONTROL

sub88454-60052

main88454-60051iURJ202,VDJ200..08S201508-201608

AIR CONDITIONER-FR AUTO DUAL CONTROL&REAR NO.2 SEAT-WITHOUT

sub88454-60052

main88454-60051iURJ202,VDJ200..08S201508-201608

AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)

sub88454-60052

main88454-60052iURJ202..VXR;VDJ200..RHD..VX;VDJ200..LHD..08S201608-202103

AIR CONDITIONER-FR AUTO DUAL CONTROL

main88454-60052iURJ202..VXR;VDJ200..RHD..VX;VDJ200..LHD..08S201608-202104

AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)

main88454-60052iVDJ200..05S..VXR201908-202104

88460CONDENSER ASSY, COOLER

main88460-60400iUZJ200,VDJ200200709-202006

main88460-60570iVDJ200..08S;URJ202..VXR;URJ202..05S202006-202104

88467CUSHION, COOLER CONDENSER, NO.1

main88467-12180iUZJ200,VDJ200200709-202008

88467ACUSHION, COOLER CONDENSER, NO.2

main88467-60010iUZJ200,VDJ200200709-202008

88469DCOLLAR, CONDENSER BRACKET, NO.1

main88469-52010iUZJ200,VDJ200200709-202008

88474DRYER, COOLER

main88474-12030iUZJ200,VDJ200200709-202104

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-60110iUZJ200,VDJ200..08S201008-202104

main88550-60110iURJ202,VDJ200..08S201201-202103

AIR CONDITIONER-FR AUTO DUAL CONTROL

main88550-60110iURJ202..VXR;VDJ200..RHD..VX;VDJ200..LHD..08S201508-202104

AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)

88590BLOWER ASSY, W/SHROUD

main88590-60080iVDJ200..08S201201-201208

AIR CONDITIONER-FR AUTO DUAL CONTROL

sub88590-60081

main88590-60080iUZJ200,VDJ200..08S201008-201201

sub88590-60081

main88590-60081iURJ202,VDJ200..08S201209-201607

AIR CONDITIONER-FR AUTO DUAL CONTROL

sub88590-60082

main88590-60081iURJ202,VDJ200..08S201508-201607

AIR CONDITIONER-FR AUTO DUAL CONTROL&REAR NO.2 SEAT-WITHOUT

sub88590-60082

main88590-60081iURJ202,VDJ200..08S201508-201607

AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)

sub88590-60082

main88590-60082iURJ202..VXR;VDJ200..RHD..VX;VDJ200..LHD..08S201608-202103

AIR CONDITIONER-FR AUTO DUAL CONTROL

main88590-60082iURJ202..VXR;VDJ200..RHD..VX;VDJ200..LHD..08S201608-202104

AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)

main88590-60082iVDJ200..05S..VXR201908-202104

88723BLABEL, COOLER SERVICE CAUTION

main16793-28020iUZJ200,VDJ200..08S201008-201201

sub16793-36040

main16793-28020iURJ202,VDJ200..08S201201-201209

AIR CONDITIONER-FR AUTO DUAL CONTROL

sub16793-36040

main16793-31070iVDJ200..08S201608-202104

AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)

main16793-31070iURJ202..VXR;VDJ200..RHD..VX;VDJ200..LHD..08S201608-202103

AIR CONDITIONER-FR AUTO DUAL CONTROL

main16793-31070iVDJ200..05S..VXR201908-202104

main16793-38010iVDJ200..LHD..08S201508-201608

AIR CONDITIONER-FR AUTO DUAL CONTROL&REAR NO.2 SEAT-WITHOUT

sub16793-31070

main16793-38010iVDJ200..LHD..08S201508-201608

AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)

sub16793-31070

main16793-38010iURJ202,VDJ200..05S201209-201608

AIR CONDITIONER-FR AUTO DUAL CONTROL

sub16793-31070

827112B640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B640

8846720190CUSHION, COOLER CONDENSER, NO.1

main88467-20190

8857860391PAKING, COOLER AIR DUCT

main88578-60391

8889750020VALVE, COOLER MAGNET

main88897-50020

8889960400COVER, EVAPORATOR

main88899-60400

9009120619

main90091-20619

9009904117

main90099-04117

9009904119

main90099-04119

9011906192

main90119-06192

19 parts on this diagram · 13 diagrams in section
