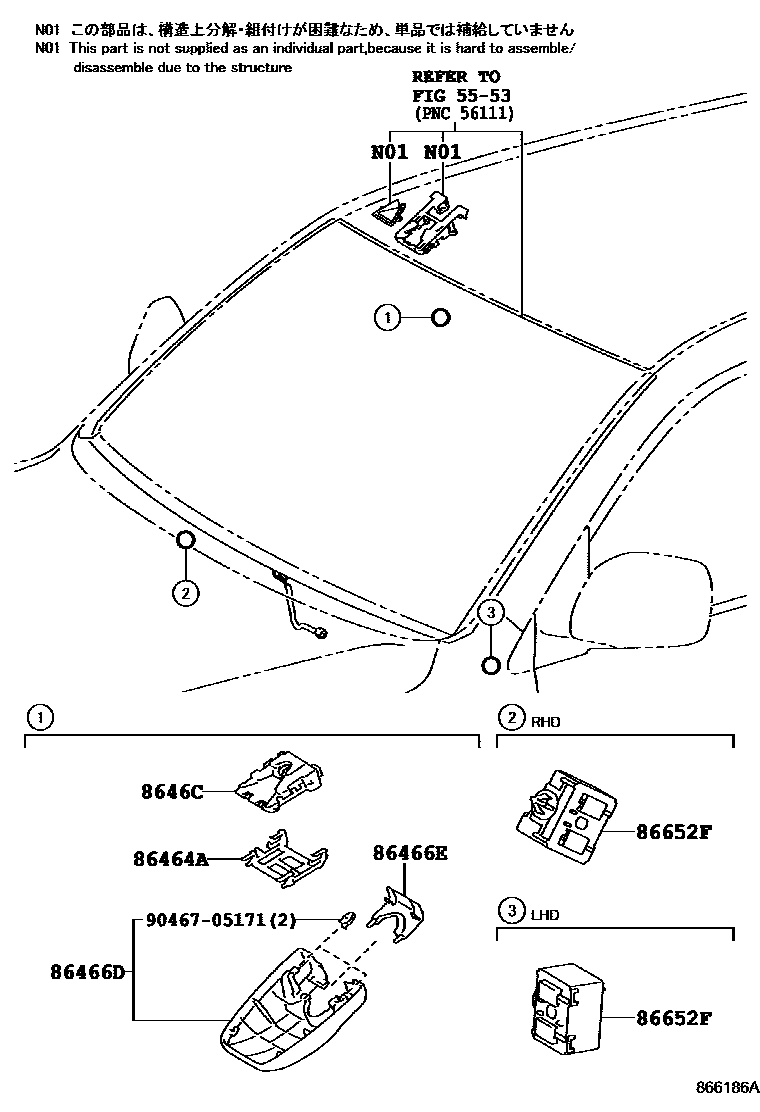

PRE-COLLISION SYSTEM

0001 1 0002 1

5553

86464ALATCH, FORWARD RECOGNITION

main86464-48011iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S201508-202104

PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-60010iURJ202,VDJ200201508-201701

PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE

main86466-60011iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S201701-202104

PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-60020iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S201508-202104

PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE

8646CCAMERA, FORWARD RECOGNITION

main8646C-60010iURJ202,VDJ200201508-201608

PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE

main8646C-60030iURJ202,VDJ200201608-201702

PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE

main8646C-60031iURJ202,VDJ200201702-201708

PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE

main8646C-60032iURJ202,VDJ200201708-201908

PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE

main8646C-60033iVDJ200..08S;URJ202..VXR;URJ202..05S201908-202104

PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE

86652FBUZZER, SKID CONTROL

main86652-50010iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S201508-202104

PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE

9046705171

main90467-05171

7 parts on this diagram · 2 diagrams in section
