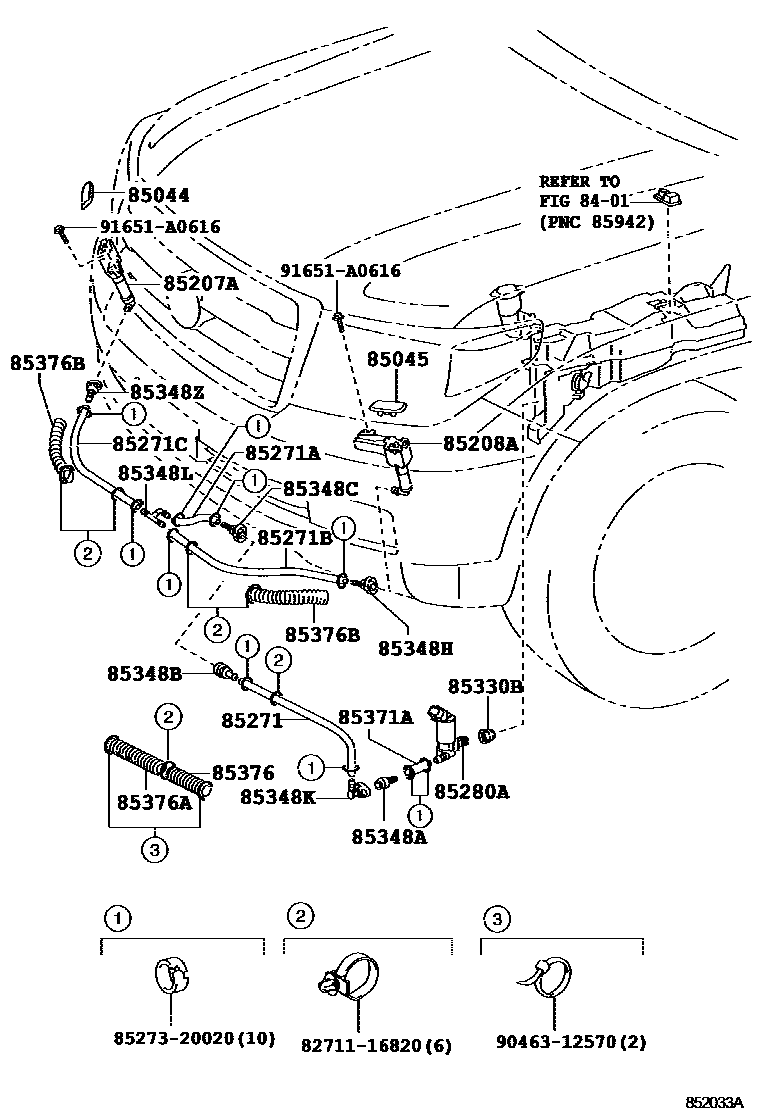

HEADLAMP CLEANER
8401
85044NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH
SUPER WHITE 2,040
HEADLAMP CLEANER-WITH,SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
HEADLAMP CLEANER-WITH,SILVER ME.,1F7
GRAY ME.,1G3
HEADLAMP CLEANER-WITH,GRAY ME.,1G3
BLACK,202
HEADLAMP CLEANER-WITH,BLACK,202
DK. RED M.M.,3Q3
HEADLAMP CLEANER-WITH,DK. RED M.M.,3Q3
BEIGE M.M.,4R3
HEADLAMP CLEANER-WITH,BEIGE M.M.,4R3
GOLD M.M.,5A5
HEADLAMP CLEANER-WITH,GOLD M.M.,5A5
HEADLAMP CLEANER-WITH,GREEN M.M.,6V2
GREEN M.M.,6V2
GRAYISH BLUE ME.,8R3
HEADLAMP CLEANER-WITH,GRAYISH BLUE ME.,8R3
85045NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH
HEADLAMP CLEANER-WITH,SUPER WHITE 2,040
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
HEADLAMP CLEANER-WITH,SILVER ME.,1F7
GRAY ME.,1G3
HEADLAMP CLEANER-WITH,GRAY ME.,1G3
BLACK,202
HEADLAMP CLEANER-WITH,BLACK,202
HEADLAMP CLEANER-WITH,DK. RED M.M.,3Q3
DK. RED M.M.,3Q3
BEIGE M.M.,4R3
HEADLAMP CLEANER-WITH,BEIGE M.M.,4R3
GOLD M.M.,5A5
HEADLAMP CLEANER-WITH,GOLD M.M.,5A5
GREEN M.M.,6V2
HEADLAMP CLEANER-WITH,GREEN M.M.,6V2
GRAYISH BLUE ME.,8R3
HEADLAMP CLEANER-WITH,GRAYISH BLUE ME.,8R3
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
HEADLAMP CLEANER-WITH
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
HEADLAMP CLEANER-WITH
85271HOSE, HEADLAMP CLEANER, NO.1
HEADLAMP CLEANER-WITH
L=900
85271AHOSE, HEADLAMP CLEANER, NO.2
L=170
L=170,HEADLAMP CLEANER-WITH
L=100
L=120
85271BHOSE, HEADLAMP CLEANER, NO.3
L=600
L=760
L=760,HEADLAMP CLEANER-WITH
L=670,HEADLAMP CLEANER-WITHOUT
L=670
85271CHOSE, HEADLAMP CLEANER, NO.4
L=65
L=1100,HEADLAMP CLEANER-WITHOUT
L=1100
L=900
L=1320(*H,L=815),HEADLAMP CLEANER-WITH
L=1320(*H,L=815)
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
HEADLAMP CLEANER-WITH
85330BBUSH, HEADLAMP CLEANER WASHER JAR
HEADLAMP CLEANER-WITH
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
HEADLAMP CLEANER-WITH
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
HEADLAMP CLEANER-WITH
85348CJOINT, HEADLAMP CLEANER HOSE, NO.3
HEADLAMP CLEANER-WITH
85348HJOINT, HEADLAMP CLEANER HOSE, NO.4
HEADLAMP CLEANER-WITH
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
HEADLAMP CLEANER-WITH
85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2
HEADLAMP CLEANER-WITH
85348ZJOINT, HEADLAMP CLEANER HOSE, NO.5
HEADLAMP CLEANER-WITH
85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
L=40
L=40,HEADLAMP CLEANER-WITH
L=40,INDIA SPEC
85376PROTECTOR, HEADLAMP CLEANER HOSE, NO.1
HEADLAMP CLEANER-WITH
85376APROTECTOR, HEADLAMP CLEANER HOSE, NO.2
HEADLAMP CLEANER-WITH
85376BPROTECTOR, HEADLAMP CLEANER HOSE, NO.3
HEADLAMP CLEANER-WITH
8271116820WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16820
8527320020CABLE SUB-ASSY, HEADLAMP CLEANER, LH
main85273-20020
9046312570
main90463-12570
91651A0616
main91651-A0616
26 parts on this diagram · 4 diagrams in section
