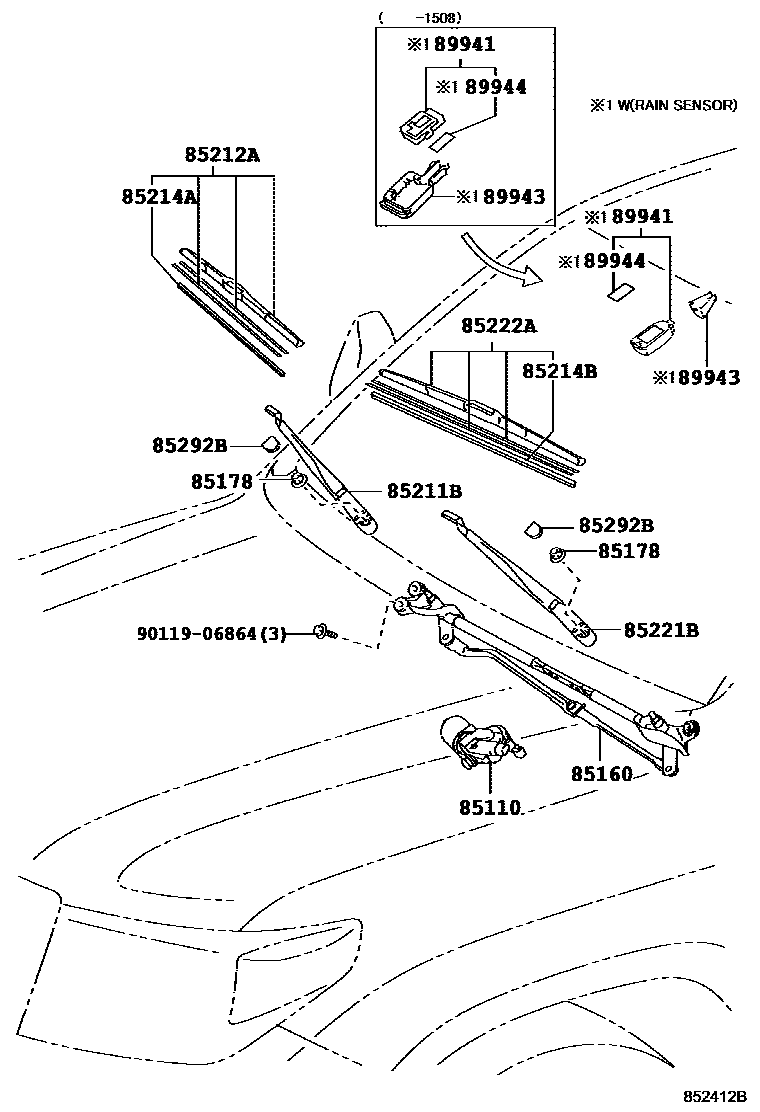

WINDSHIELD WIPER
85110MOTOR ASSY, WINDSHIELD WIPER
85178NUT (FOR FRONT WIPER ARM SETTING)
85211BARM, FRONT WIPER, RH
85212ABLADE, FR WIPER, RH
85214ARUBBER, WIPER, RH
85214BRUBBER, WIPER, LH
85221BARM, FRONT WIPER, LH
85222ABLADE, FR WIPER, LH
85292BCAP, FRONT WIPER ARM HEAD
89941SENSOR, RAIN
sub89941-50081
INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)
MOON ROOF-WITH(REMOTE CONTROL)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)
MOON ROOF-WITH(*SERT & REMOTE CONTROL)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)
89943COVER, RAIN SENSOR
INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)
MOON ROOF-WITH(REMOTE CONTROL)
MOON ROOF-WITH(*SERT & REMOTE CONTROL)
MOON ROOF-WITH(REMOTE CONTROL)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)
89944TAPE, RAIN SENSOR
sub89944-50021
INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)
MOON ROOF-WITH(REMOTE CONTROL)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)
MOON ROOF-WITH(*SERT & REMOTE CONTROL)&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)
9011906864
main90119-06864
14 parts on this diagram · 2 diagrams in section
