ABS & VSC

8401

86652ABUZZER ASSY, SKID CONTROL

main86652-50010iUZJ200,VDJ200¥2,400200709-201201

88266BCLAMP, SKID CONTROL SENSOR, NO.1

main88266-60580iURJ202,VDJ200¥280200709-202104

89180SENSOR ASSY, YAWRATE

main89180-60100iUZJ200,VDJ200¥120,000200709-201508

89516WIRE, SKID CONTROL SENSOR

main89516-60110iUZJ200,VDJ200¥5,100200709-202104

RH

main89516-60120iVDJ200..05S;URJ202..08S..VX;VDJ200..RHD..VXR¥6,300200709-202104

LH

89516BWIRE, SKID CONTROL SENSOR

main89516-60130iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S¥7,200200709-202104

89542SENSOR, SPEED, FRONT RH

main89542-60050iUZJ200,VDJ200¥15,000200709-202104

89543SENSOR, SPEED, FRONT LH

main89543-60050iUZJ200,VDJ200¥15,000200709-202104

89545SENSOR, SPEED, REAR RH

main89542-60050iUZJ200,VDJ200¥15,000200709-202104

89546SENSOR, SPEED, REAR LH

main89543-60050iUZJ200,VDJ200¥15,000200709-202104

91551A0616

main91551-A0616¥60

9155380612

main91553-80612¥60

9155380812

main91553-80812¥80

9167180816

main91671-80816¥80

9167380814

main91673-80814¥80

91673A0612

main91673-A0612¥60

92112C0616

main92112-C0616¥70

9415010641

main94150-10641¥60

9415180800

main94151-80800¥80

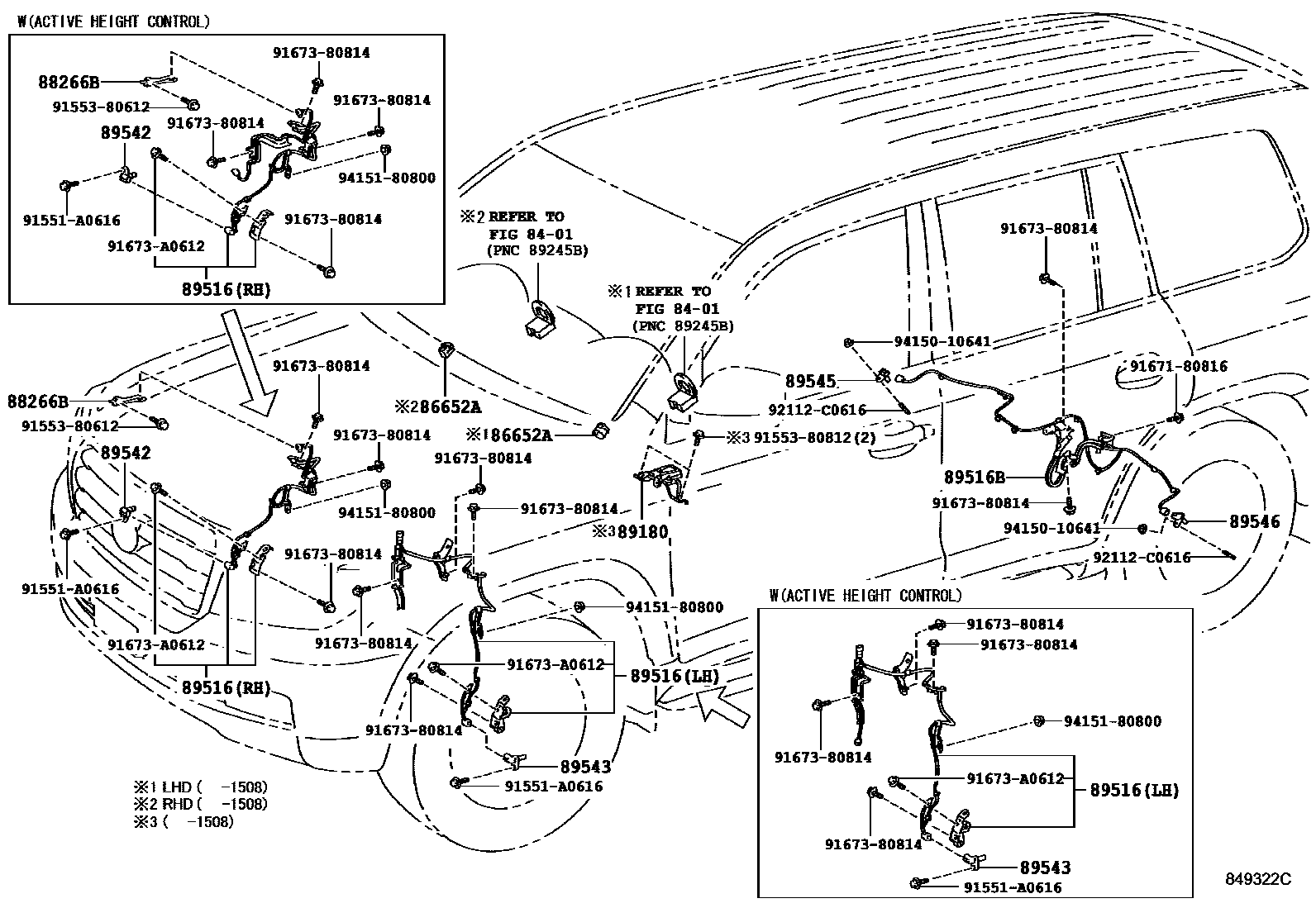

19 parts on this diagram · 1 diagram in section
